Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> F DTC C1145, C1155, C1165, C1175 Wheel Speed Sensor Circuit Failure >> With Traction Control

With Traction Control

Test F1:

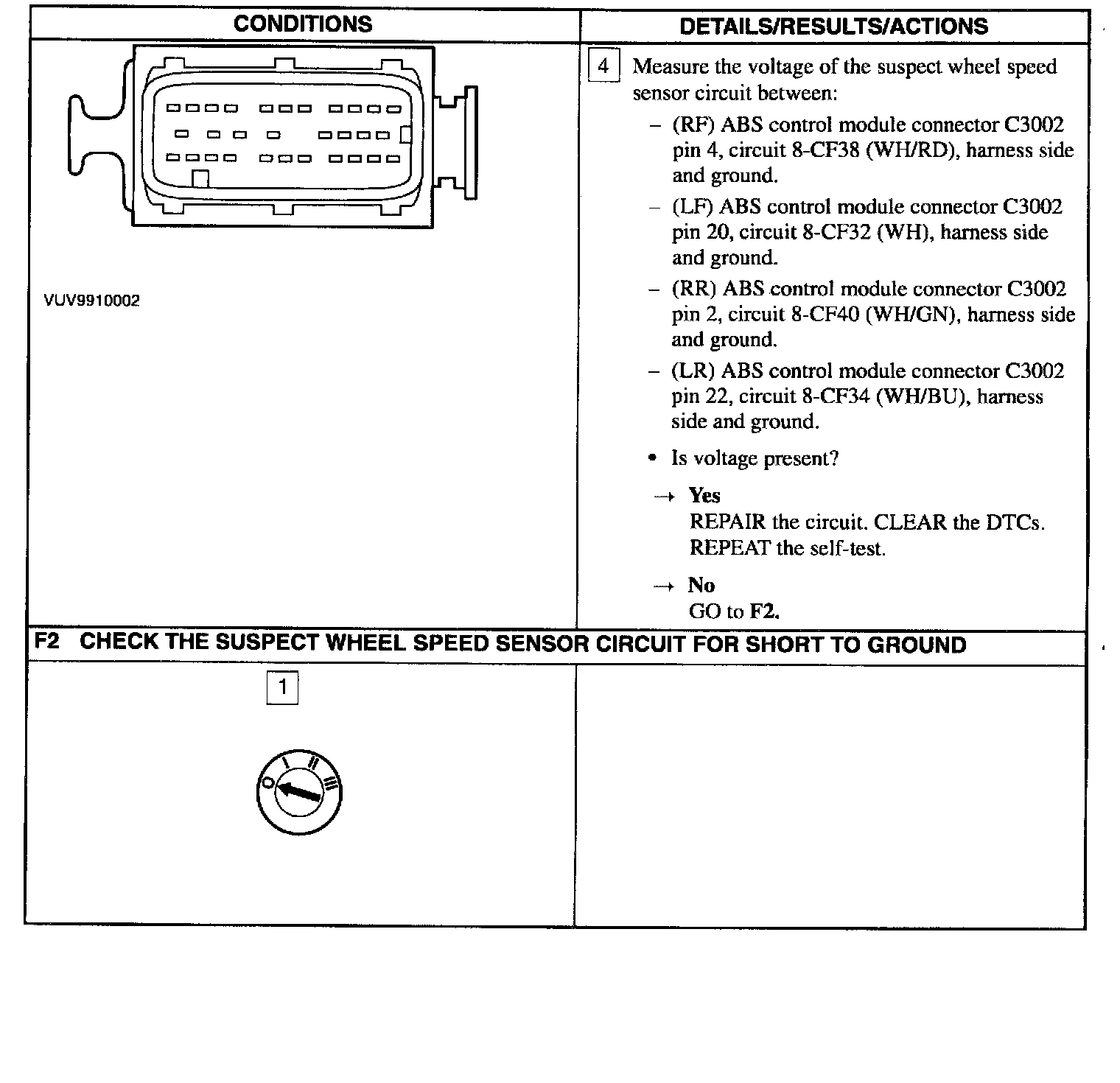

Test F1 - F2:

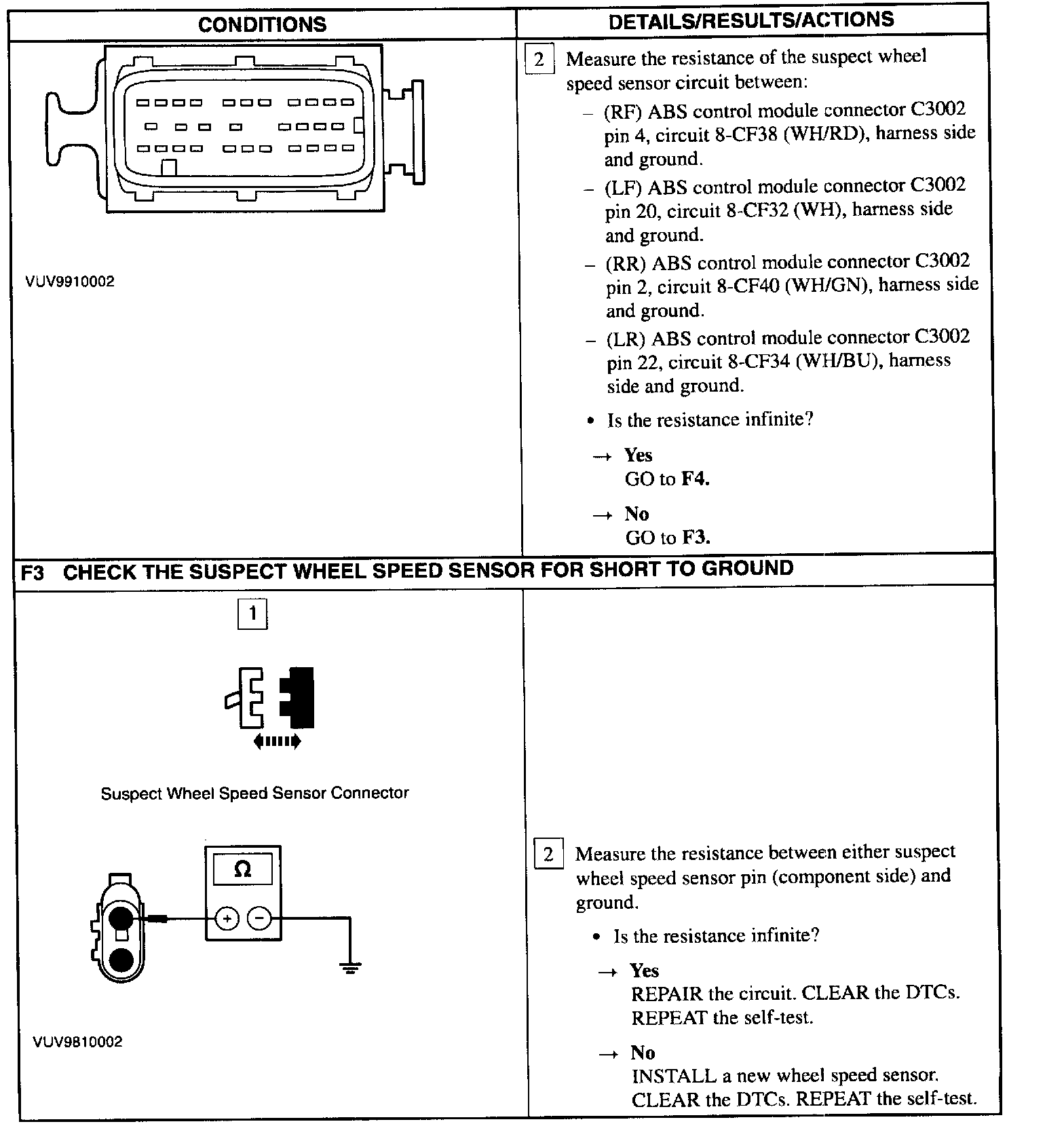

Test F2 - F3:




Test F4:

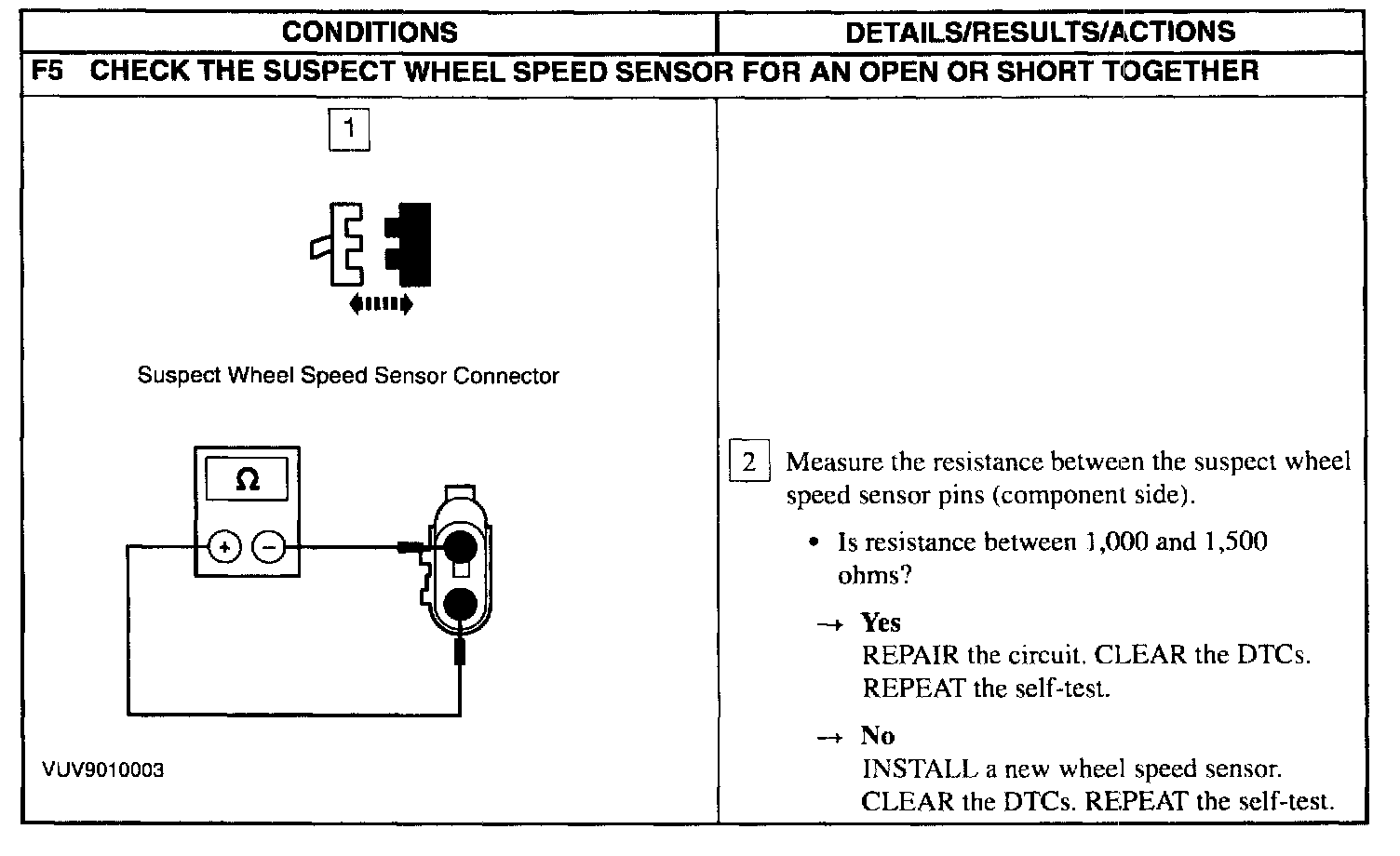

Test F5:
