Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
A Check Central Junction Box (CJB)
>>
With Traction Control
With Traction Control

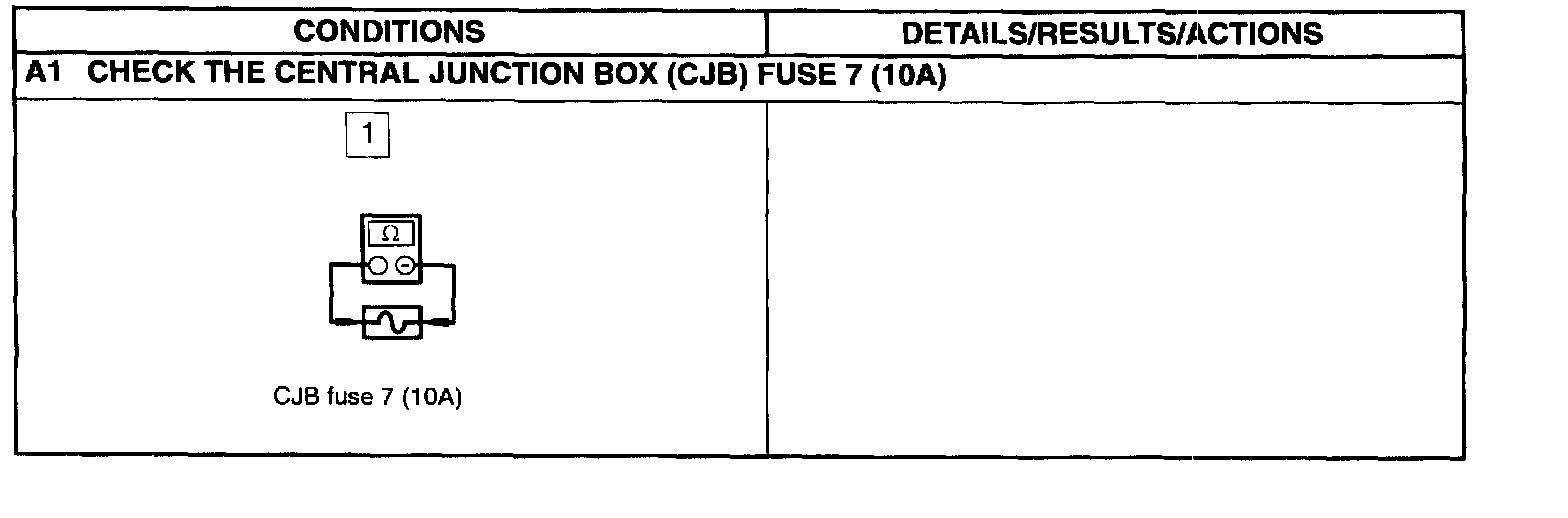

Test A1:

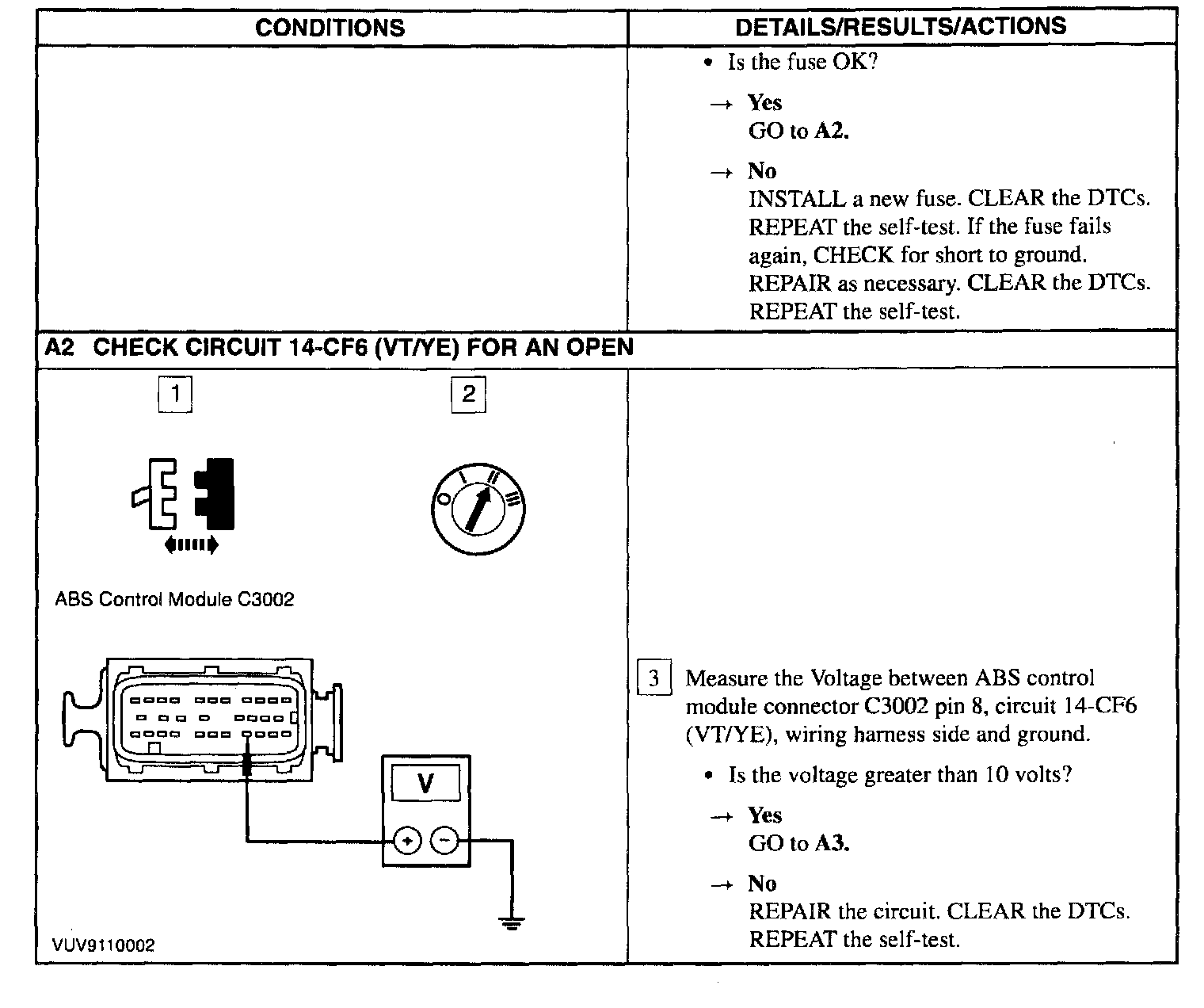

Test A1 - A2:

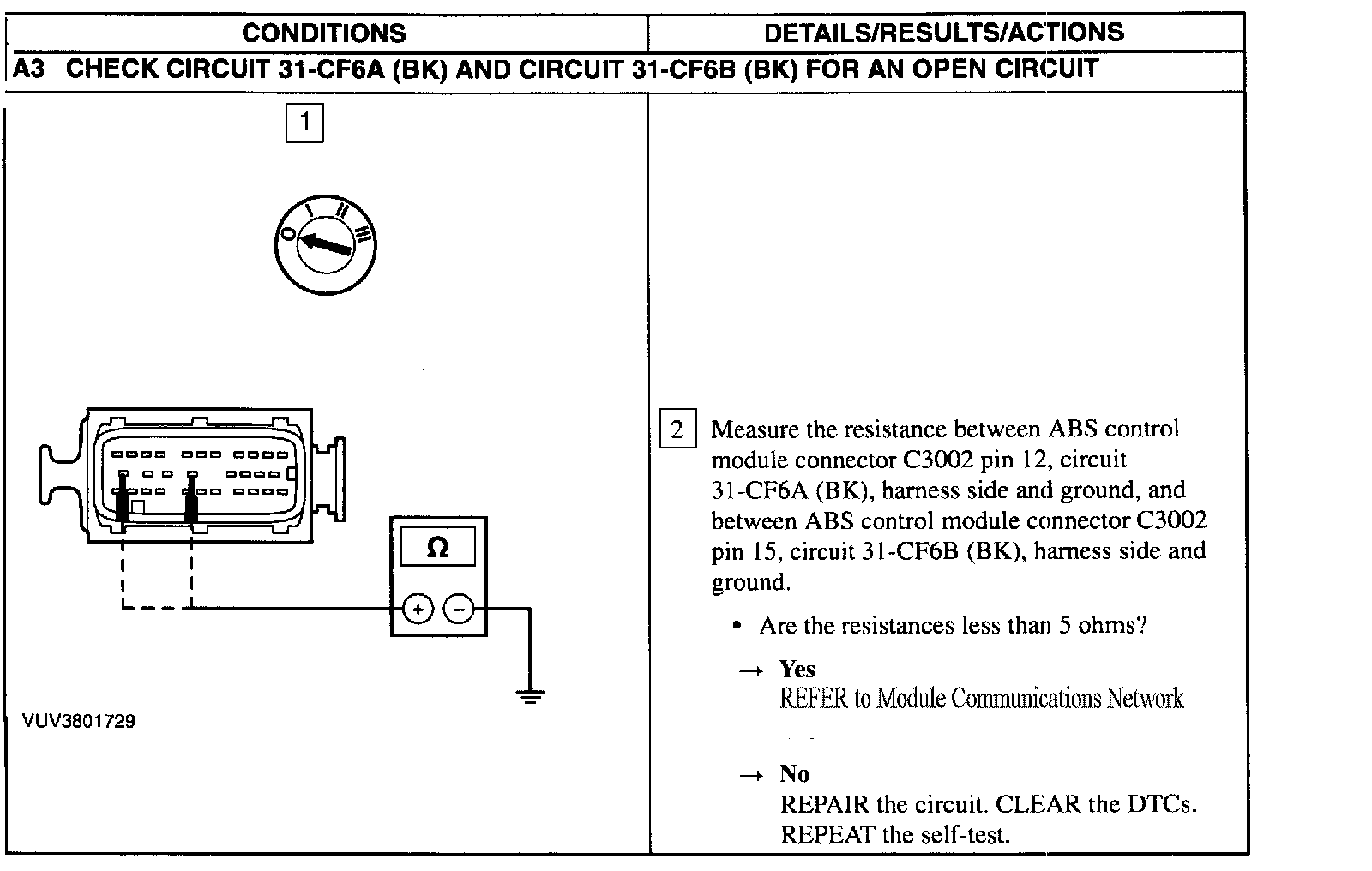

Test A3:
