Power Seat Switch: Service and Repair

REMOVAL
1. Remove the front seat.







2. Disconnect the wiring harness.
1. Detach the harness from the three retaining clips on the seat base.
2. Disconnect the electrical connectors.

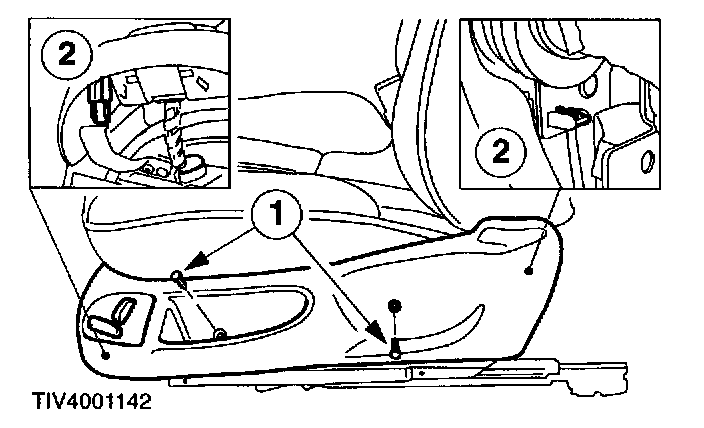

3. Remove the outer seat base trim.
1. Remove the retaining screws.
2. Release the front and rear retaining clips.

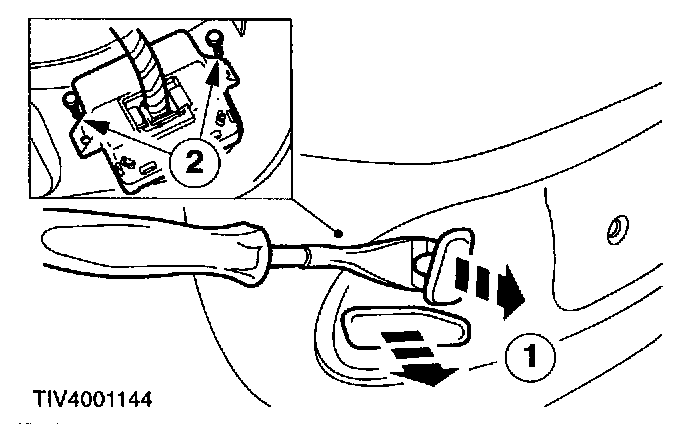

4. Remove the electric seat control switch.
1. Use a trim tool to lever off the control knobs.
2. Remove the two retaining screws.

INSTALLATION
1. To install, reverse the removal procedure.
