REMOVAL
1. Remove the front seat.

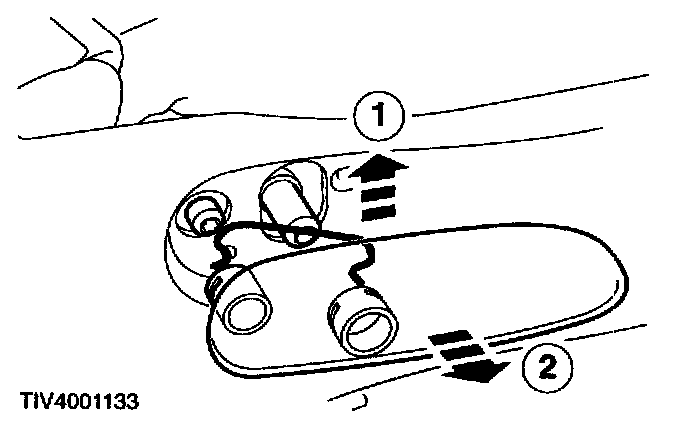

2. Remove the backrest adjust lever.
1. Pull the spring clip up to release the handle.
2. Remove the handle.

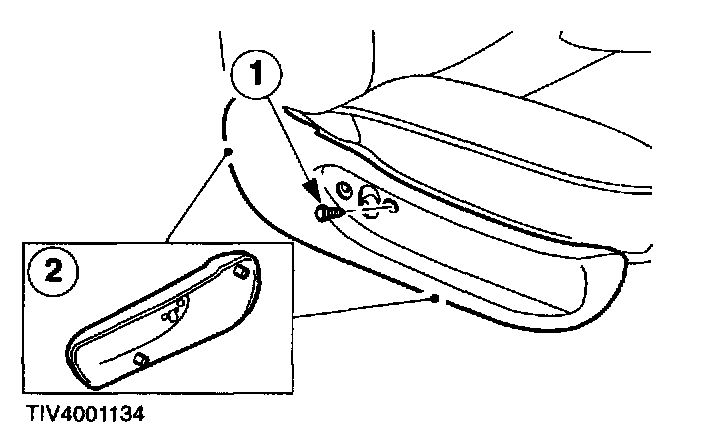

3. Remove the seat base outer trim panel.
1. Remove the retaining screw.
2. Pull the panel to release the two retaining dowels.

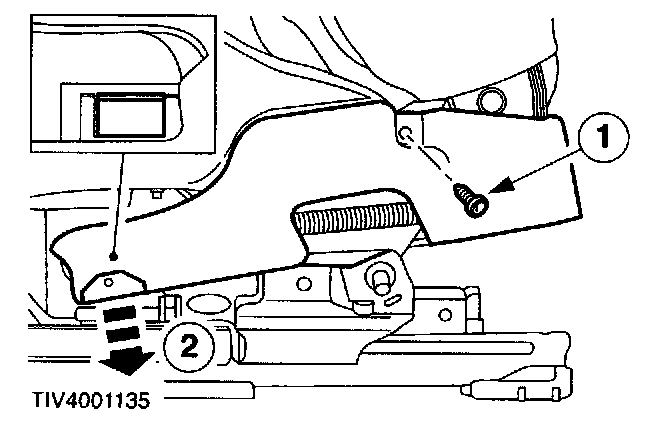

4. Remove the seat base inner trim panel.
1. Remove the retaining screw.
2. Detach the clip.

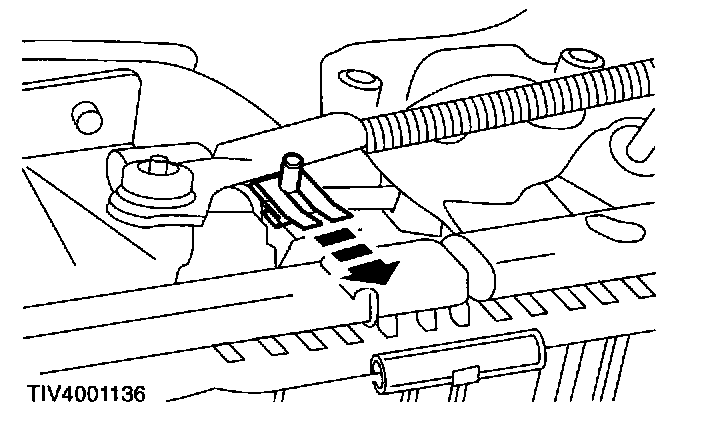

5. Detach the inner backrest release cable.

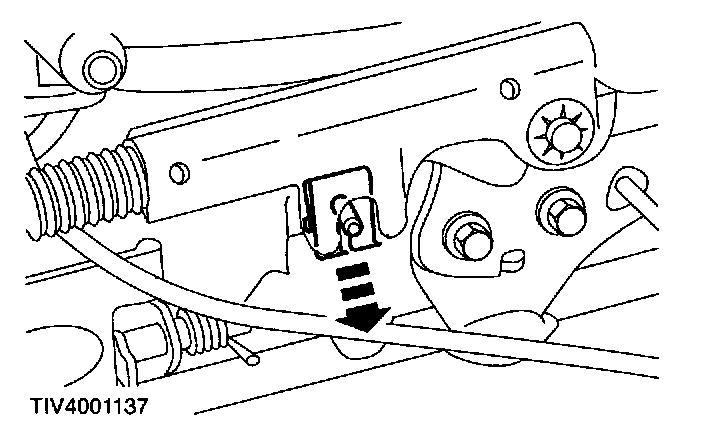

6. Detach the outer backrest release cable.

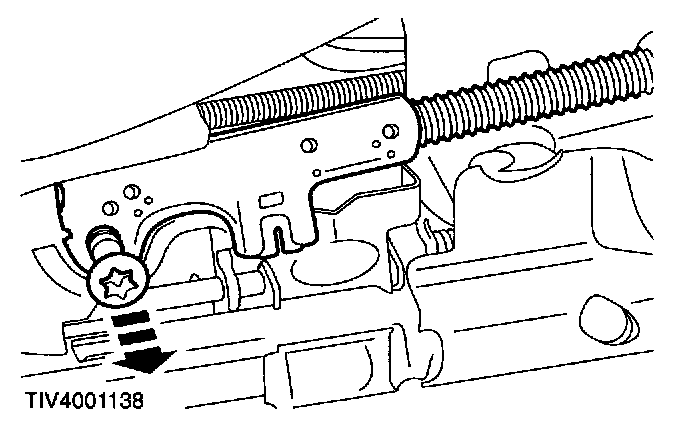

7. Detach the inner seat backrest spring assister.

CAUTION: Make sure the seat back is fully upright before proceeding to the next step.

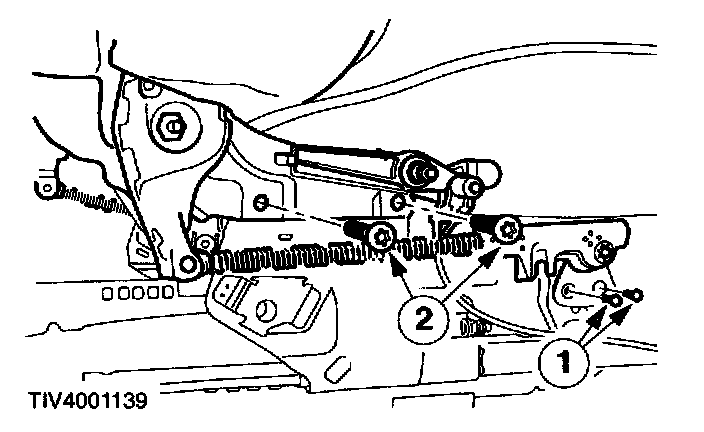

8. Remove the seat backrest.
1. Remove the two backrest spring assister retaining screws.
2. Remove the two Torx retaining screws.

INSTALLATION
1. To install, reverse the removal procedure.
