Electric

REMOVAL
1. Remove the front seat.







2. Detach the wiring harness.
1. Disconnect the harness from the three retaining clips on the seat base.
2. Disconnect the electrical connectors.







3. Remove the outer seat base trim.
1. Remove the retaining screws.
2. Release the front and rear retaining clips.

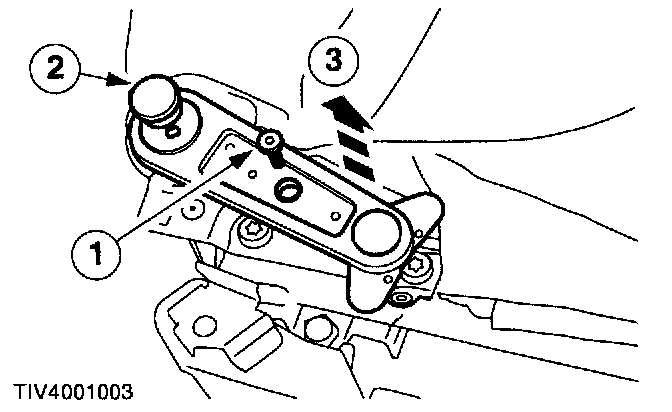

4. Remove the backrest adjuster assembly.
1. Remove the screw.
2. Remove the center cap.
3. Remove the adjuster assembly.

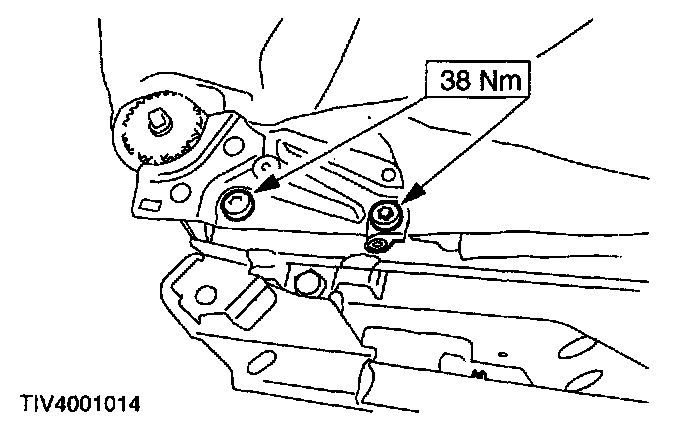

5. Remove the seat backrest.
^ Remove the two Torx retaining screws each side.







INSTALLATION
1. To install, reverse the removal procedure.
