Lumbar Support - Front Seat Backrest

REMOVAL
1. Disassemble the front seat backrest.

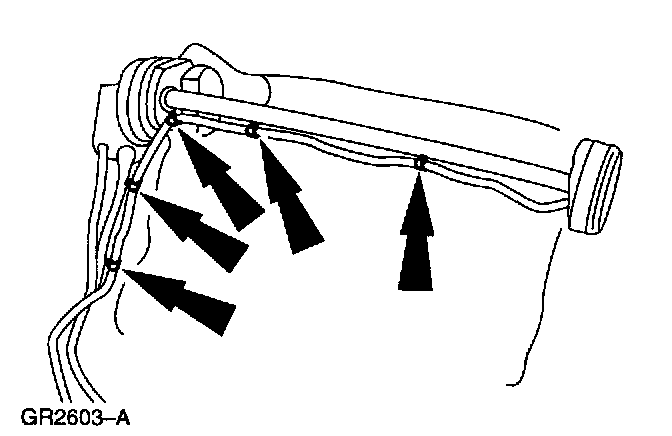

2. Cut the tie straps.

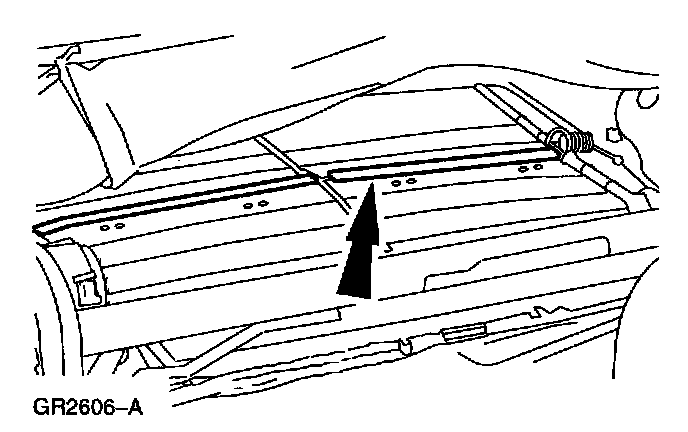

3. Detach the lumbar support from the spring frame assembly.







4. Remove the lumbar support assembly.

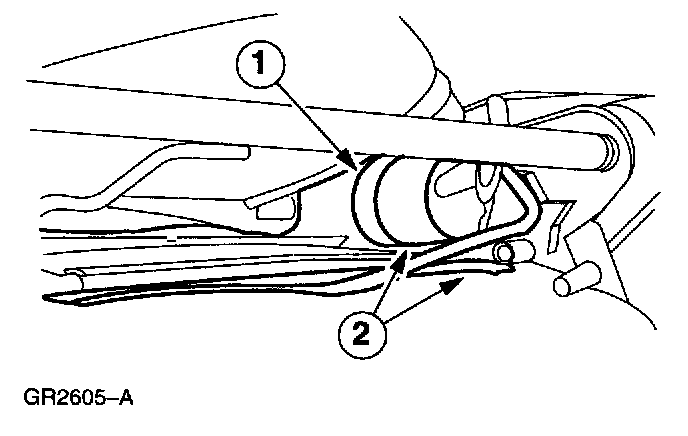

1. Detach the lumbar support pump from the backrest frame.
2. Remove the lumbar support assembly.

INSTALLATION
1. To install, reverse the removal procedure.
