Leather Seats

REMOVAL
1. Remove the front seat backrest.







2. Detach the Velcro strip.







3. Release the plastic retaining strip.







4. Remove the lower frame hog rings.
1. Lift the seat cover to expose the lower seat frame.
2. Cut the hog rings.







5. Remove the two hog rings from either side of the seat frame base.







6. Roll the cover along the backrest to expose the motor retaining bolts.

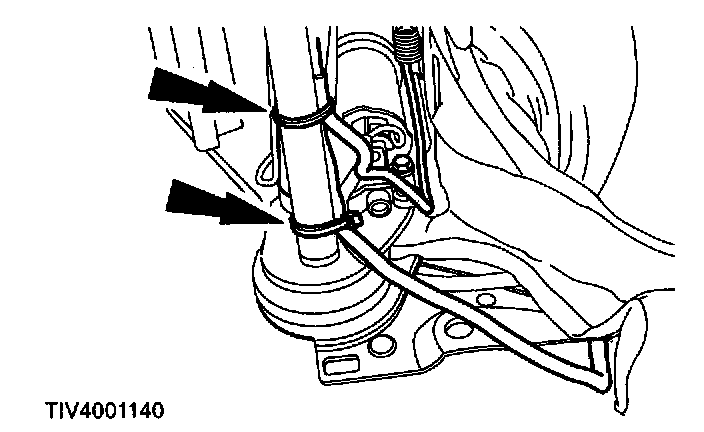

7. Detach the motor harness.
^ Cut the cable ties.

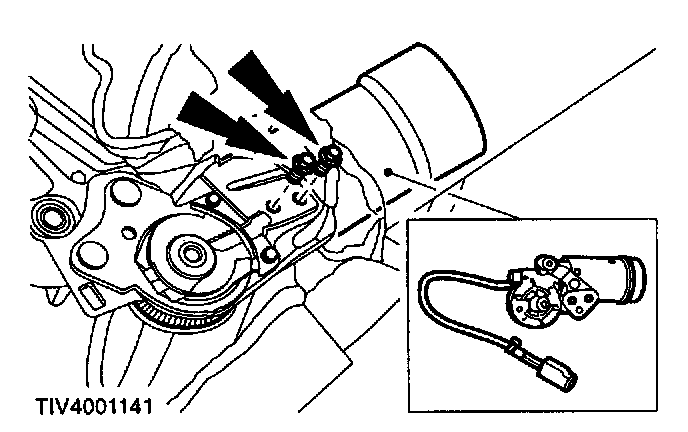

8. Remove the backrest motor.
^ Remove the two retaining bolts

INSTALLATION
1. To install, reverse the removal procedure.
