Electrical Diagrams

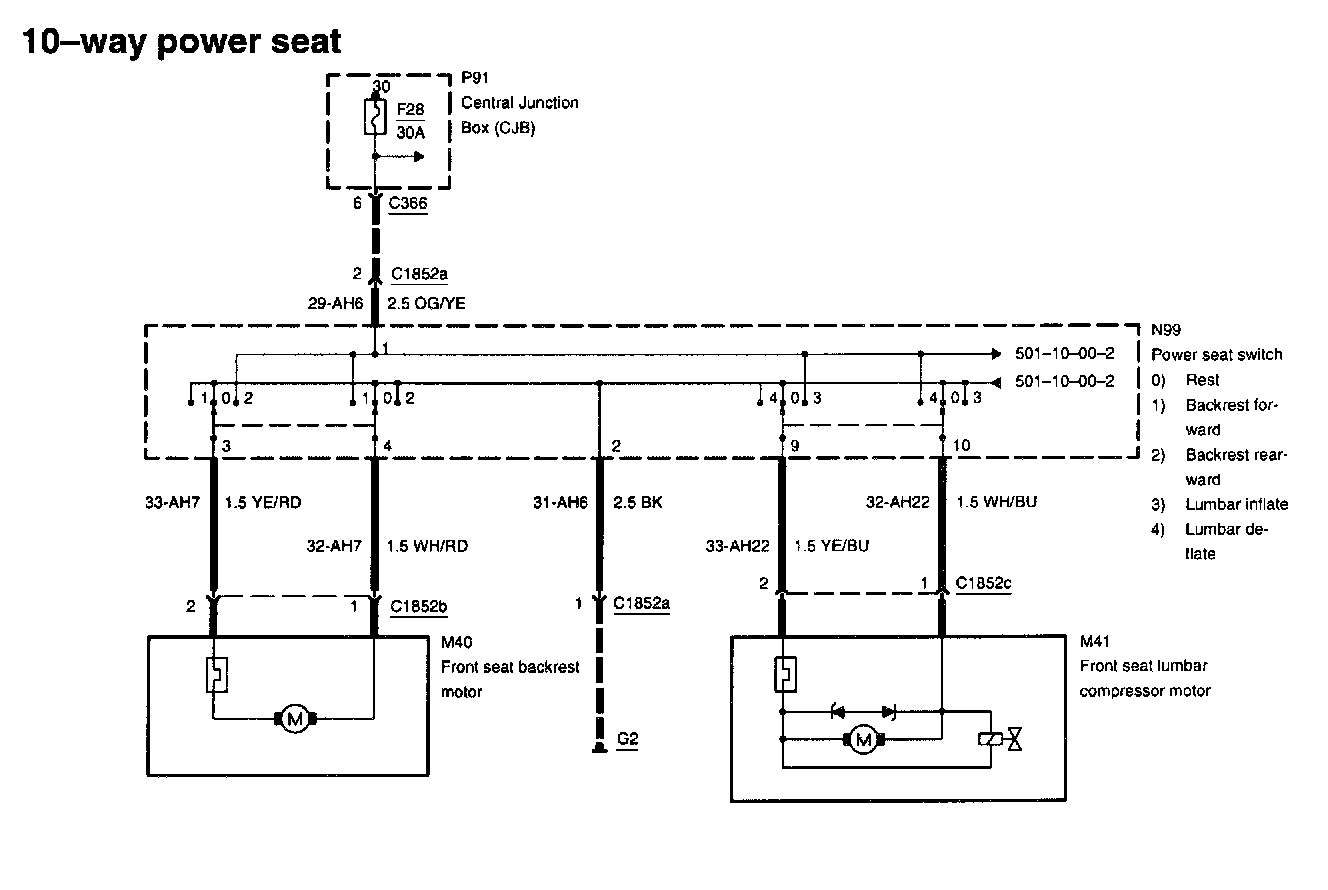

Diagram 501-10-00-1:

Central Junction Box
Front Seat Backrest Motor
Front Seat Lumbar Compressor Motor
Fuse F28
Power Seat Switch

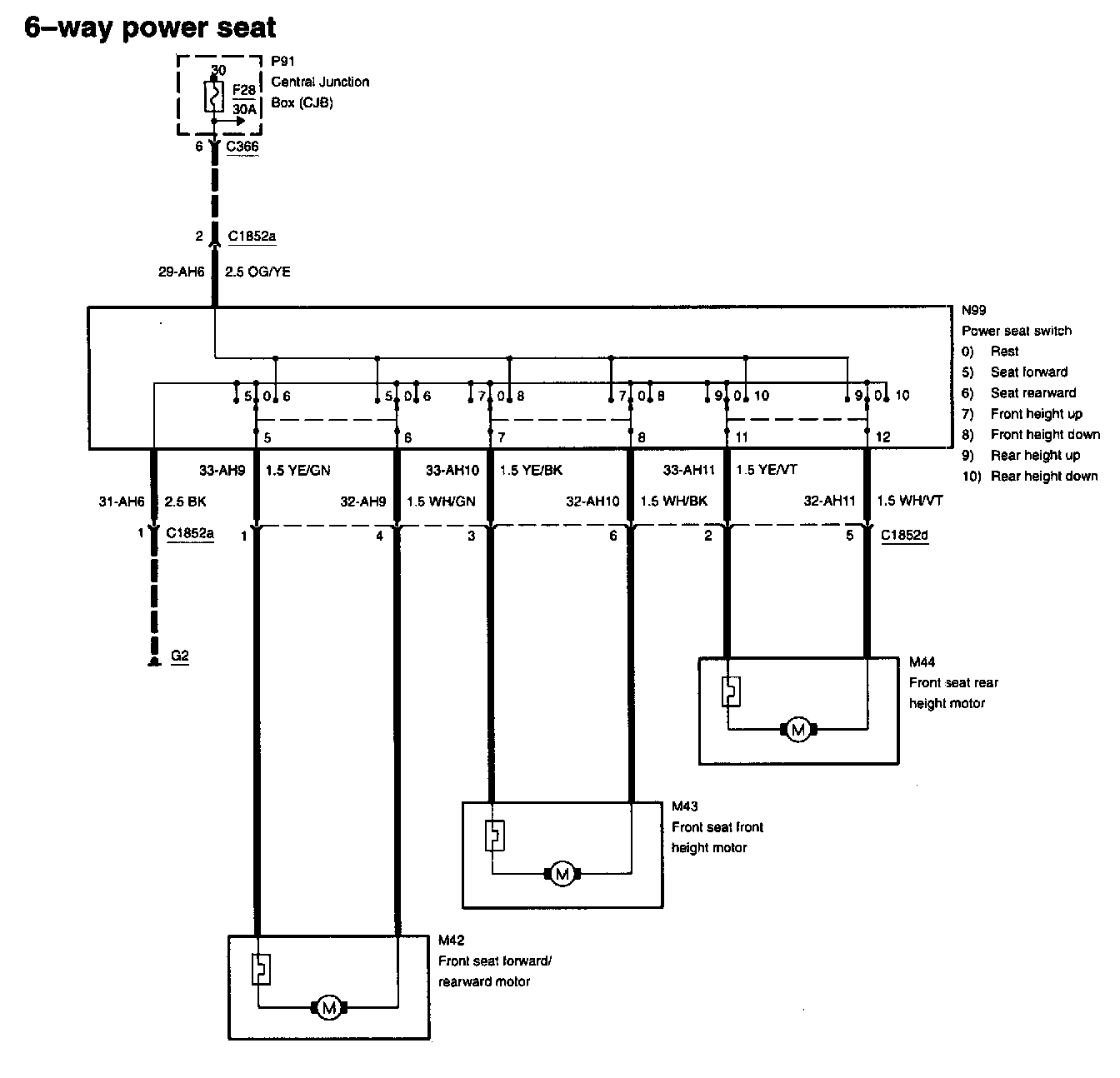

Diagram 501-10-00-2:

Front Seat Front Height Motor
Front Seat Rear Height Motor
Front Seat Forward/Rearward Motor
Power Seat Switch

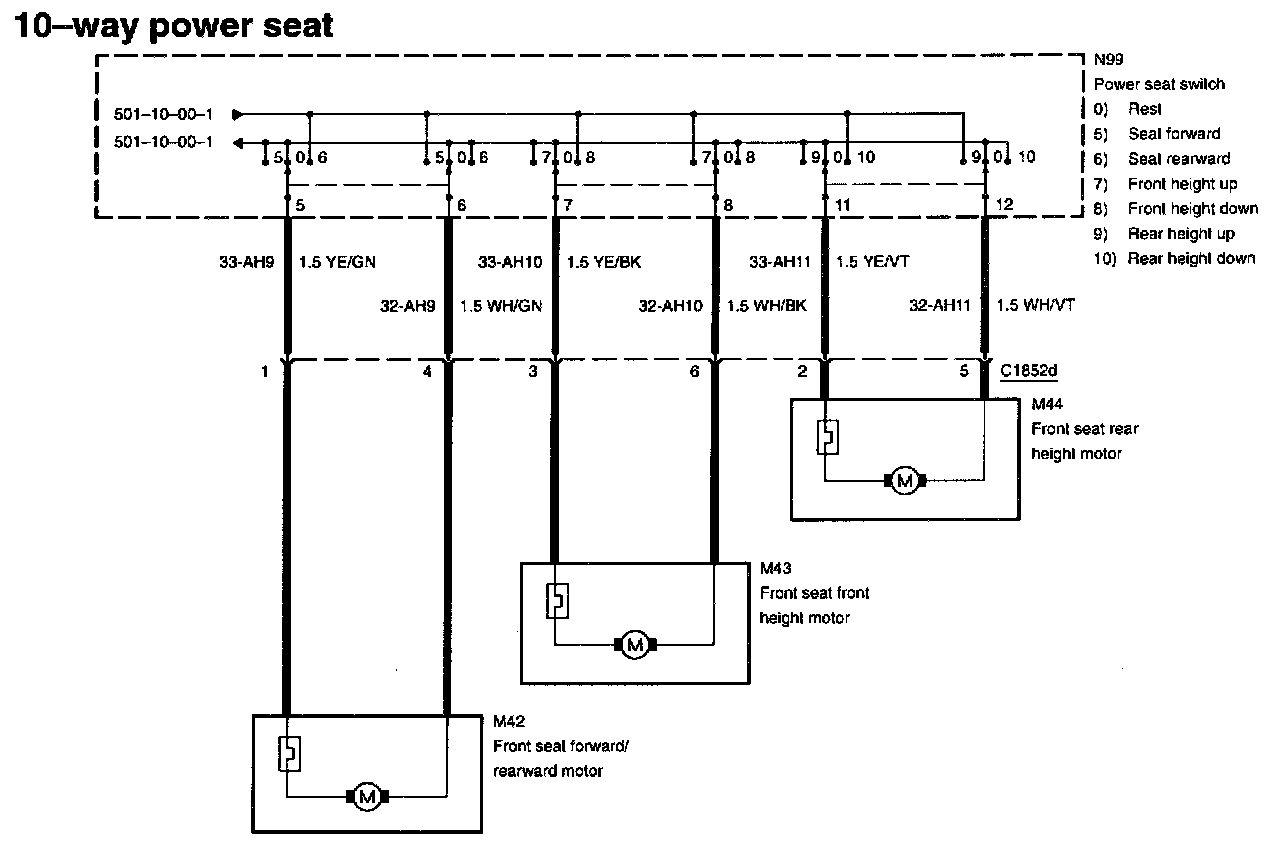

Diagram 501-10-00-3:

Central Junction Box
Front Seat Front Height Motor
Front Seat Rear Height Motor
Front Seat Forward/Rearward Motor
Fuse F28
Power Seat Switch
