Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Pinpoint Tests >> E: Sliding Roof Panel Does Not Open Or Close

E: Sliding Roof Panel Does Not Open Or Close

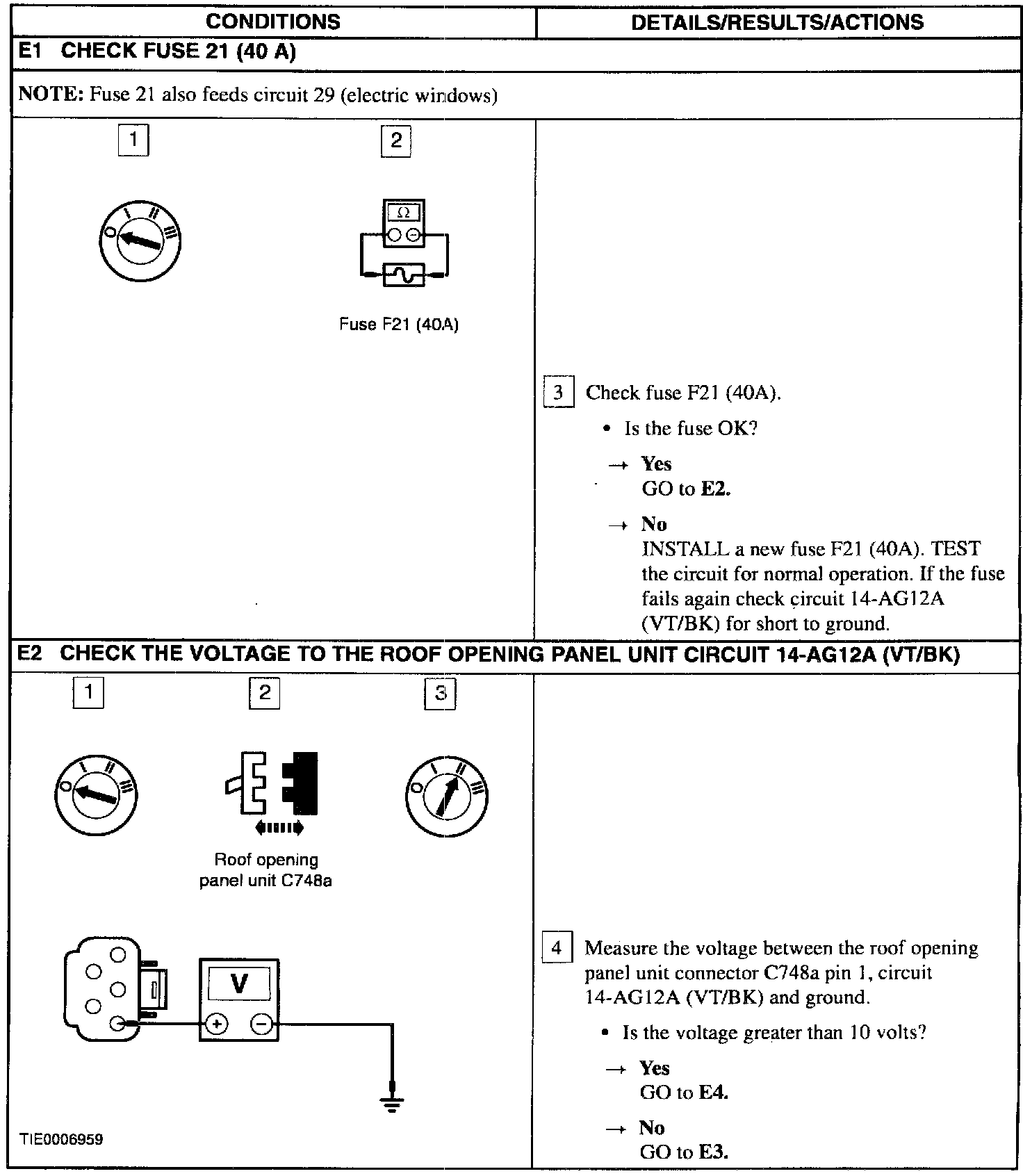

E1 - E2:

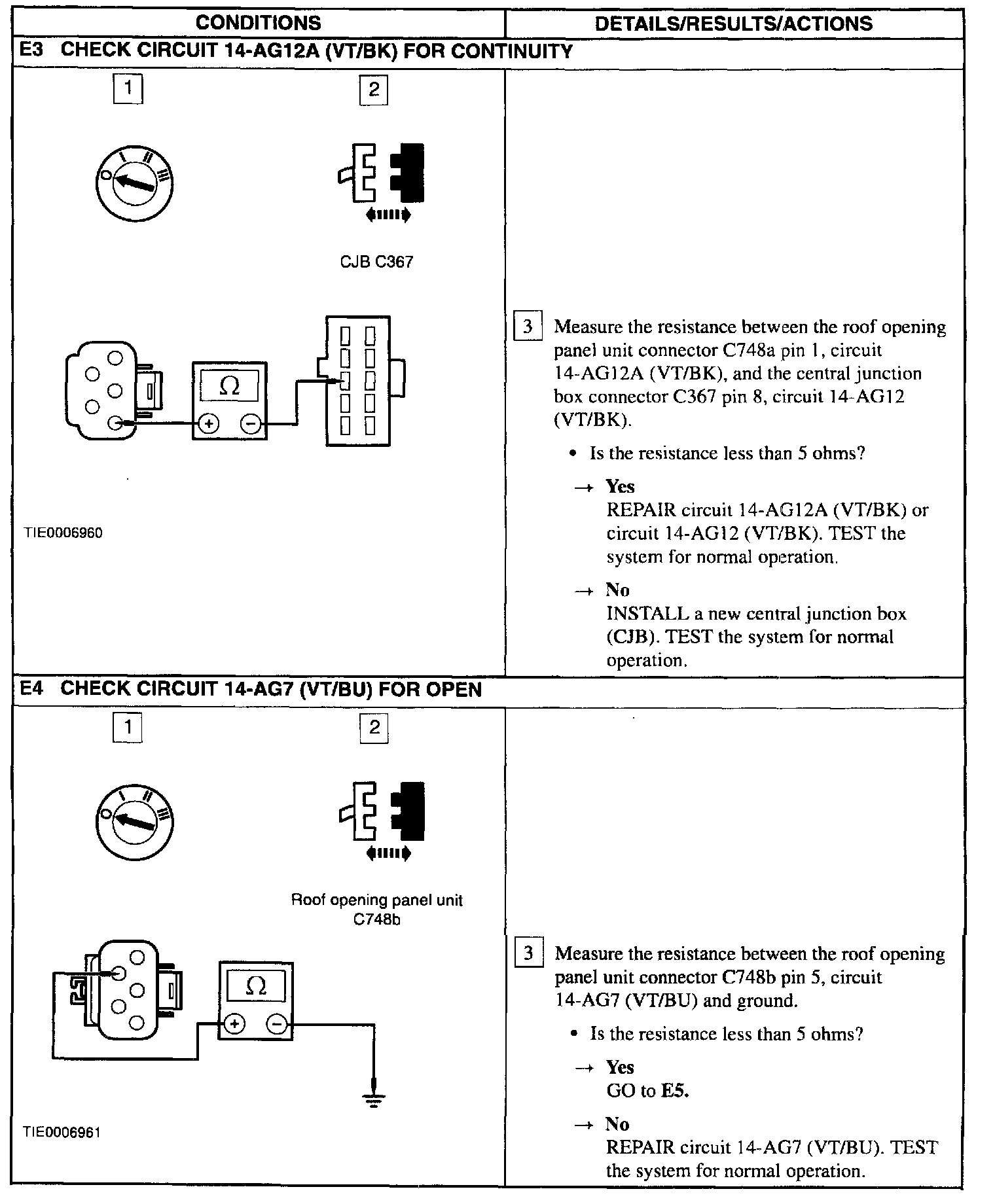

E3 - E4:

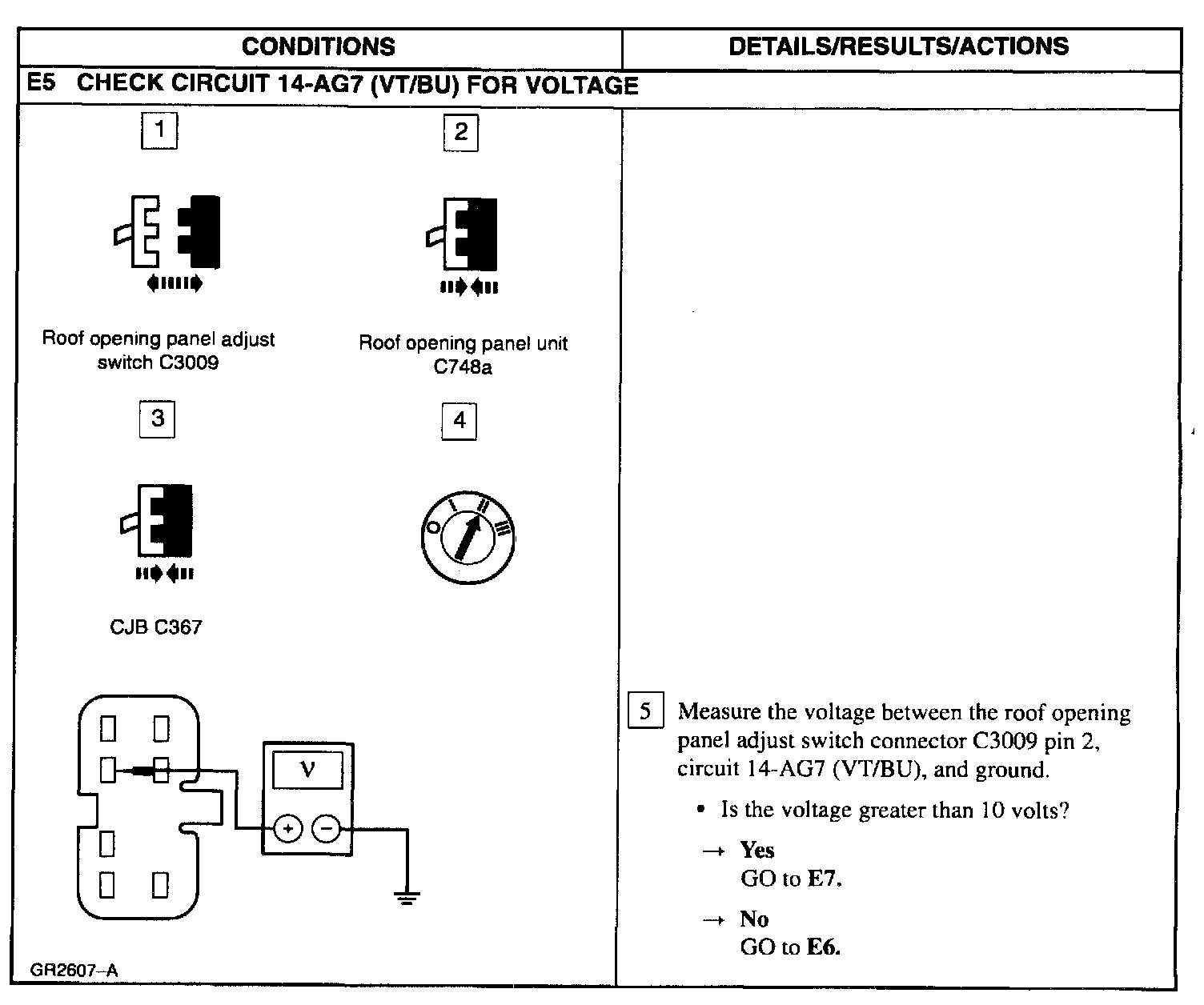

E5:

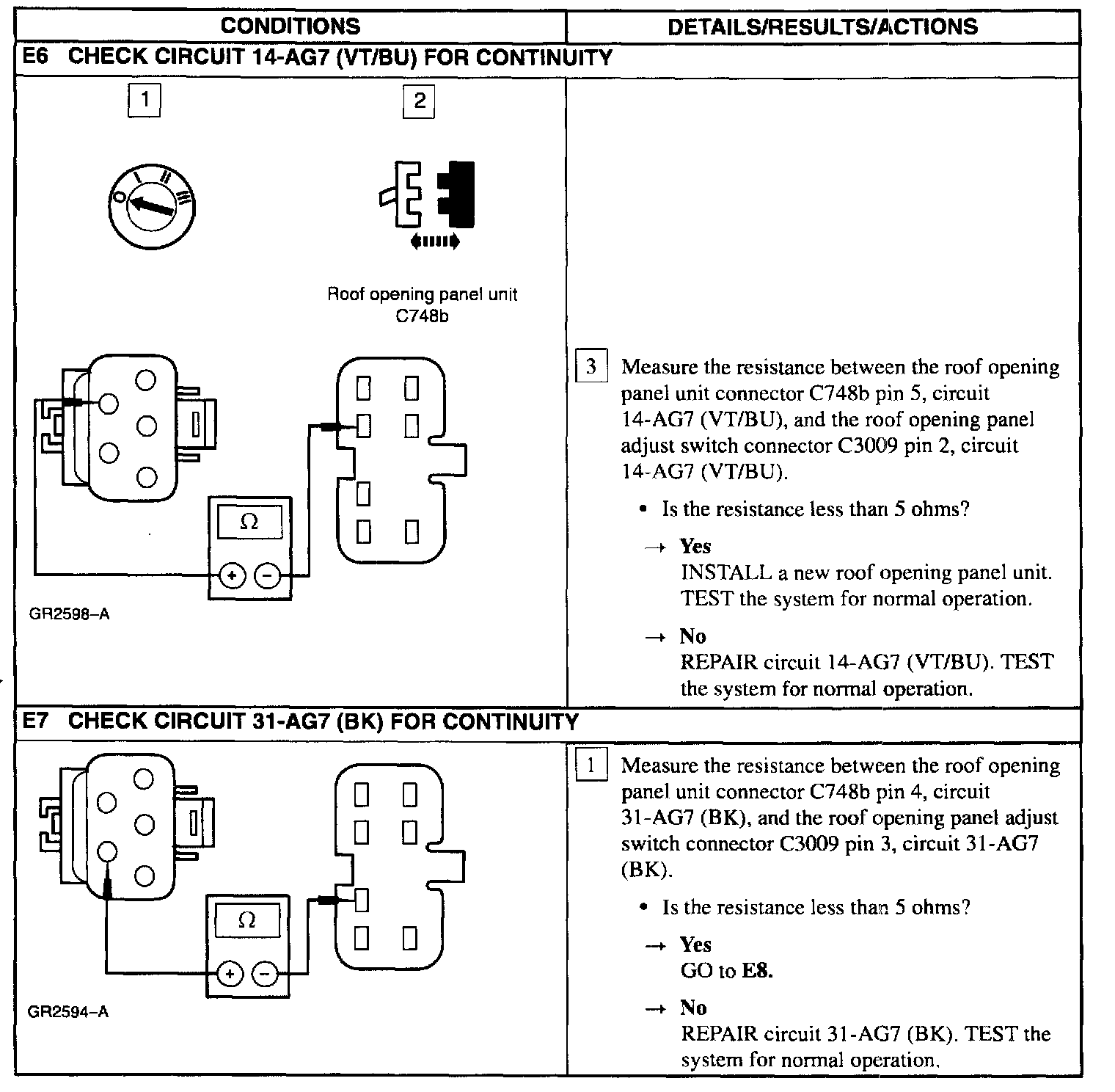

E6 - E7:

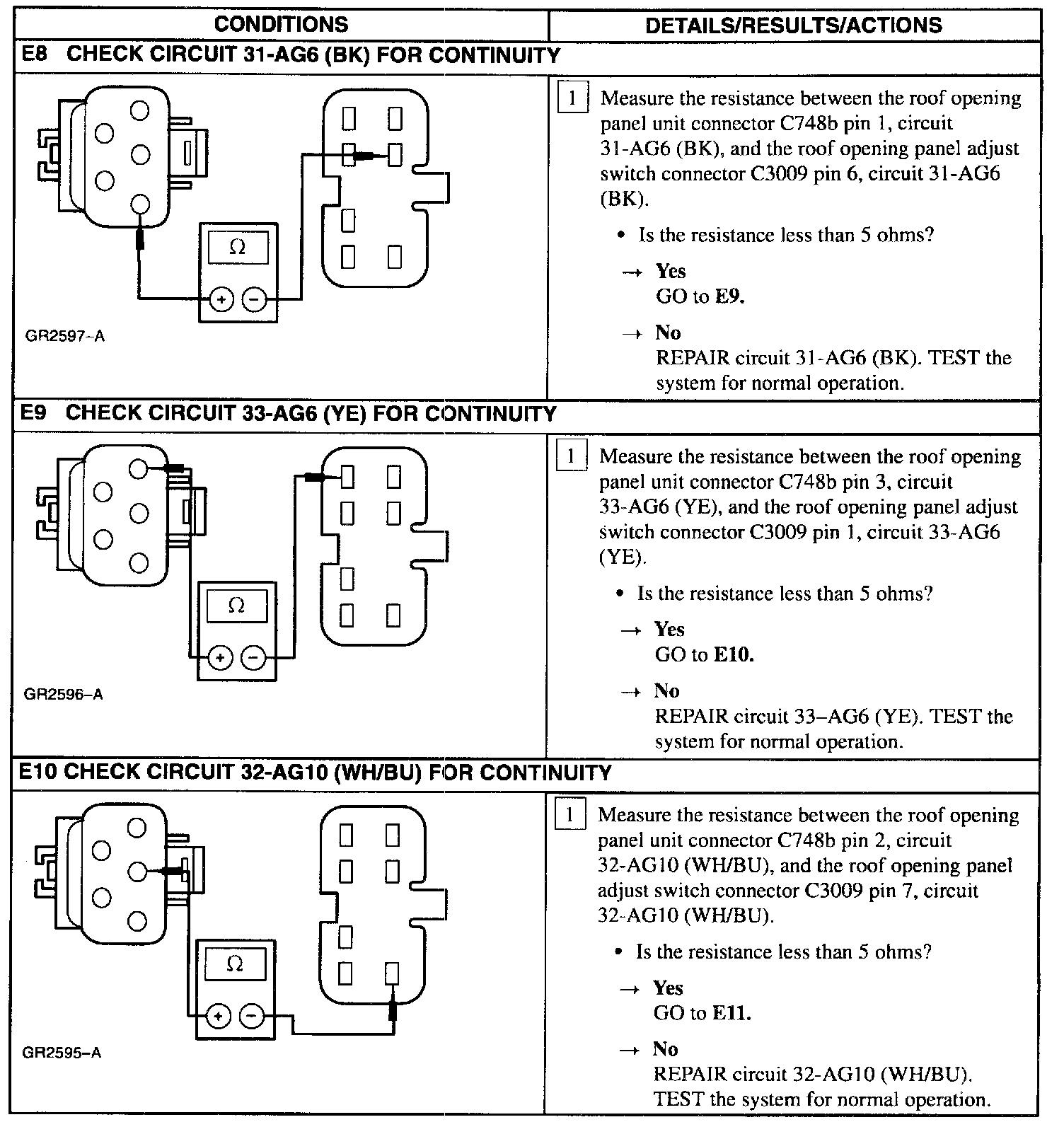

E8 - E10:

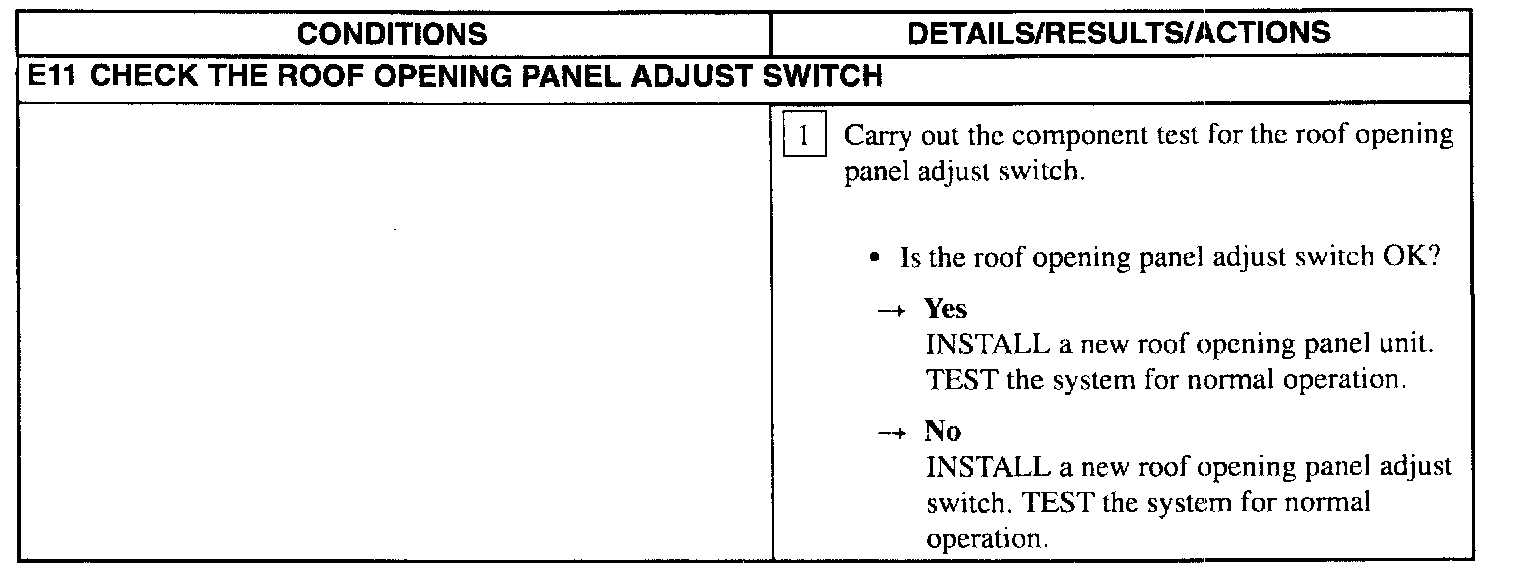

E11:
