Sliding Roof Glass

REMOVAL







1. Detach the roof opening panel surround.
1. Remove the retaining screws.
2. Slide the surround into the stowage space above the headliner.
2. Raise/tilt the roof opening panel.

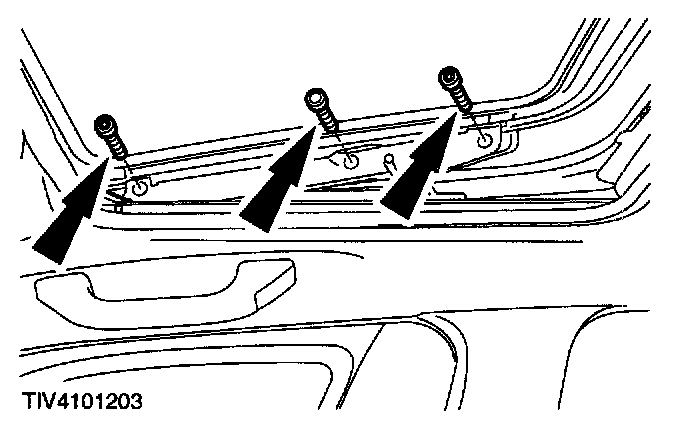

3. Remove the roof opening panel.
^ Remove the three retaining screws from each side.

INSTALLATION

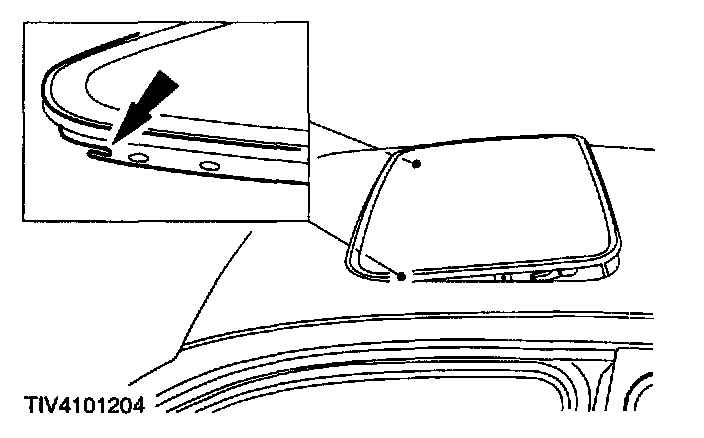

1. Position the roof opening panel guides at the front edge of the frame.







2. Install roof opening panel retaining screws on both sides.

NOTE: Do not tighten the screws at this stage.

3. Adjust the roof opening panel.

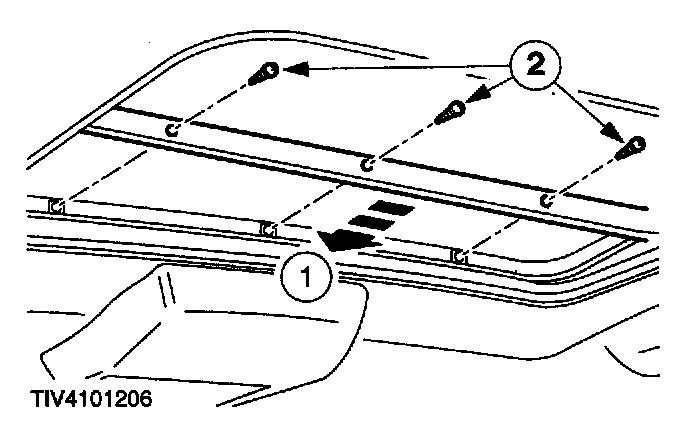

4. Install the roof opening panel surround.
1. Slide the surround to the front of the roof opening panel.
2. Install the retaining screws.
