Sliding Roof Height Adjustment

TO ADJUST

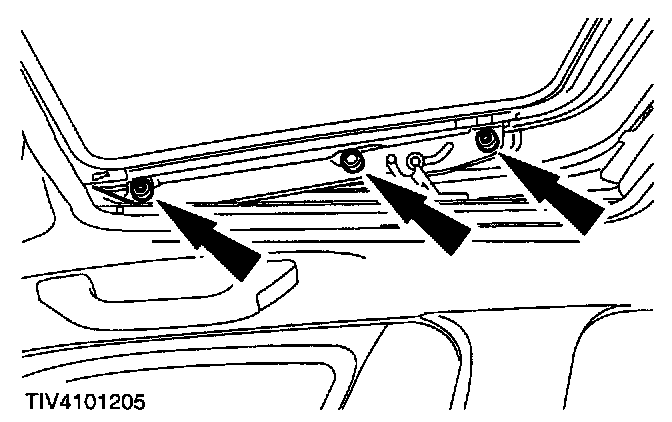

1. Position the roof opening panel surround.
1. Remove the retaining screws.
2. Slide the surround into the stowage space above the headliner.

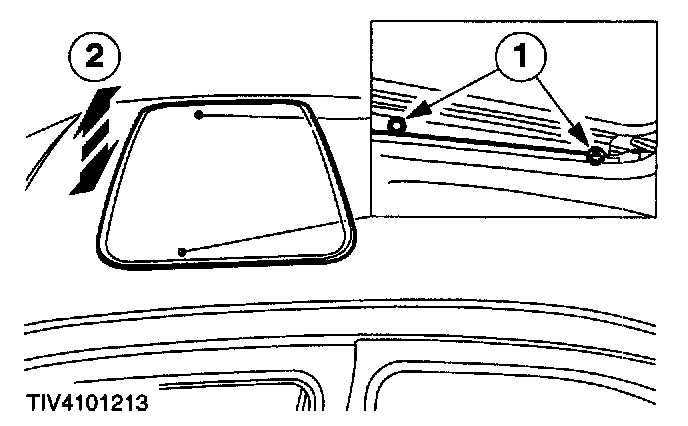

2. Adjust the rear edge of the roof opening panel.
1. Loosen the center and rear screws on each side.
2. Push the rear edge up/down to give the correct alignment (flush to + 1 mm).

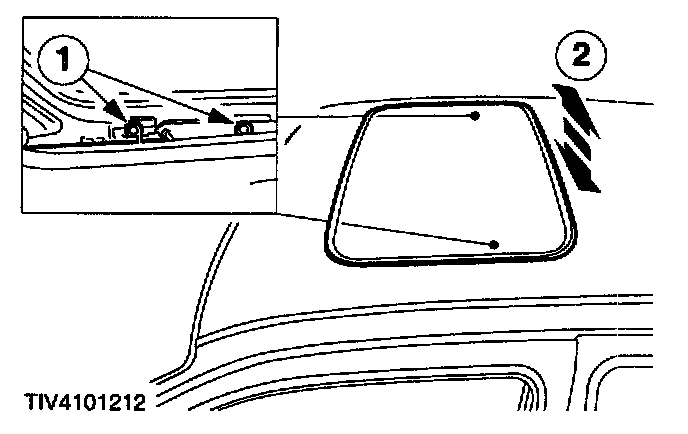

3. Adjust the front edge of the roof opening panel.
1. Loosen the center and front screws on each side.
2. Push the front edge up/down to give the correct alignment (flush to -1 mm).







4. Tighten the roof opening panel retaining screws on each side.







5. Install the opening roof panel surround.
1. Slide the surround to the front of the sliding roof panel.
2. Install the retaining screws.
