Luggage Compartment Release

REMOVAL
1. Remove the luggage compartment latch.

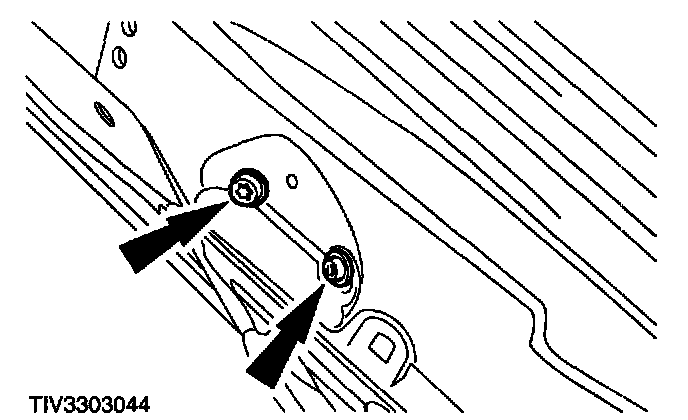

2. Remove the actuator bolts.







3. Remove the actuator.

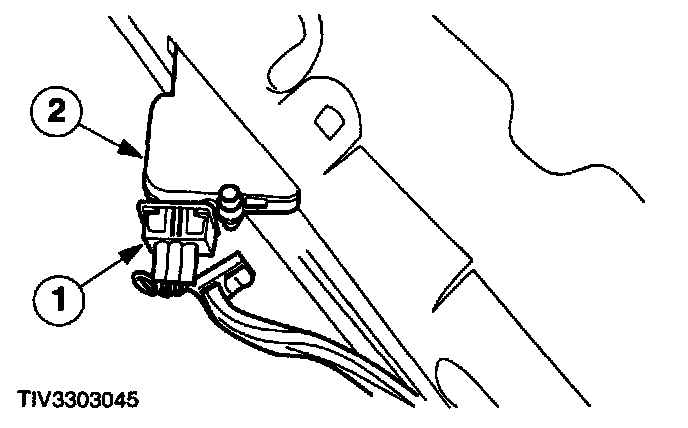

1 Disconnect the electrical connector.
2 Remove the actuator.

INSTALLATION
1. To install, reverse the removal procedure.
