Without Anti-Theft /Central Locking Module

DETAILED DIAGRAMS

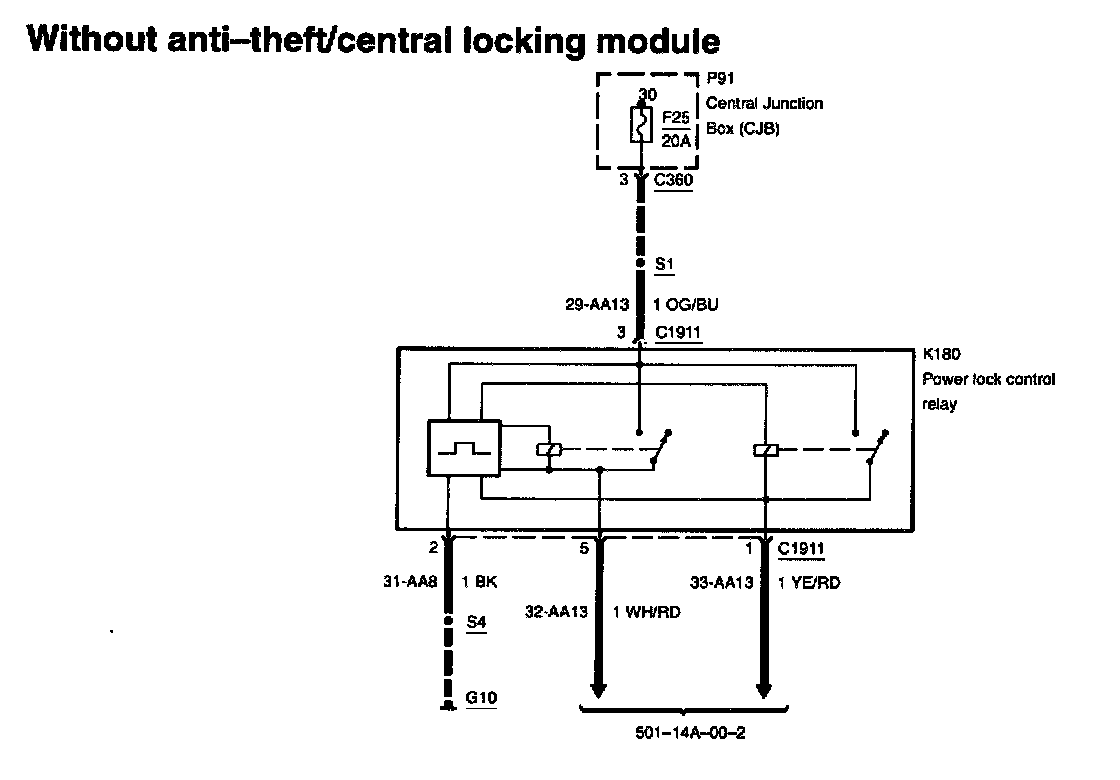

Diagram 501-14a-00-1:

Central Junction Box
Fuse F25
Power Lock Control Relay

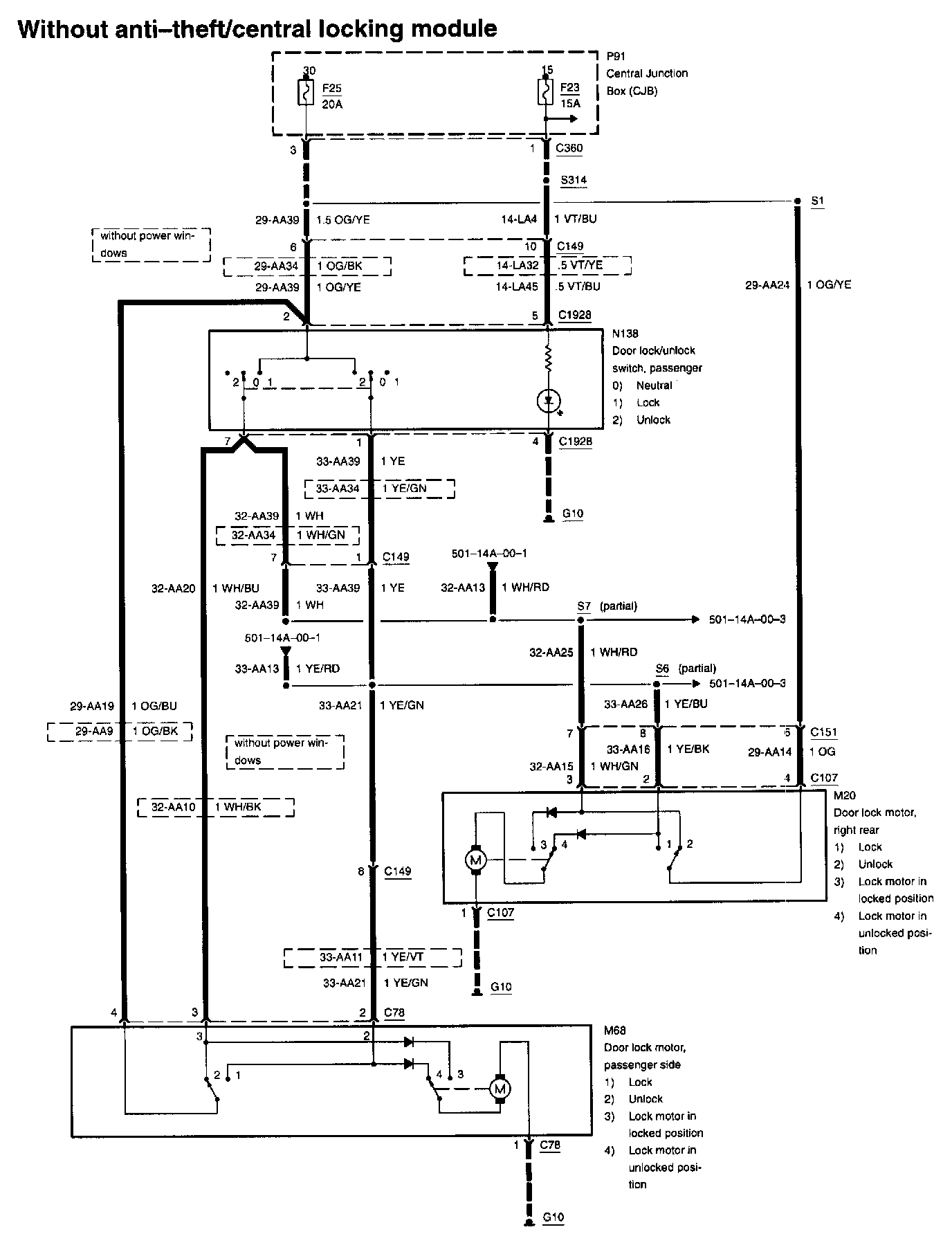

Diagram 501-14a-00-2:

Central Junction Box
Door Lock Motor, Passenger Side
Door Lock Motor, Right Rear
Door Lock/Unlock Switch, Passenger
Fuse F23
Fuse F25

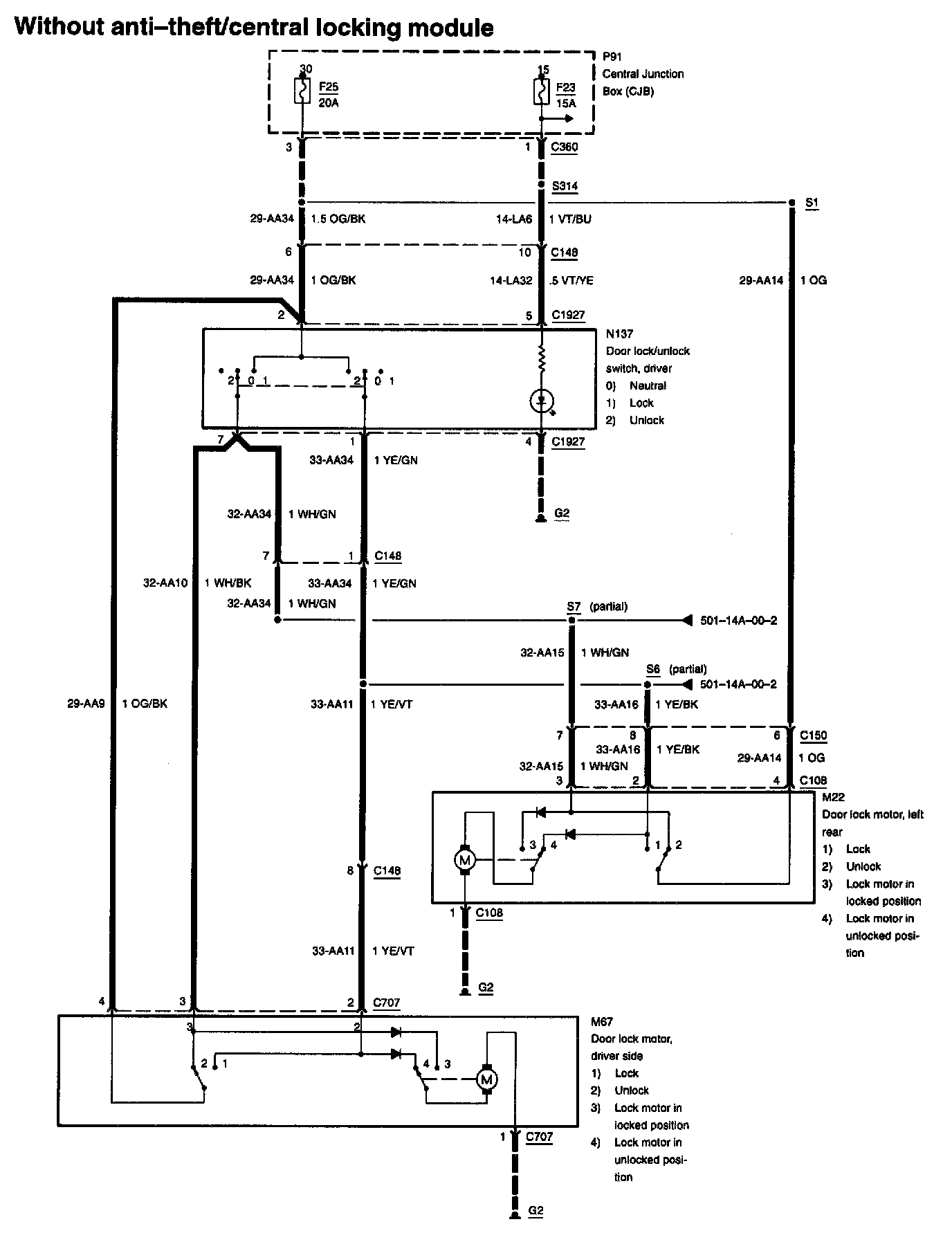

Diagram 501-14a-00-3:

Central Junction Box
Door Lock Motor, Driver Side
Door Lock Motor, Left Rear
Door Lock/Unlock Switch, Driver
Fuse F23
Fuse F25

Diagram 501-14a-00-4:

Anti-Theft/Central Locking Module
Central Junction Box
Central Timer Module
Fuse F25
Fuse F32
Fuse F34

Diagram 501-14a-00-7:

Anti-Theft/Central Locking Module
Door Lock Switch, Driver Side
Door Lock Switch, Passenger Side

Diagram 501-14a-00-8:

Anti-Theft/Central Locking Module
Decklid Motor
Door Lock Diagnostic Connector

Diagram 501-14a-00-9:

Anti-Theft/Central Locking Module
Central Junction Box
Fuse F25
Panic Alarm Headlamp Relay
Panic Alarm Stoplamp Relay

Diagram 501-14a-00-10:

Anti-Theft/Central Locking Module
Battery Junction Box
Fuse F12
Horn
Horn Relay
