Hood Latch: Service and Repair

REMOVAL
1. Remove the radiator grille.

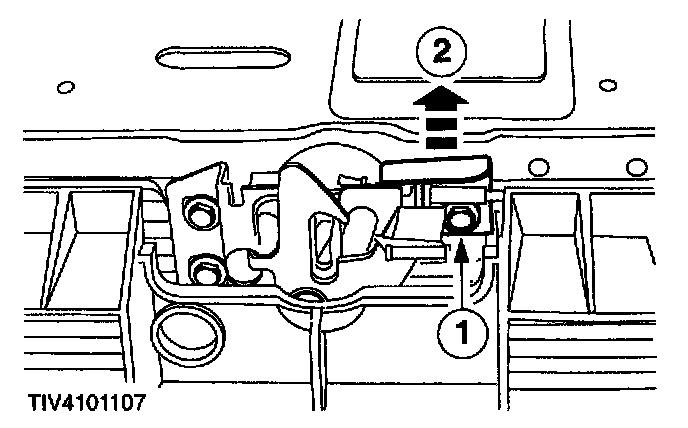

2. Remove the hood latch cover bracket.
1. Loosen the retaining bolt.
2. Remove the hood latch cover bracket.

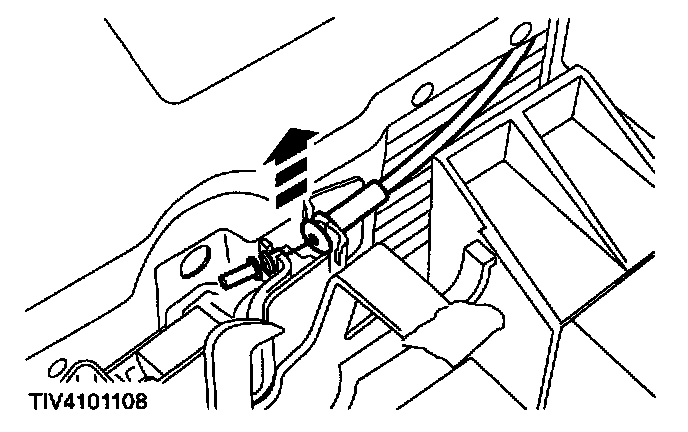

3. Detach the hood latch release cable.

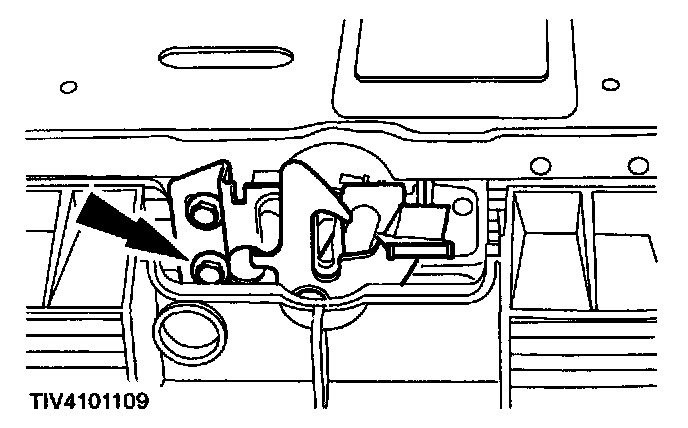

4. Remove the hood latch assembly.

NOTE: Using a suitable marker pen mark the position of the hood latch assembly.

INSTALLATION
1. To install, reverse the removal procedure.
