Rear Door Panel: Service and Repair

REMOVAL

All Vehicles

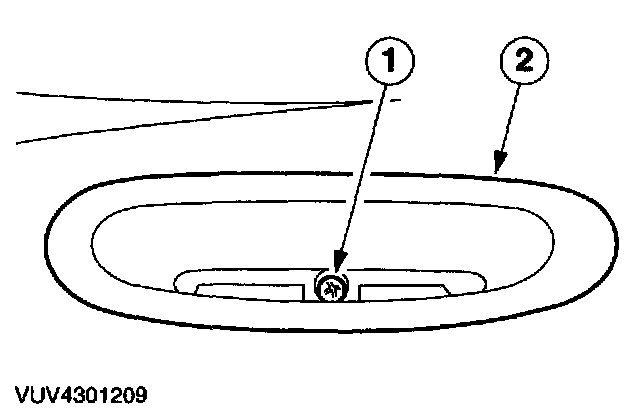

1. Remove the door latch bezel.
1 Remove the screw cover.
2 Remove the screw.
3 Remove the bezel.
4 Disconnect the power window switch electrical connector (if equipped).

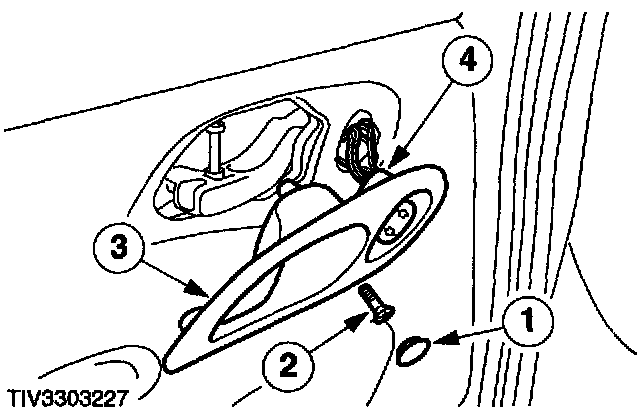

2. Remove the handle bezel.
1 Remove the screw.
2 Remove the bezel.

Vehicles With Manual Windows







3. Remove the window regulator handle.
- Use a suitable piece of wire.

All Vehicles

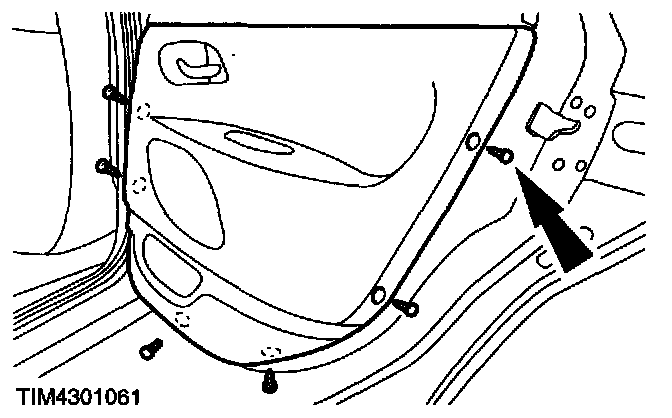

4. Remove the door trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
