Front Door Panel: Service and Repair

REMOVAL

All Vehicles

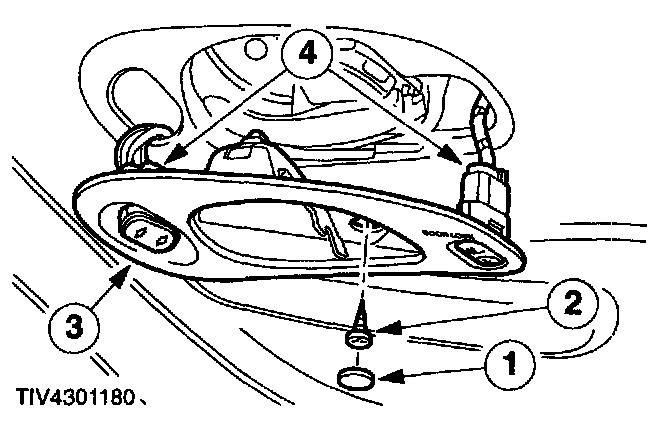

1. Remove the door latch release handle bezel (passenger side shown, driver side similar).
1 Remove the screw cover.
2 Remove the screw.
3 Detach the bezel.
4 Disconnect the electrical connectors.







2. Remove the interior door handle.
1 Remove the bezel.
2 Remove the screws.
3 Remove the handle.

Vehicles With Manual Windows

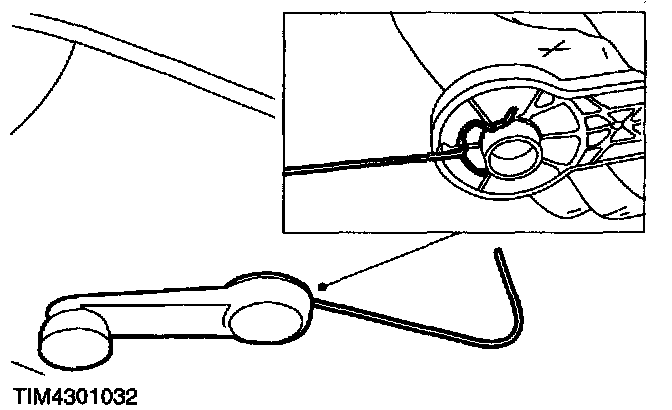

3. Remove the window regulator handle.
- Use a suitable piece of wire.

All Vehicles

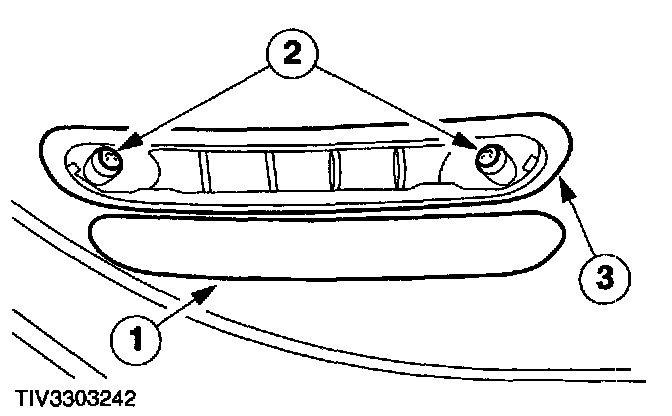

4. Remove the side window vent trim panel.
1 Remove the screw cover.
2 Remove the screw.
3 Remove the panel.

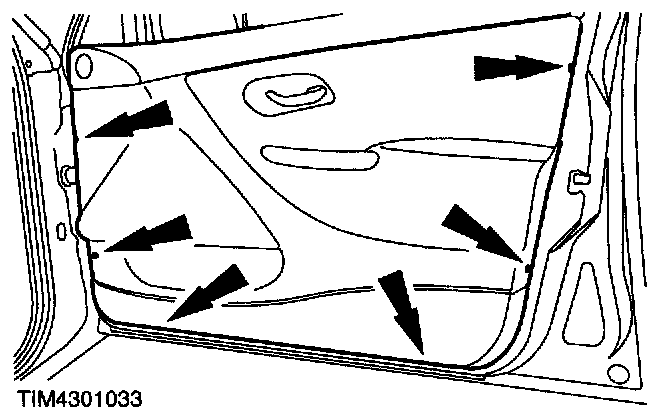

5. Remove the door trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
