B: Noisy Reception

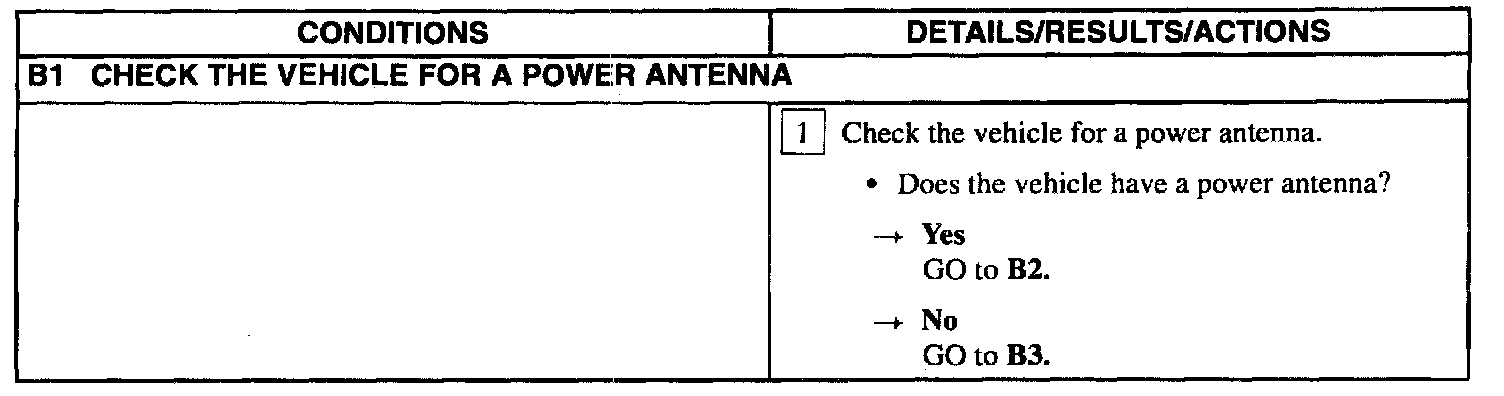

B1:

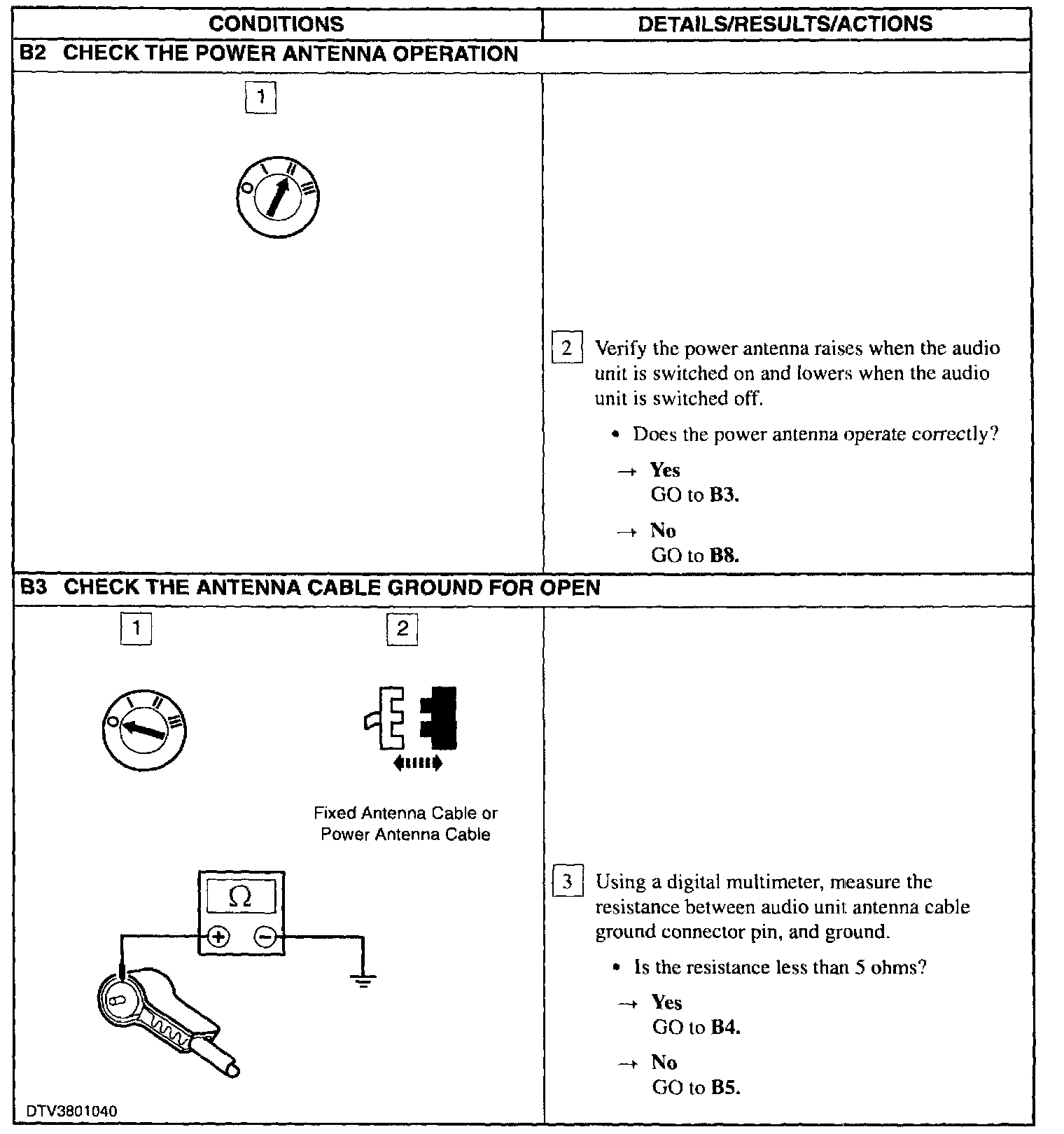

B2 - B3:

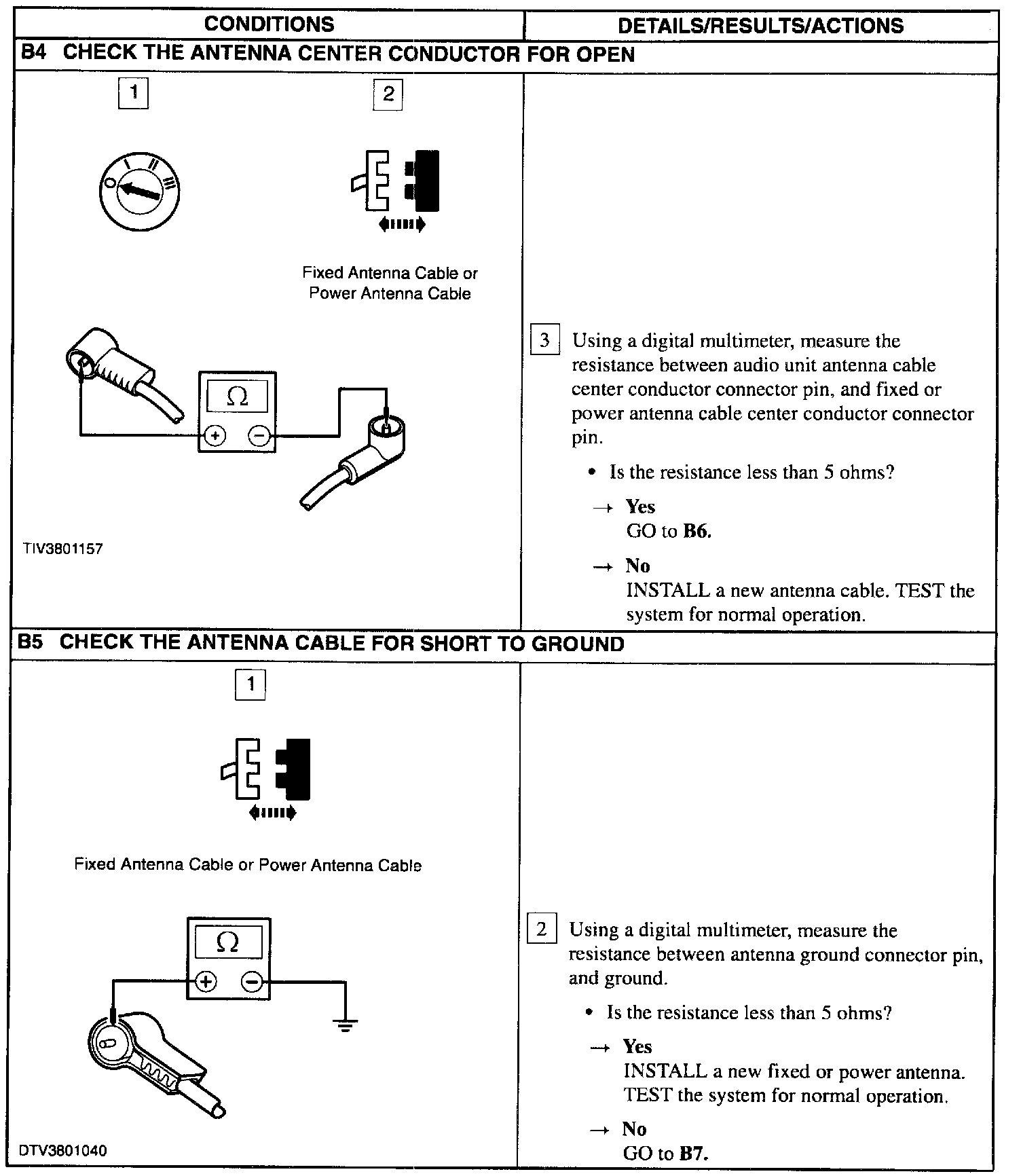

B4 - B5:

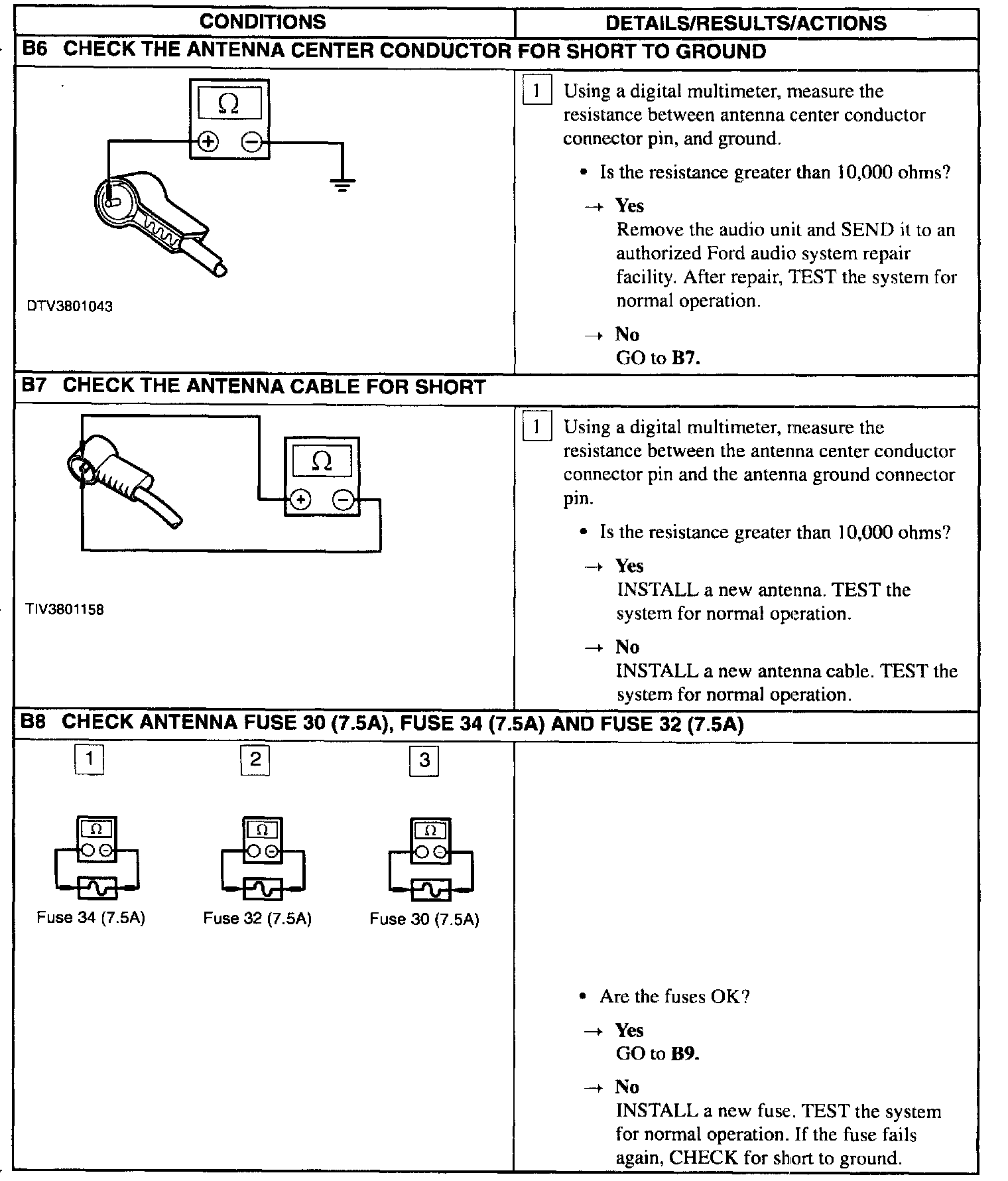

B6 - B8:

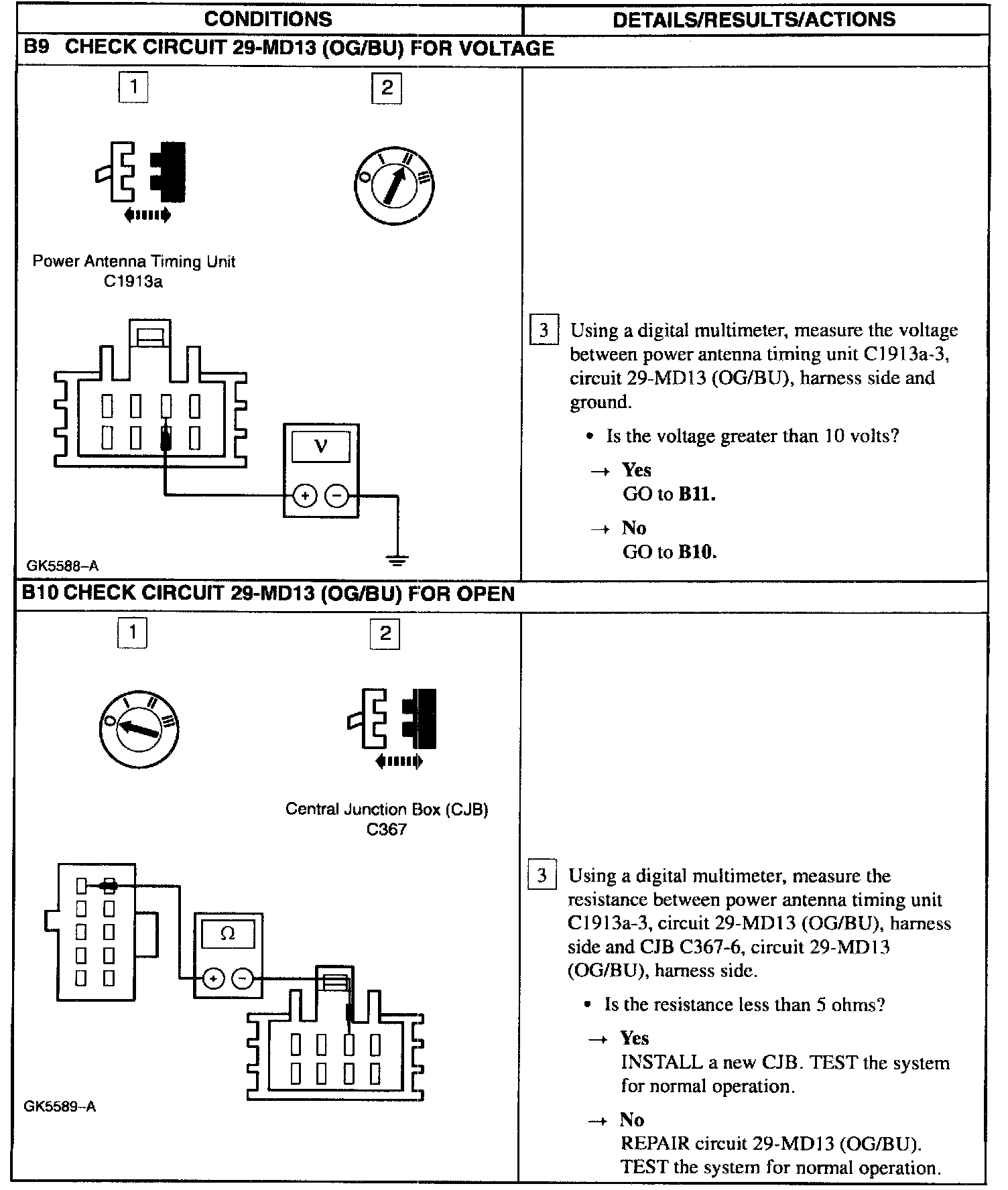

B9 - B10:

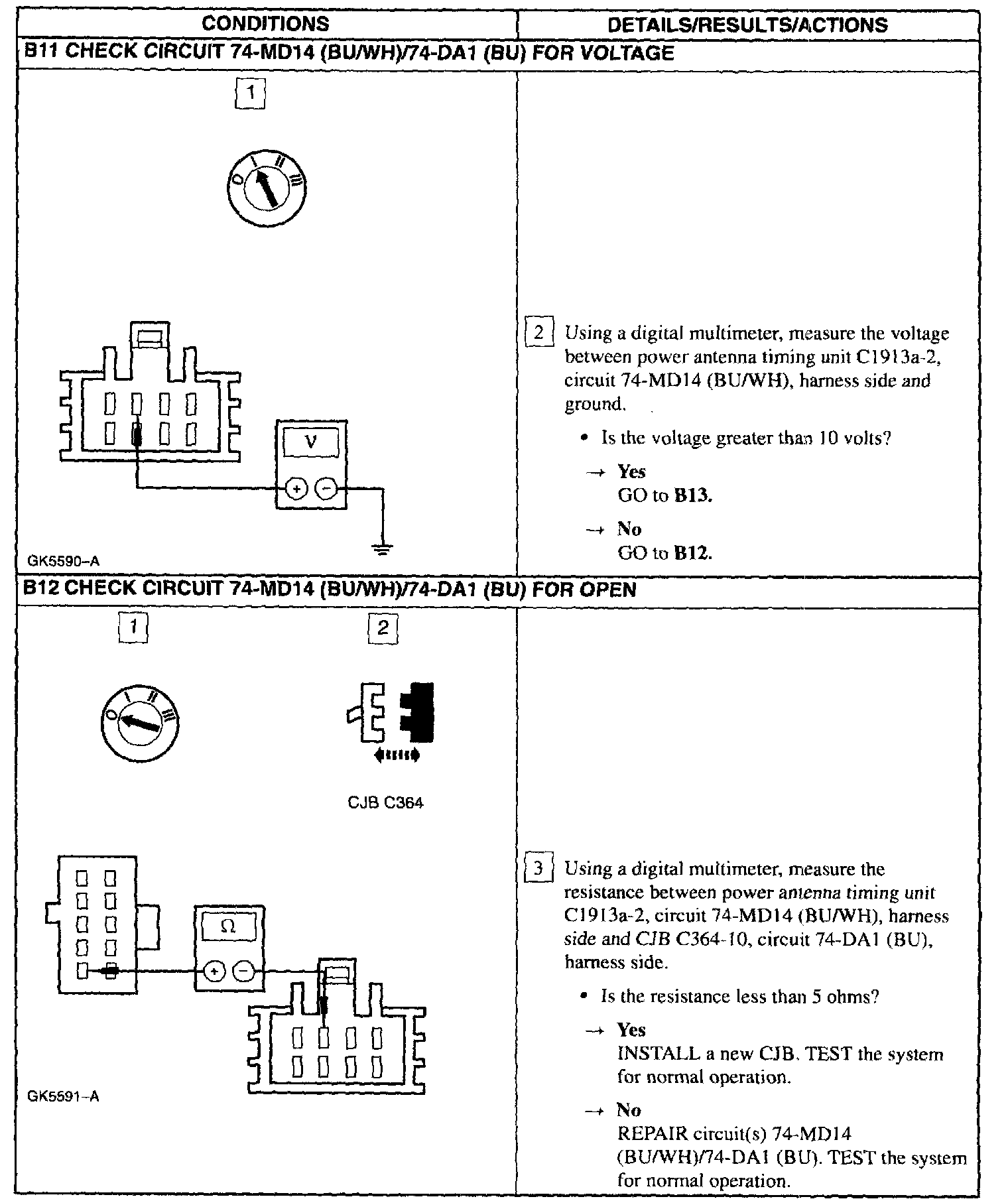

B11 - B12:

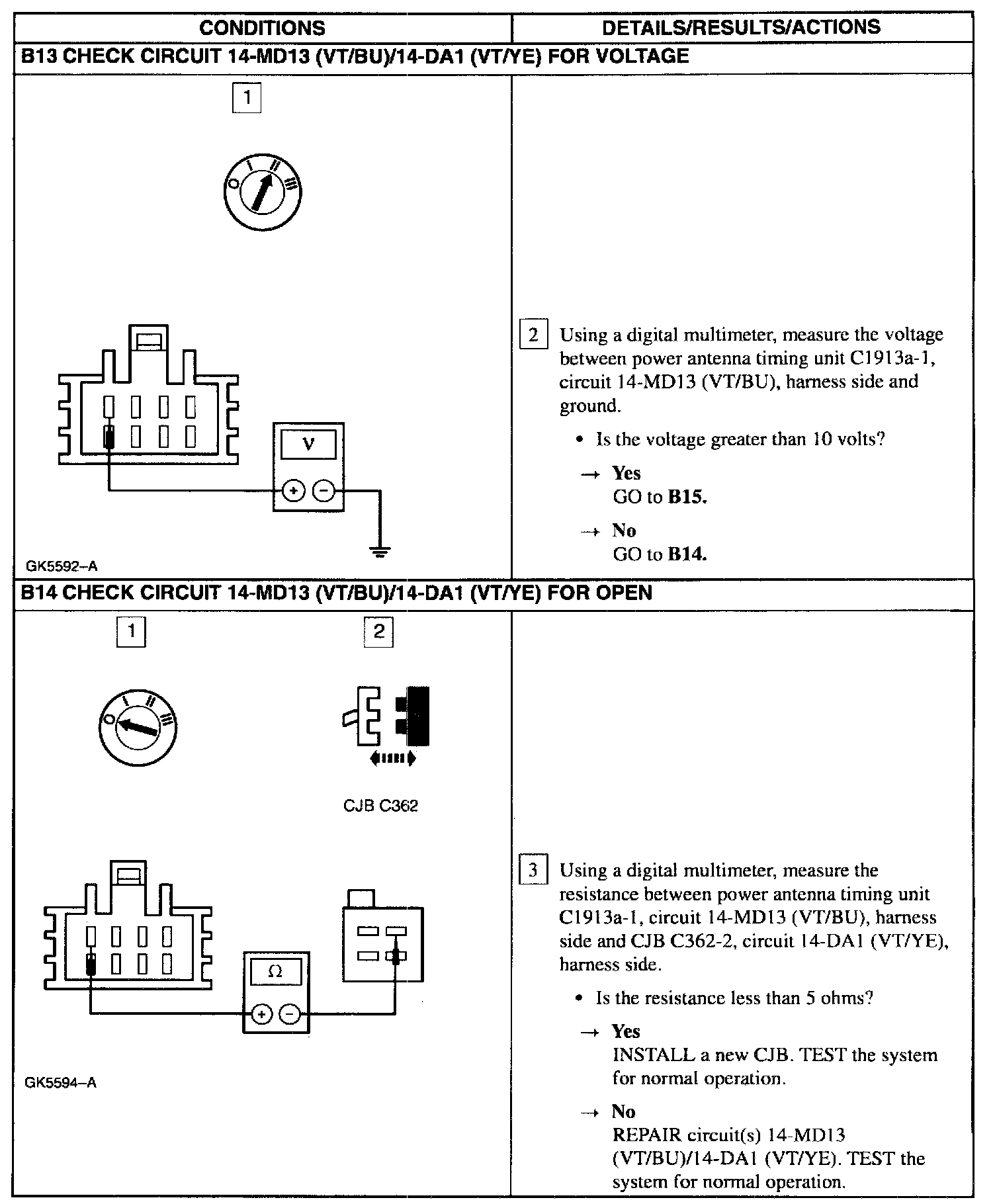

B13 - B14:

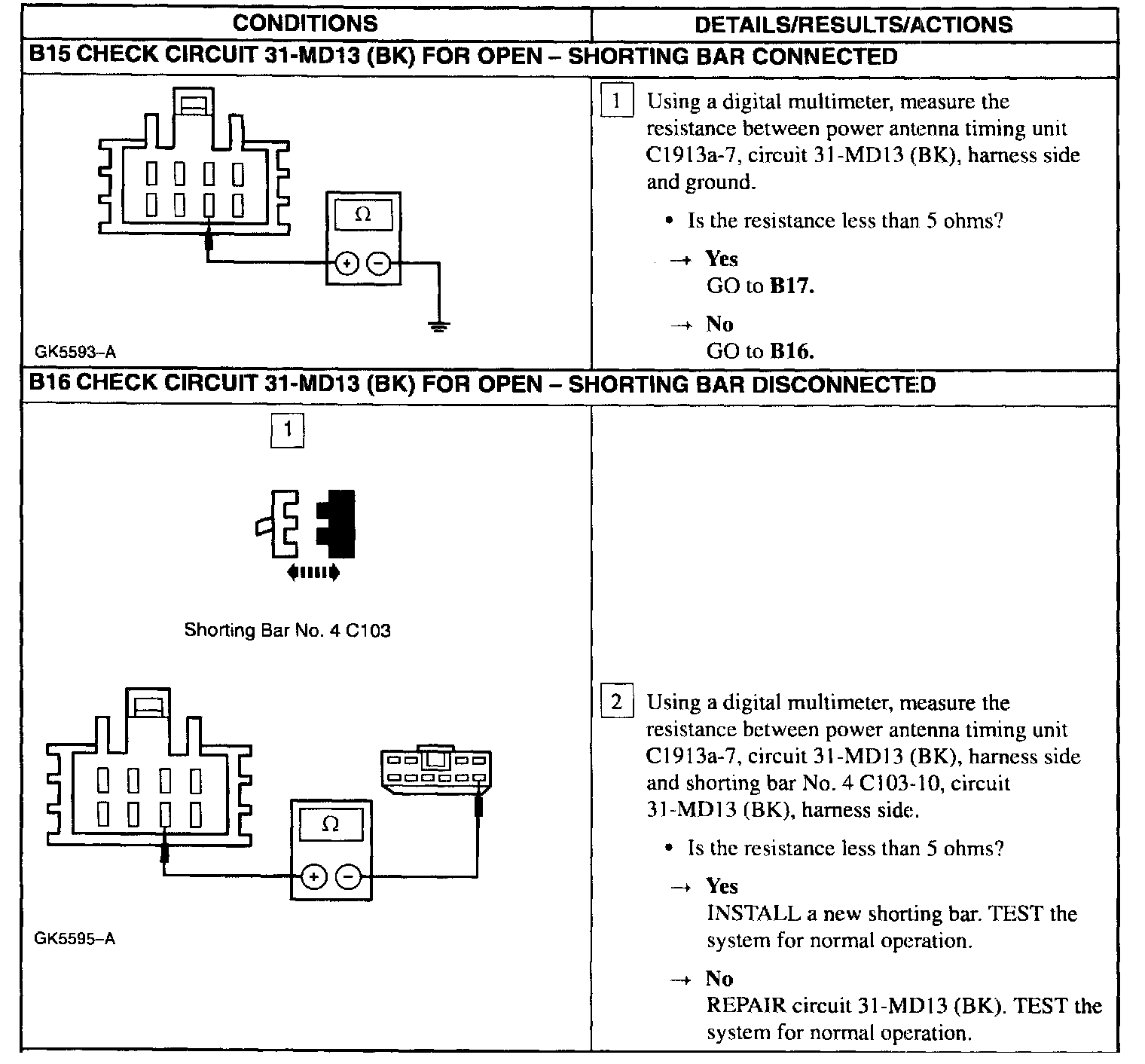

B15 - B16:

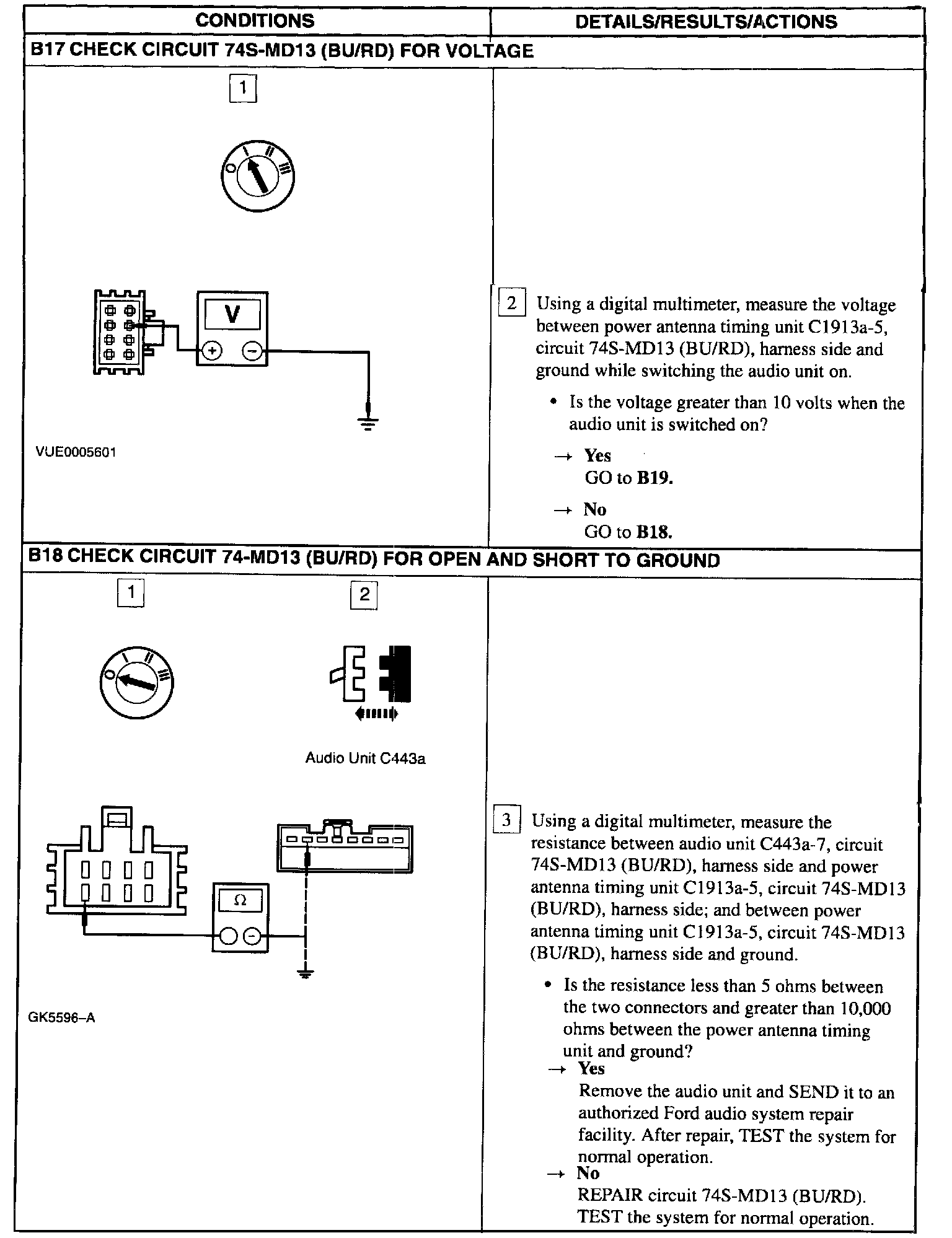

B17 - B18:

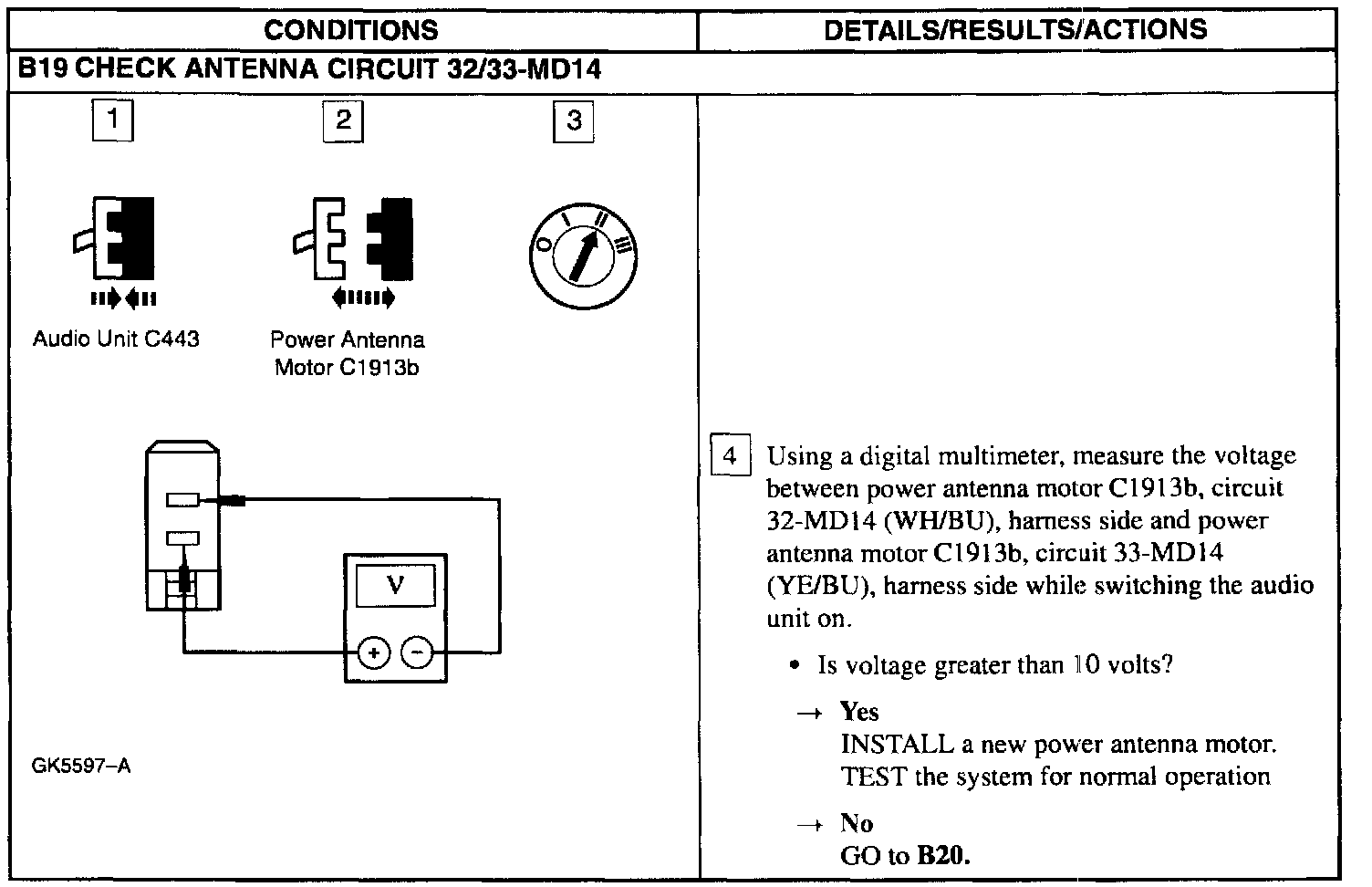

B19:

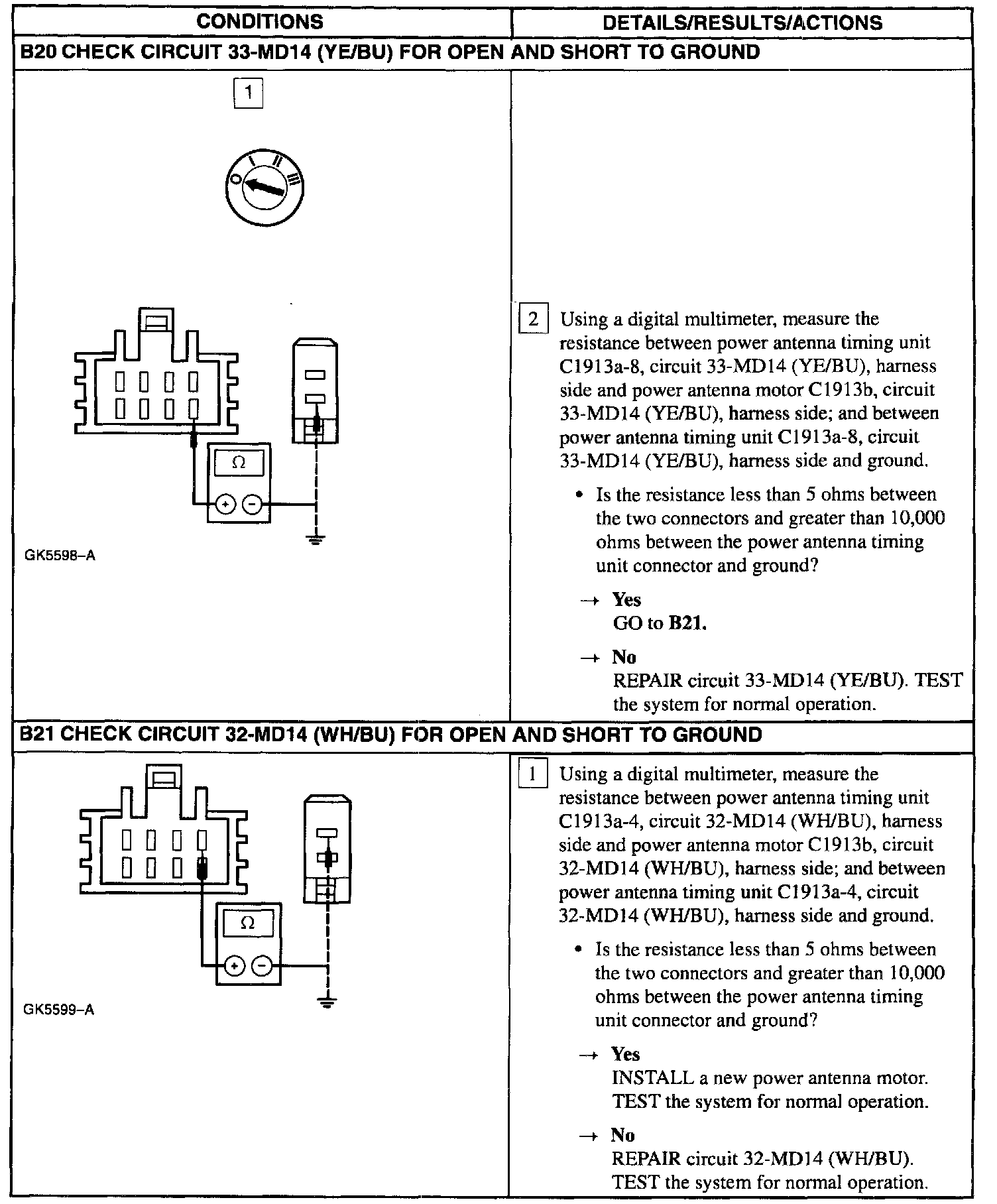

B20 - B21:
