Home >> Mercury >> 1999 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> A: The Audio Unit Is Inop - Does Not Operate Correctly

A: The Audio Unit Is Inop - Does Not Operate Correctly

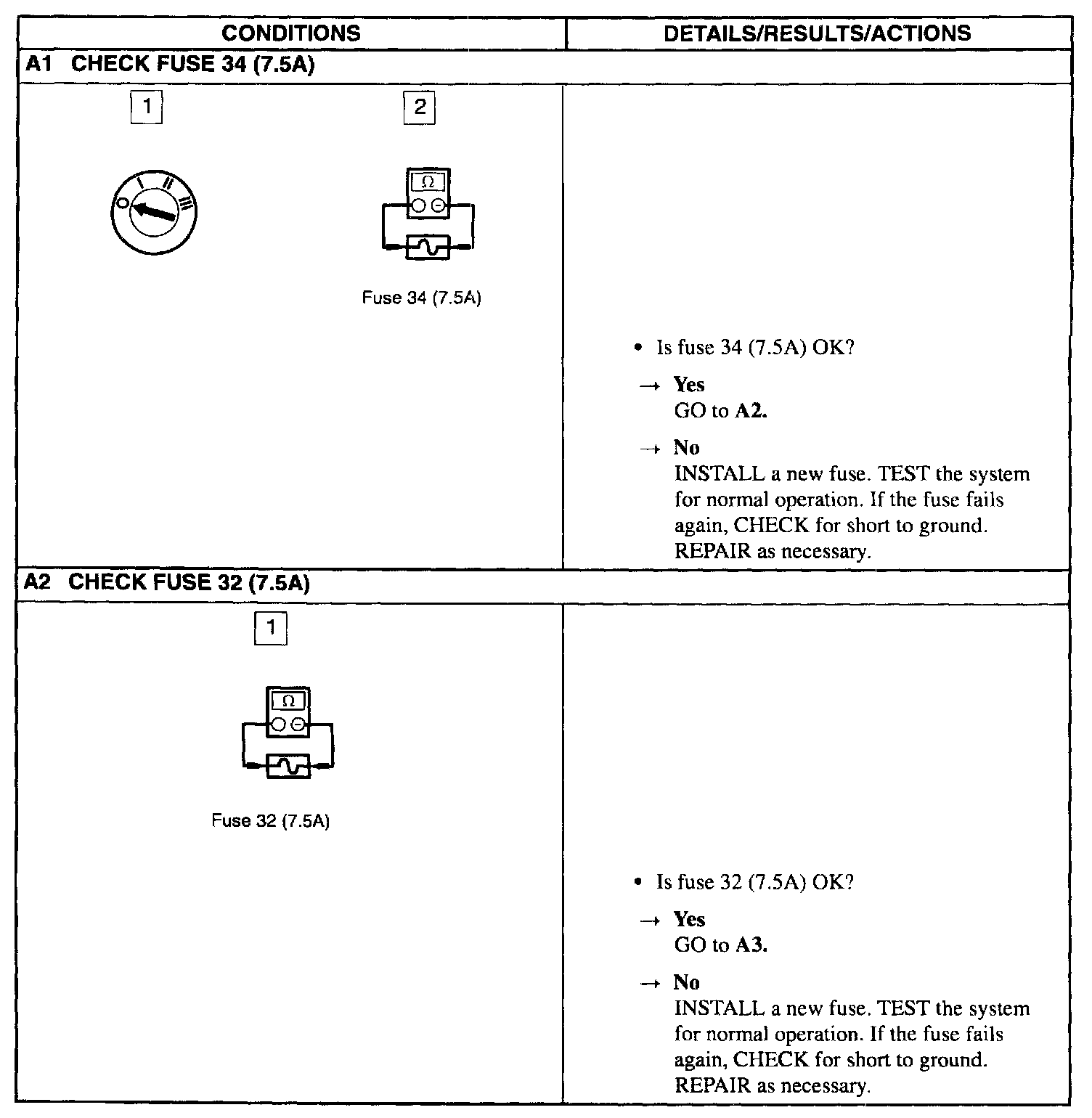

A1 - A2:

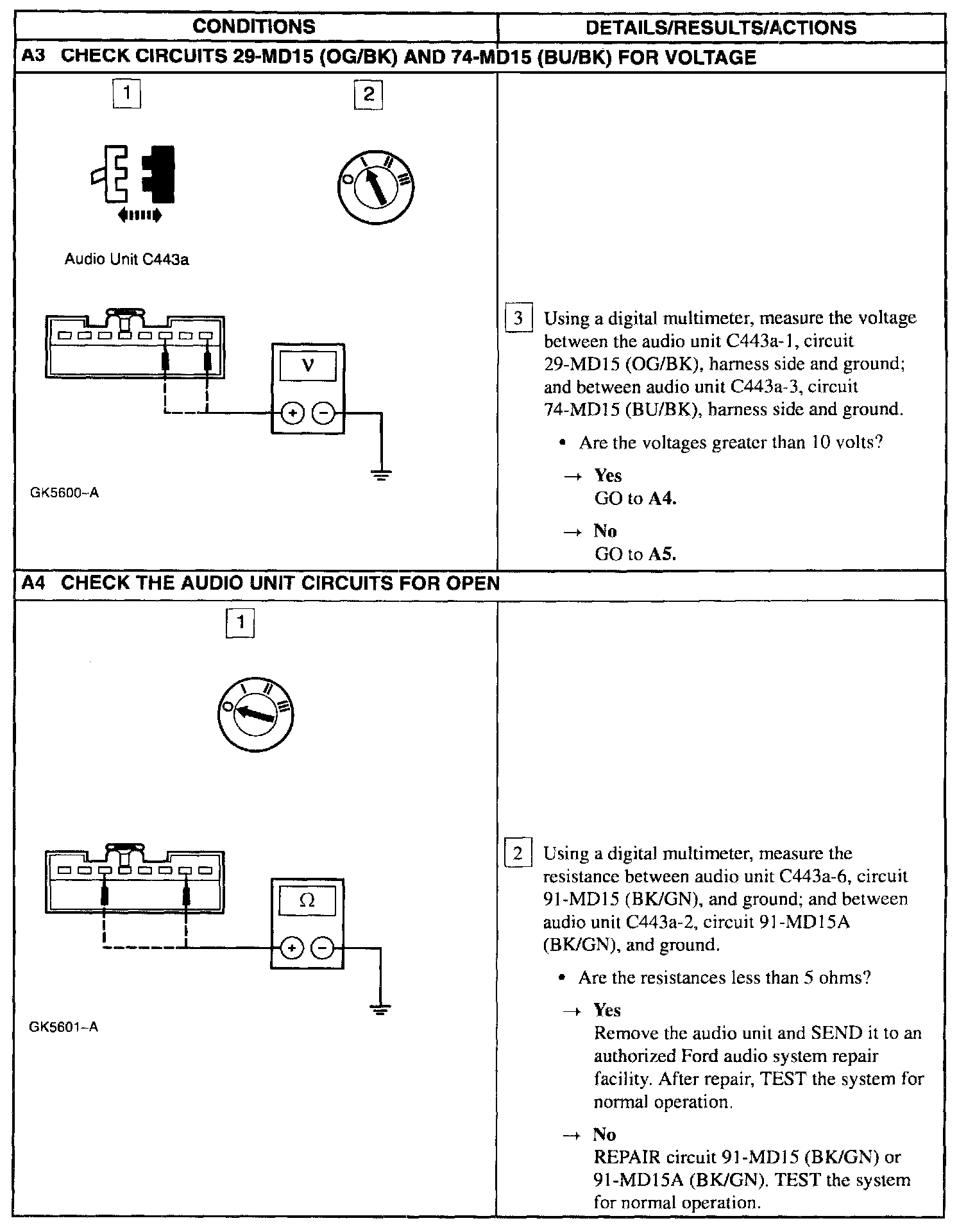

A3 - A4:

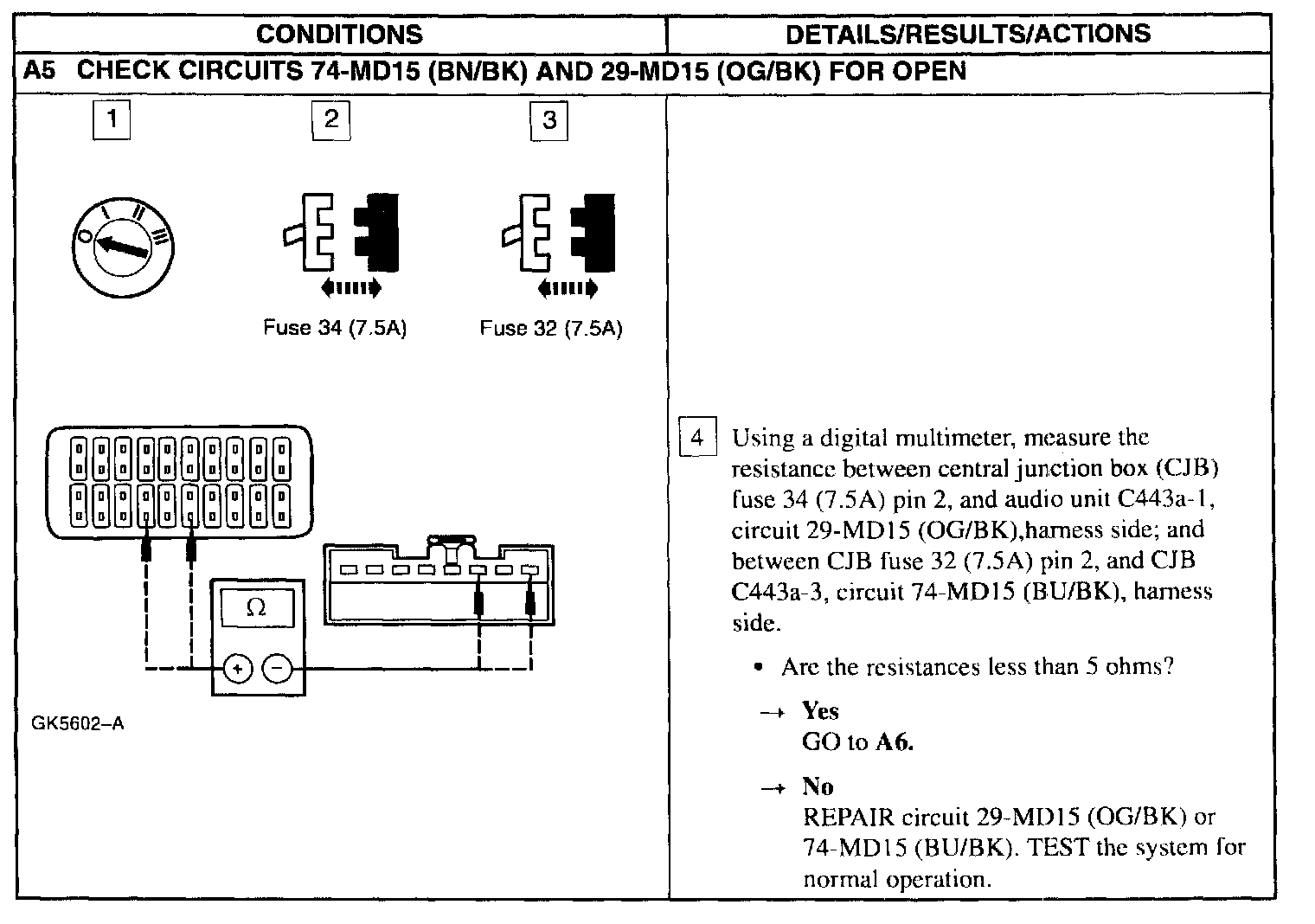

A5:

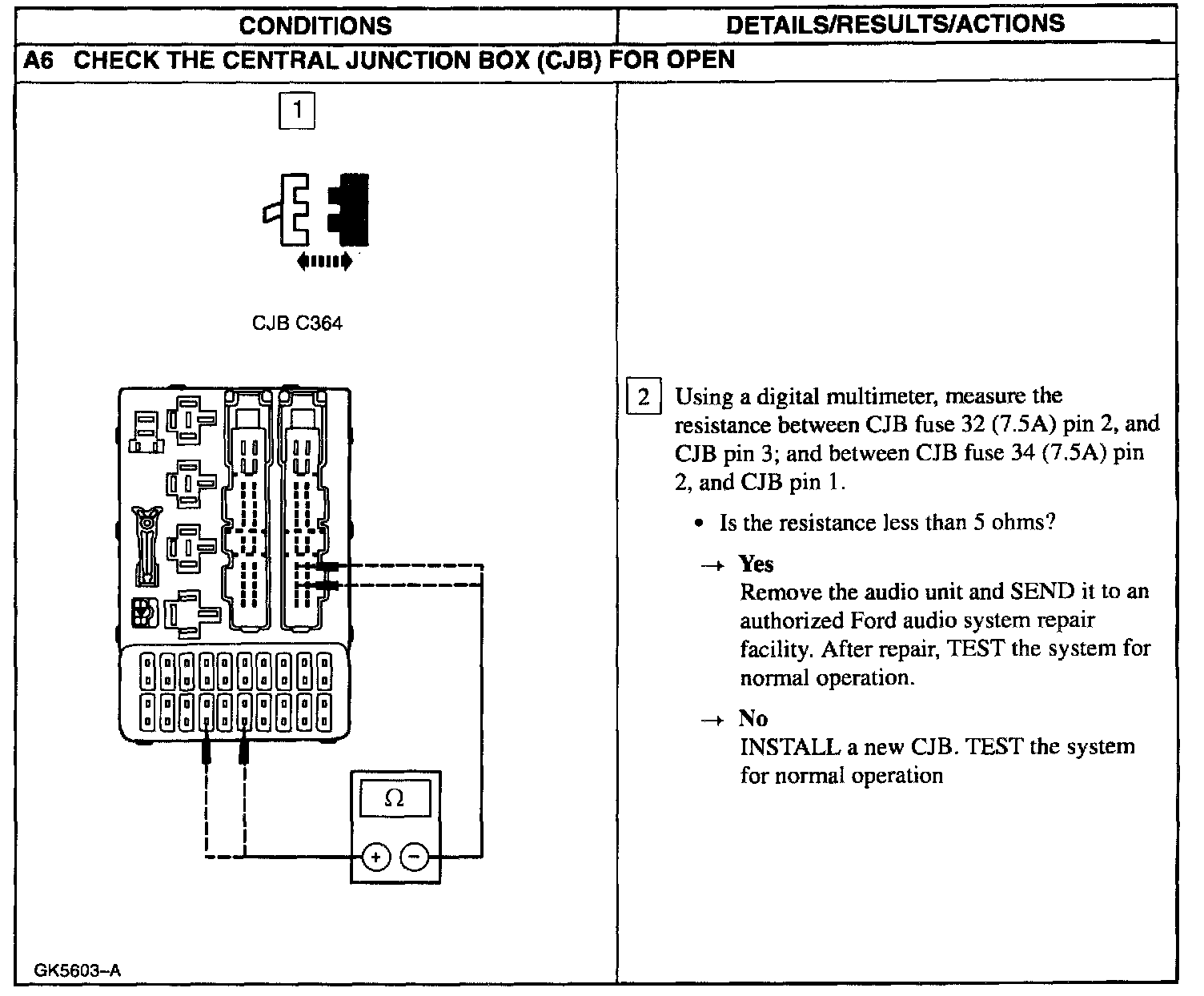

A6:
