Antenna, Electronic Door Lock Control Module

REMOVAL
1. Remove the glove compartment.
2. Remove the A-pillar trim panel.

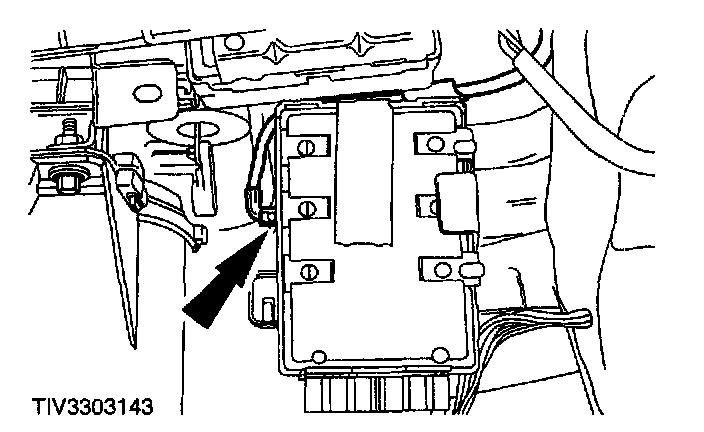

3. Disconnect the antenna from the electronic door lock control module.







4. Remove the antenna.

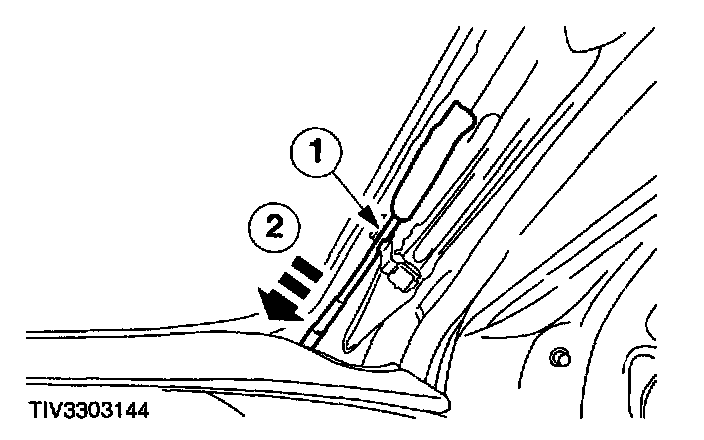

1 Detach the antenna from the retaining clip.
2 Remove the antenna by pulling downwards.

INSTALLATION
1. To install, reverse the removal procedure.
