Alarm Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

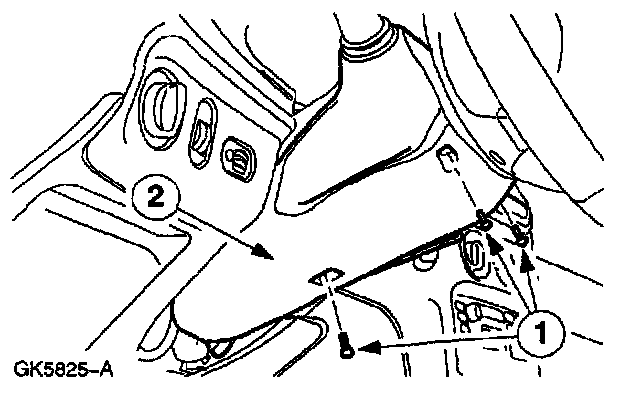

2. Remove the steering column lower shroud.
1 Remove the screws.
2 Remove the lower shroud.

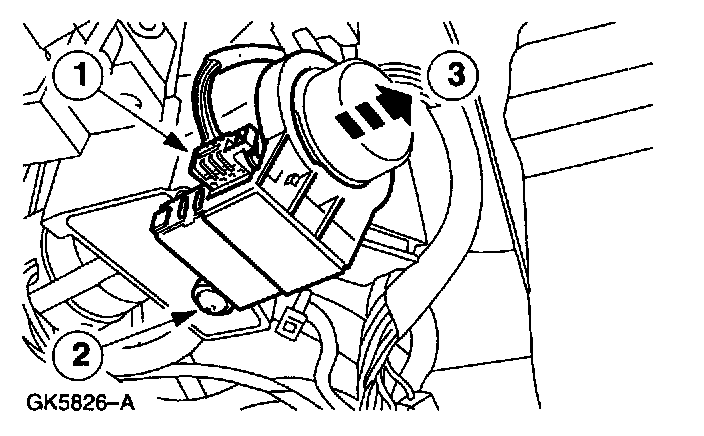

3. Remove the transceiver.
1 Disconnect the electrical connector.
2 Remove the screw.
3 Remove the transceiver.

INSTALLATION
1. To install, reverse the removal procedure.
