Windshield Washer Pump: Service and Repair

REMOVAL
1. Remove the air cleaner assembly.

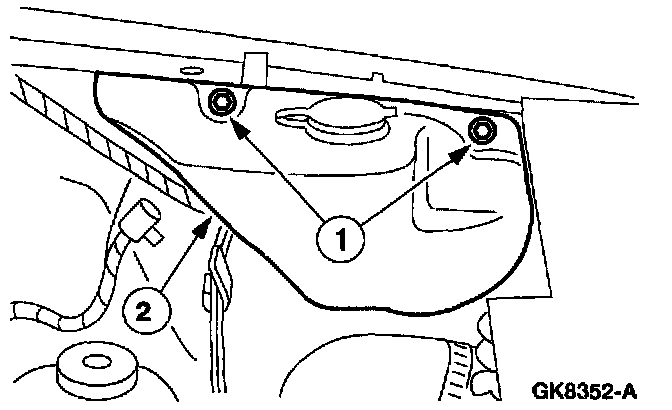

2. Position the pump and reservoir aside.
1 Remove the bolts.
2 Position the pump and reservoir aside.

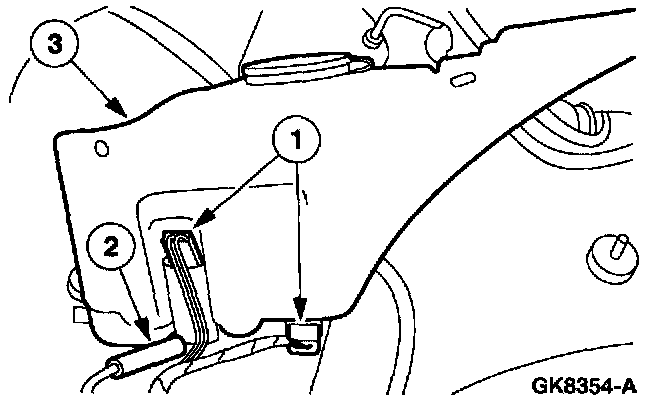

3. Remove the washer pump and reservoir.
1 Disconnect the electrical connectors.
2 Disconnect the washer hose.
3 Remove the pump and reservoir.

WARNING: WINDSHIELD WASHER SOLUTION CONTAINS METHANOL WHICH IS POISONOUS. OBSERVE ALL CAUTIONS AND WARNINGS INDICATED ON LABEL OF WASHER SOLUTION CONTAINER.

NOTE: Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.

4. Remove the washer pump.

INSTALLATION
1. To install, reverse the removal procedure.
