Front Door Window Regulator: Service and Repair

REMOVAL
1. Remove the front door trim panel.

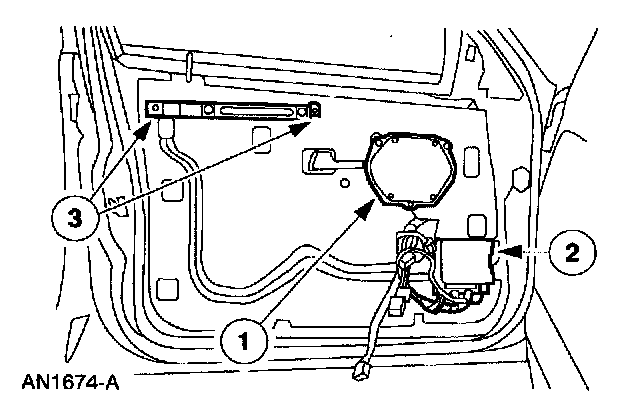

2. Position the watershield out of the way.
1 Remove the speaker.
2 Remove the driver door module.
3 Position the watershield out of the way.
3. Remove the front door window glass.

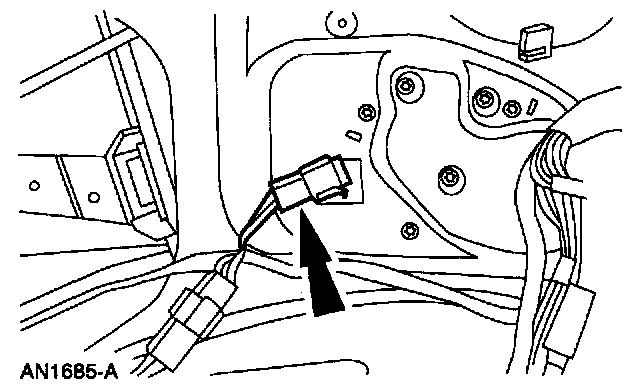

4. Disconnect the connector.

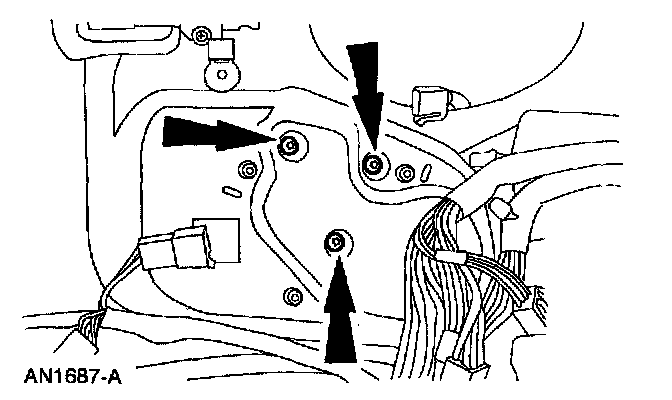

5. Remove the rivets.

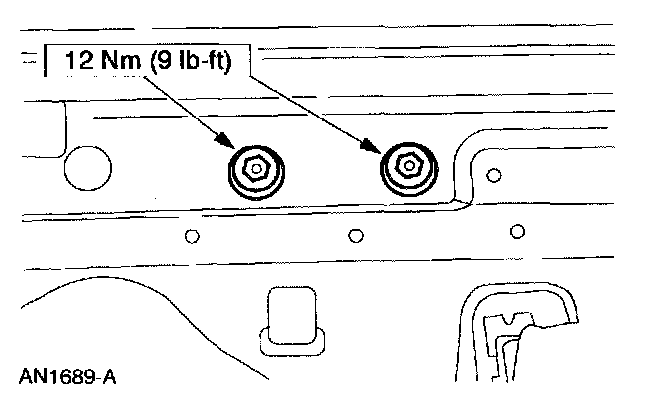

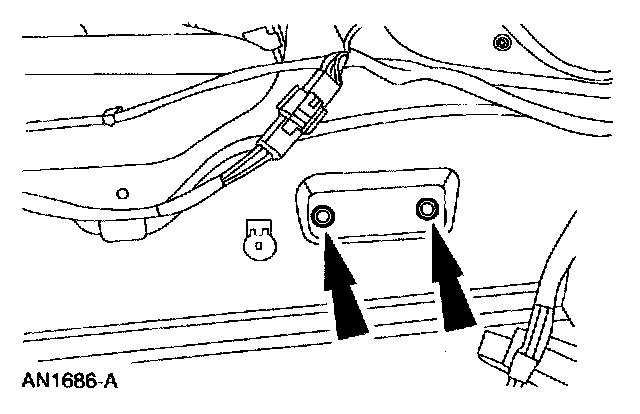

6. Remove the Torx (R) screws.

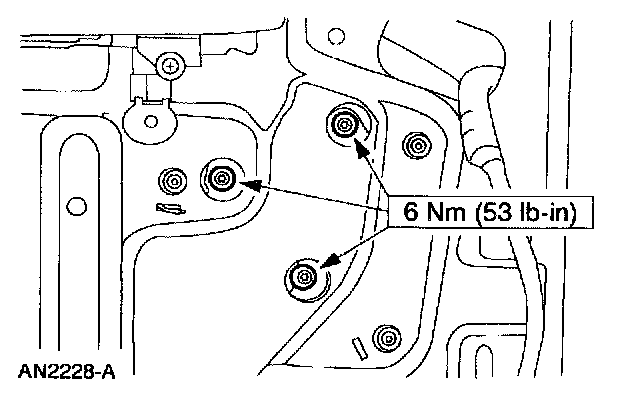

7. Remove the nuts.
8. Remove the regulator.

INSTALLATION












1. To install, reverse the removal procedure.
