Quarter Window Glass: Service and Repair

REMOVAL
1. Remove the rear door trim panel.







2. Remove the pull strap handle.







3. Remove the watershield.

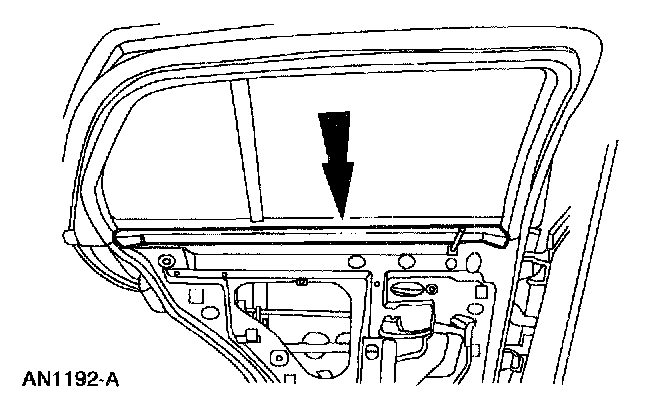

4. Remove the interior weather strip.
5. Remove the rear door window glass.

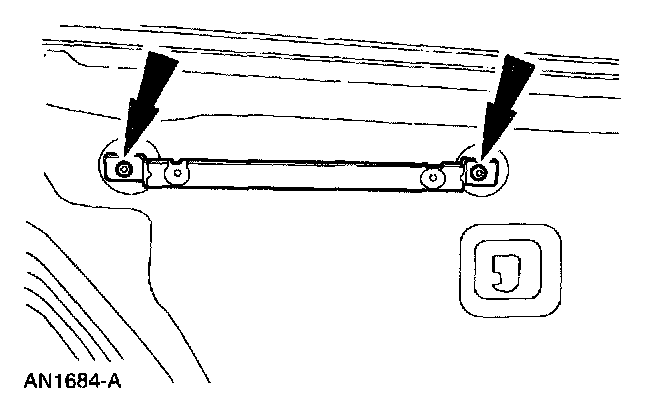

6. Remove the rear door window garnish moulding.

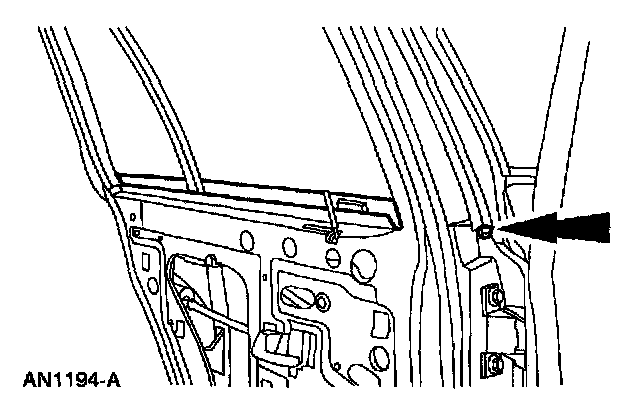

7. Remove the exterior weatherstrip.

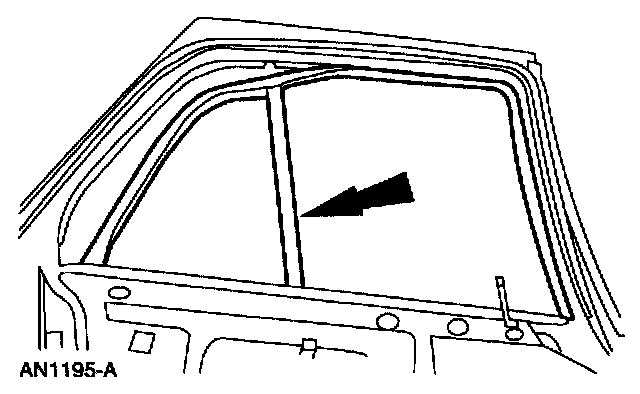

8. Remove the rear door top glass run and quarter window glass as an assembly.

NOTE: Pull the quarter glass forward to loosen the rear door top glass run assembly.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Make sure to install the quarter window glass into the glass channel.
