Front Door Window Motor

REMOVAL
1. Remove the front door trim panel.
2. Position the front door window glass in the full up position and secure with tape.
3. Disconnect the battery ground cable.

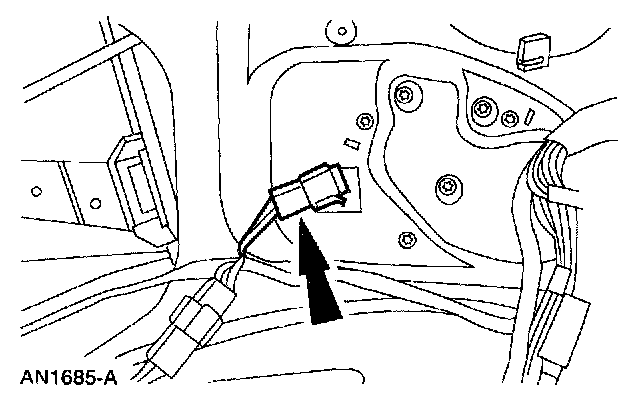

4. Disconnect the connector.







5. Remove the rivets.







6. Remove the Torx (R) screws.

NOTE: Working through the access hole, remove the motor bracket from the inner panel and slide the motor rear to the access hole in the door.

7. Separate the window regulator motor from the front door window regulator and remove it from the front door.

INSTALLATION







1. Install the screws.

NOTE: Position the window regulator motor to the front door window regulator.

2. Install the three rivets.

NOTE: Position the window regulator motor on the inner panel.







3. Connect the connector.
4. Connect the battery ground cable.
5. Remove the tape from the front window.
6. Check the front door window glass for correct operation.
7. Install the front door trim panel.
