Shift Indicator - A/T: Adjustments

1. Remove the upper instrument panel steering column cover.
2. Place the transmission range selector lever in the OD position.
^ Rotate the transmission range selector lever clockwise until it bottoms out (first gear), then rotate two detents counterclockwise (OD position).
3. Hang a 1.36 Kg (3 lbs.) weight on the range selector lever.





4. Center the pointer in the middle of the OD position.

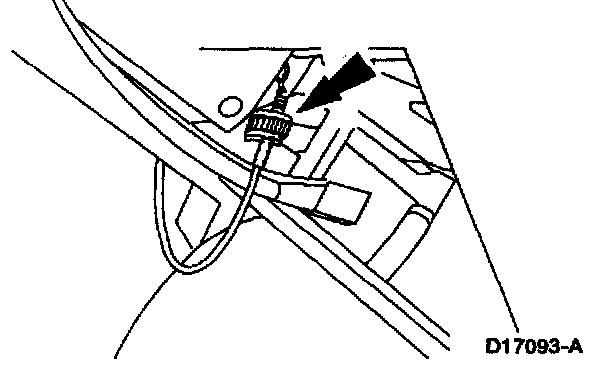

^ Rotate the thumbwheel located on the bottom of the steering column to adjust the pointer.
5. Remove the 1.36 Kg (3 lbs.) weight.
6. Carefully move the shift range selector lever from detent to detent and compare with transmission settings.
^ Re-adjust if necessary.
7. Install the upper instrument panel steering column cover.
