Seals and Gaskets: Service and Repair

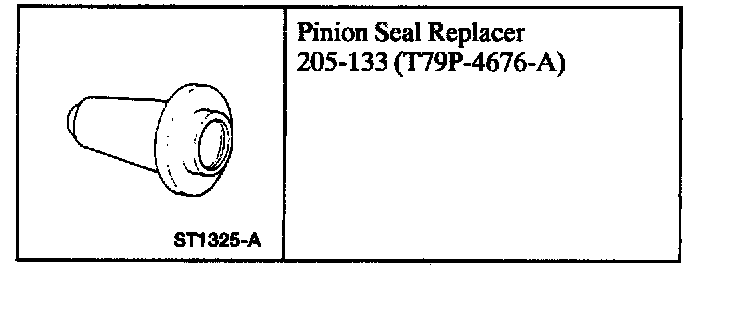

Special Tools:

Removal
1. Remove the pinion flange.

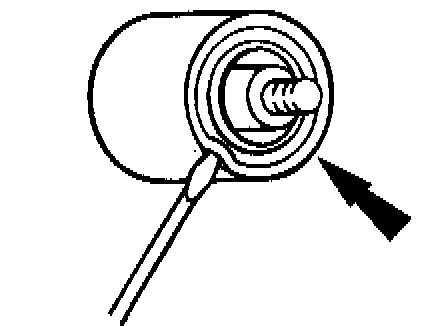

2. Using a screwdriver, force the metal flange of the rear axle drive pinion seal up and strike with a hammer. Install gripping pliers and remove.

Installation
1. Lubricate the new rear axle drive pinion seal.
^ Use Premium Long-Life Grease XG-l-C or equivalent meeting Ford specification ESA-MIC75-B.

CAUTION: If the rear axle drive pinion seal becomes misaligned during installation, remove the rear axle drive pinion seal and install a new seal.

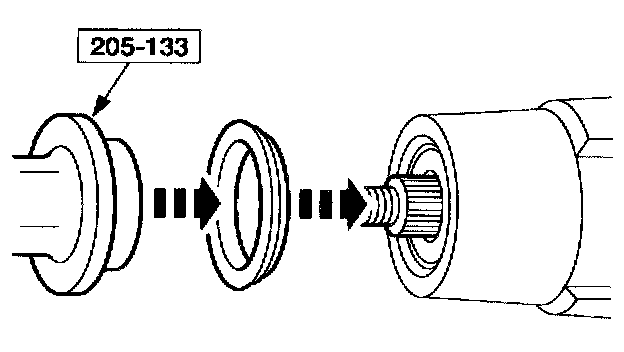

2. Using the special tool install the rear axle drive pinion seal.

3. Install the pinion flange.
