Removal and Installation

Removal





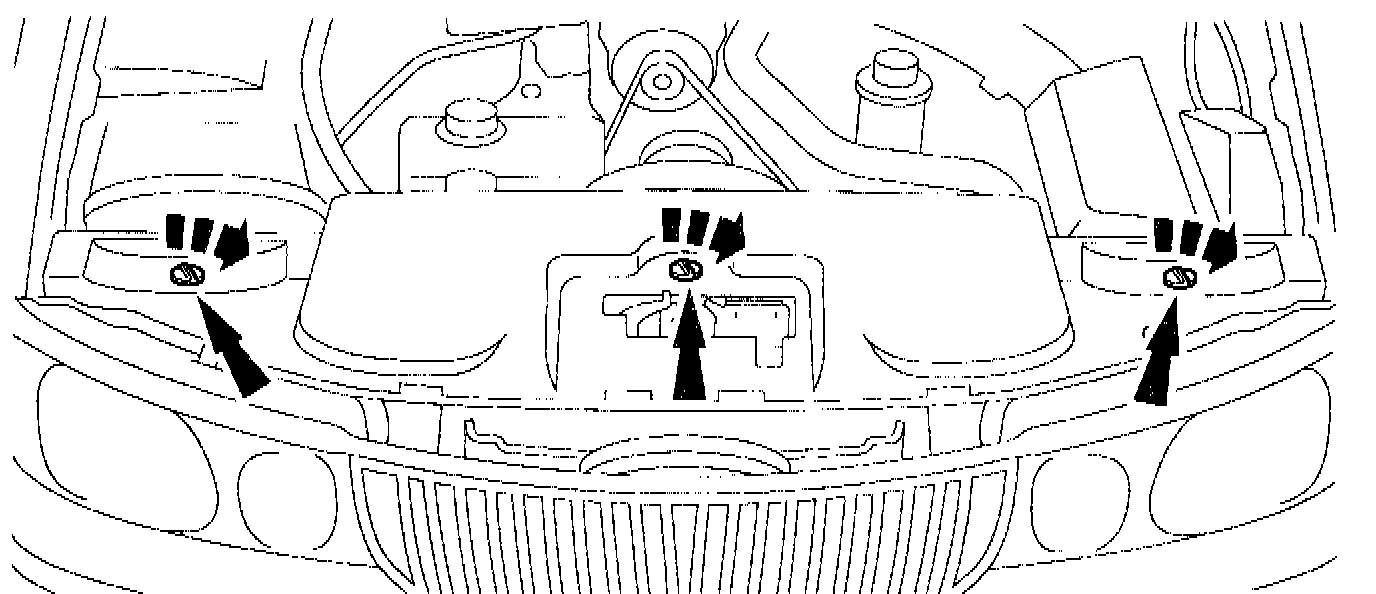

1. Remove the cover.
2. Remove the battery.
3. Remove the air filter assembly.

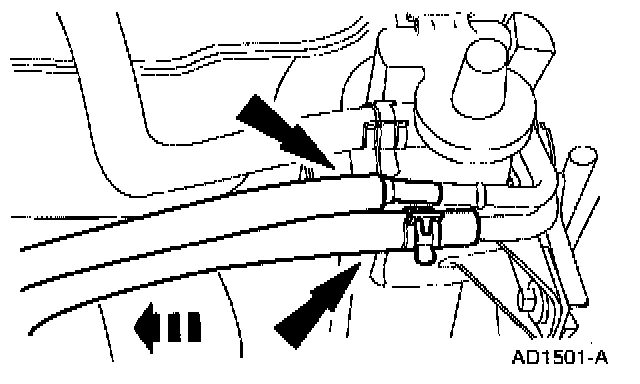

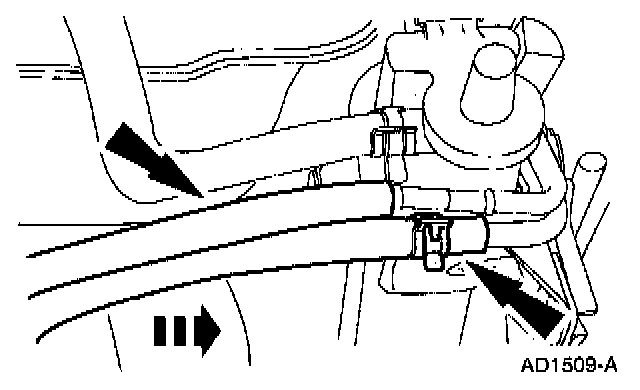

4. Disconnect the fluid cooler tube and the fluid cooler outlet tube at the transmission fluid cooler. Plug the fluid cooler outlet tube and the fluid cooler inlet tube to prevent contamination.

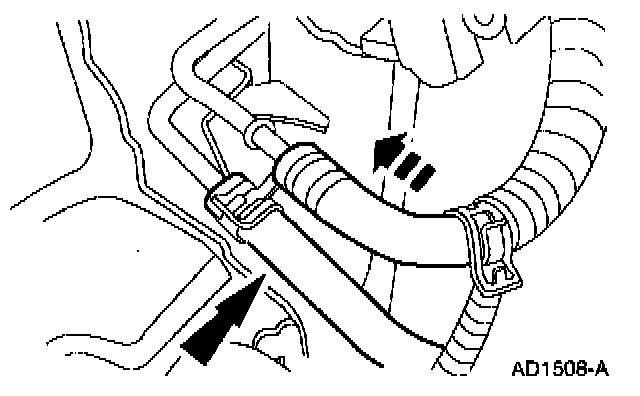

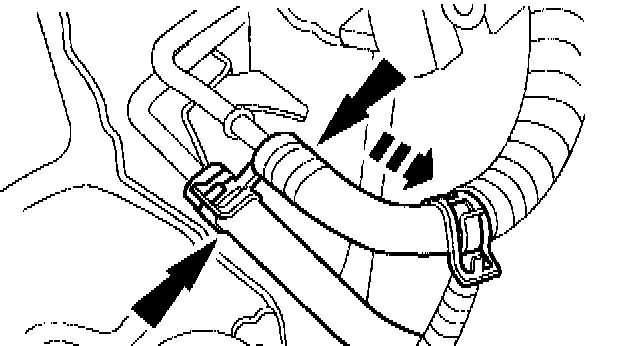

5. Disconnect the power steering cooler lines at the fluid cooler. Plug the power steering cooler lines to prevent contamination.





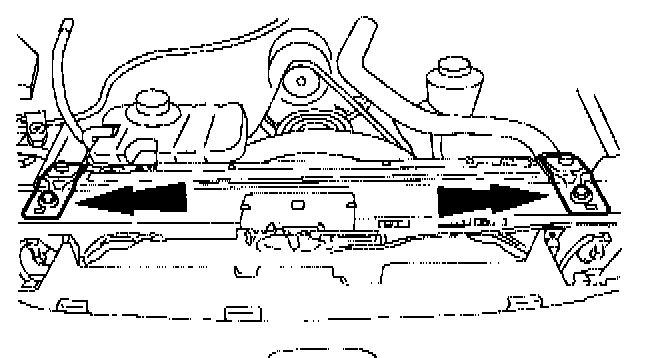

6. Remove the upper radiator mounts.

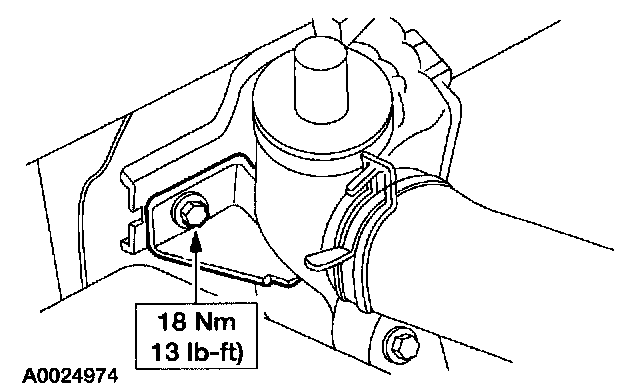

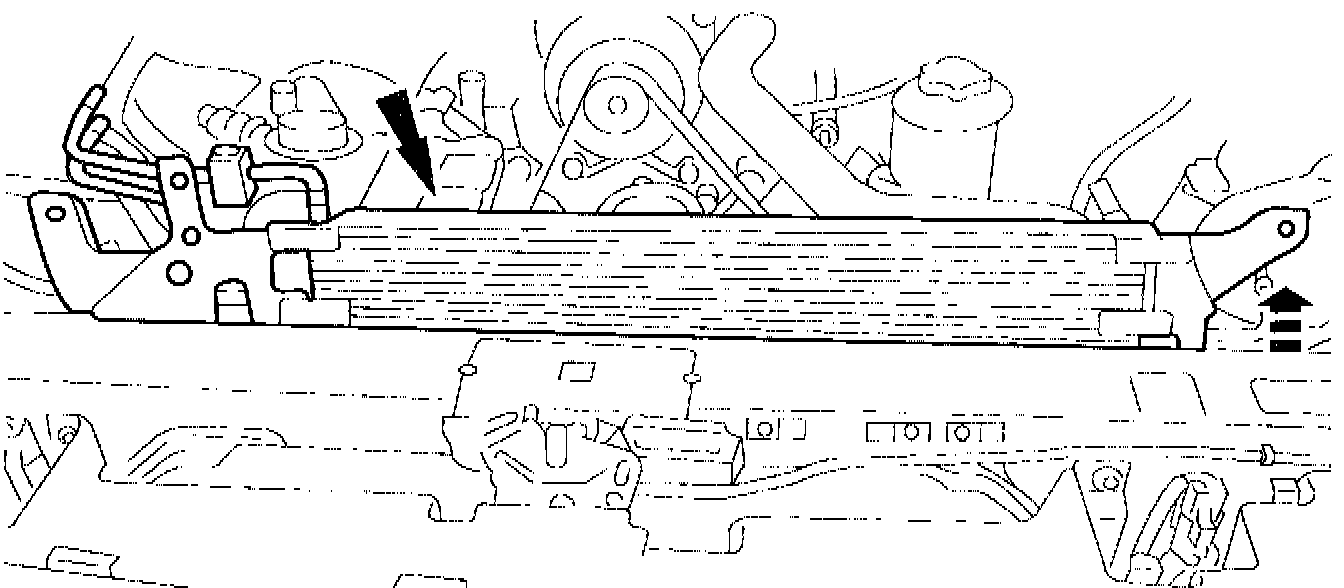

7. Remove the bolts and remove the fluid cooler.





Installation





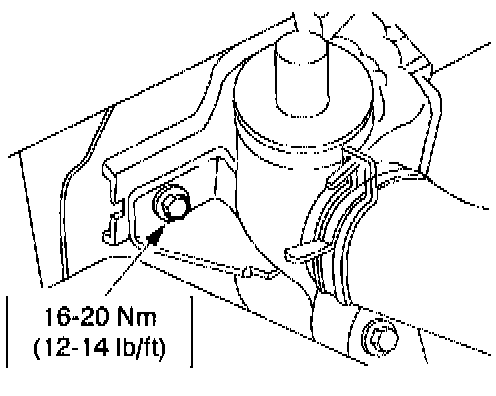

1. Install the fluid cooler.
^ Position the fluid cooler.
^ Install the screws.





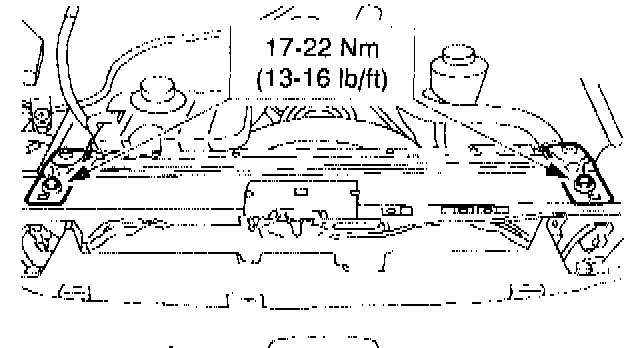

2. Install the upper radiator mounts and bolt





3. Connect the power steering lines to the fluid cooler.





4. Connect the fluid cooler inlet tube and the fluid cooler outlet tube to the fluid cooler.
5. Fill the power steering reservoir.
6. Install the air filter assembly.
7. Install the battery.
8. Fill the transmission fluid to the proper level using Motorcraft MERCON (R) V Automatic Transmission fluid XT-5-QM or equivalent meeting MERCON (R) V specification. Inspect for leaks.





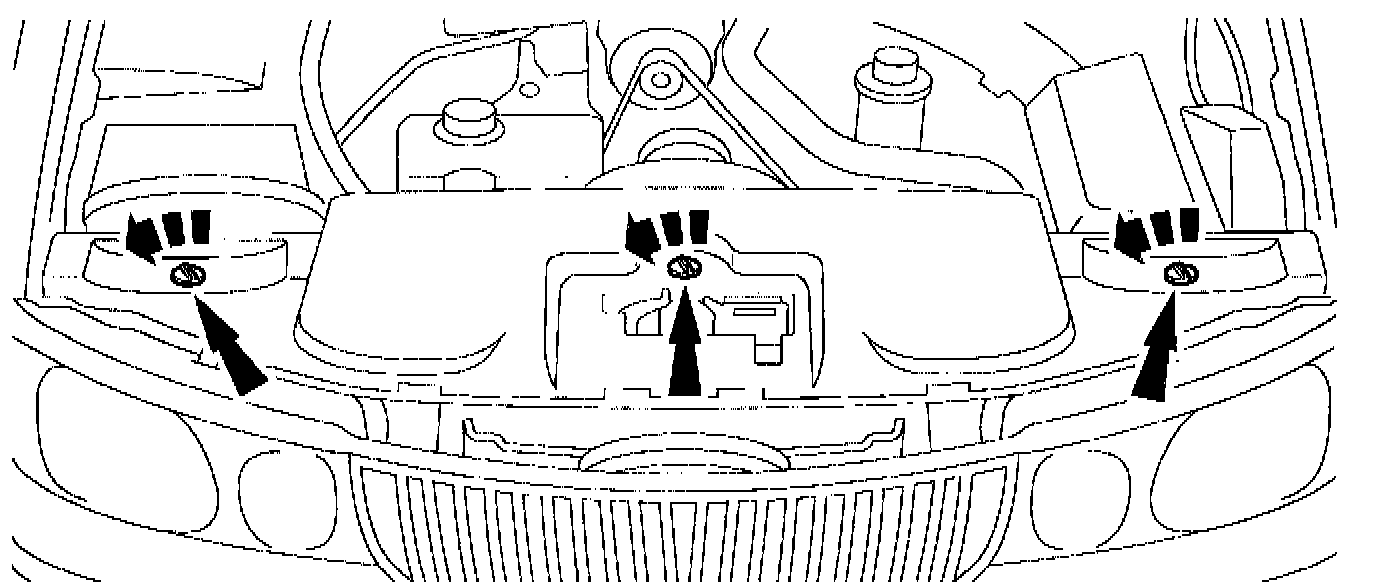

9. Install the radiator cover.
