Leakage Checks

Special Tools:

1. Clean the outside surface of the torque converter.





2. Install Torque Converter Leak Check Tool and Gasket into convert hub.

WARNING: Always follow proper safety procedures while using press.

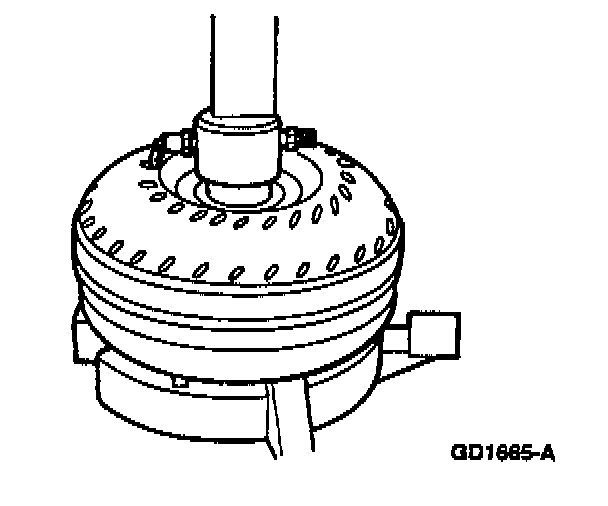

3. Install the torque converter with the installed leak check tool into the Arbor press.
Secure the press. Apply enough force from the press to seal tool into the torque converter.

NOTE: Use clean dry shop air.

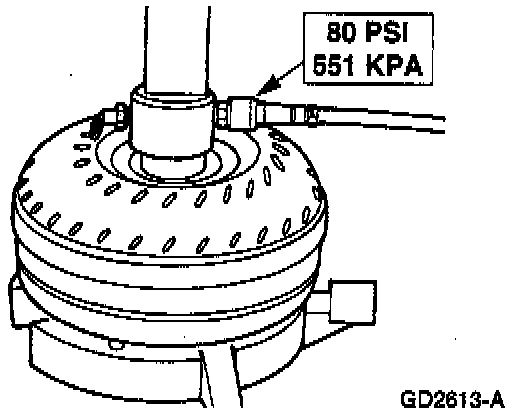

4. Apply air pressure to valve on leak check tool.





5. With air pressure applied to valve, inspect for leaks at converter hub, seams and studs. A soap bubble solution may be applied around those areas to aid in diagnosis. If leaks are present, replace converter.





6. Remove air hose. Release pressure and then slowly release press. Remove converter. Remove tool.
