End Play Check

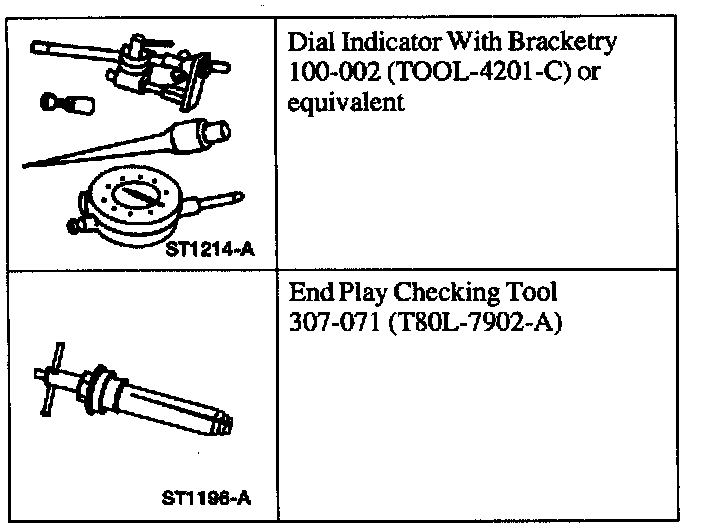

1. Insert End Play Checking Tool into the torque converter pump drive.

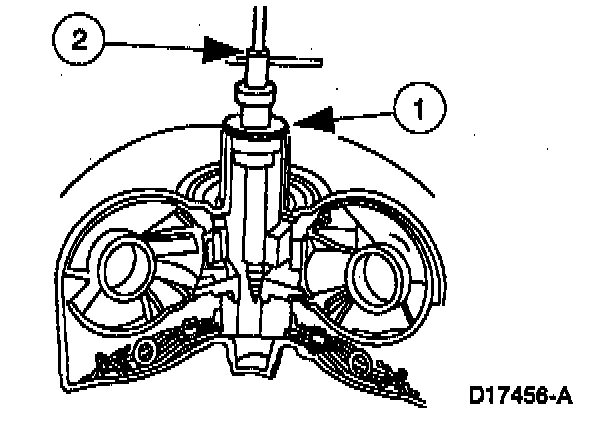

1. Position End Play Checking Tool.
2. Tighten the inner post until the tool is securely locked.





2. Attach Dial Indicator With Bracketry to End Play Checking Tool.
^ Position the dial indicator bottom on the converter pump drive hub and zero the dial.

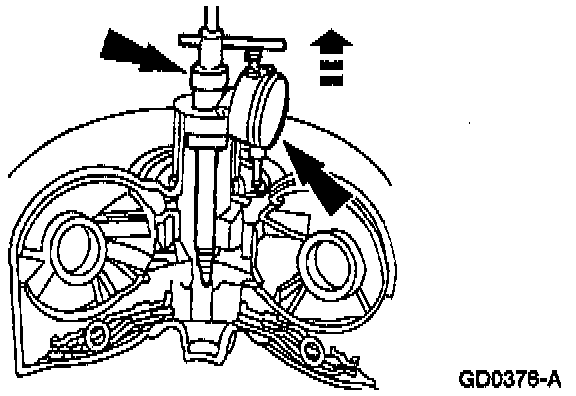

3. Lift up on End Play Checking Tool and note the dial indicator reading.

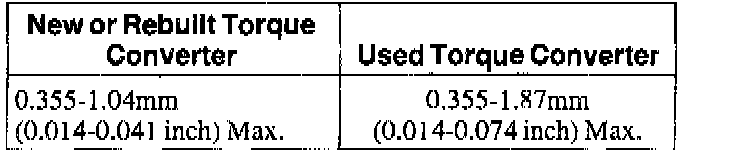

^ If the reading exceeds end play limits, replace the torque converter.
4. Remove the dial indicator and tool.
