C: Trans Control Switch Is Not Operating Properly
C: Trans Control Switch Is Not Operating Properly

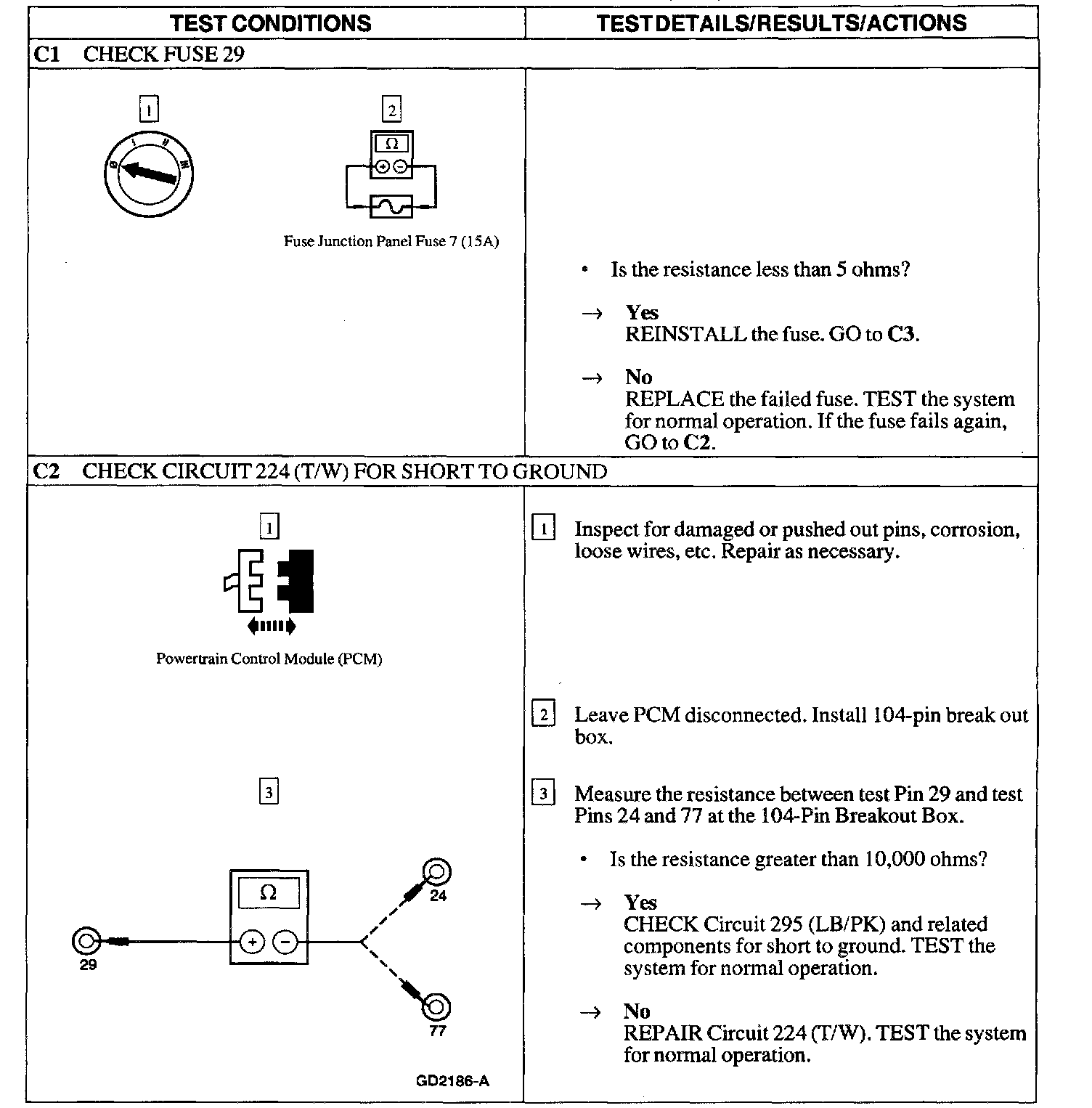

C1 - C2:

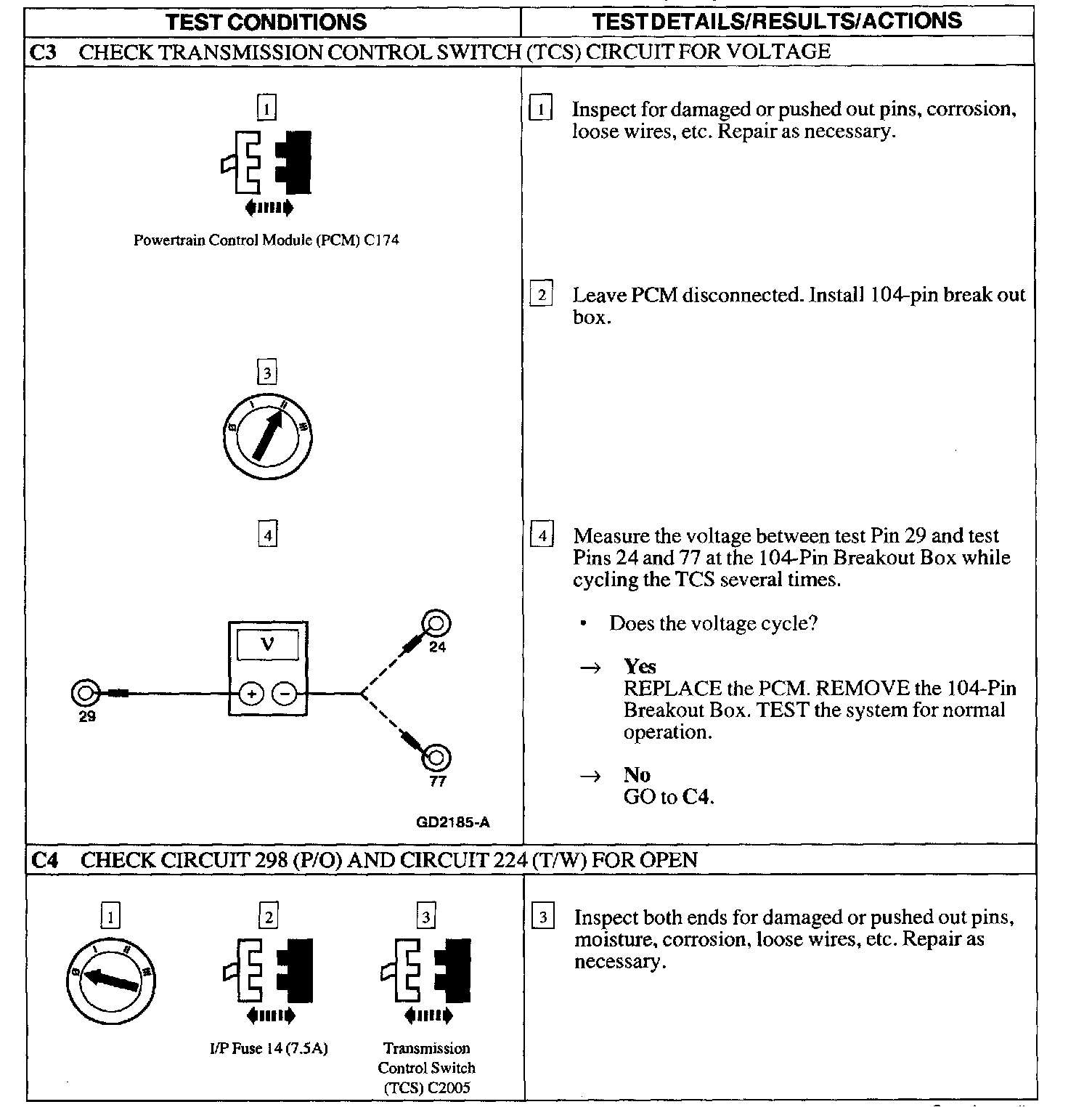

C3 - C4:

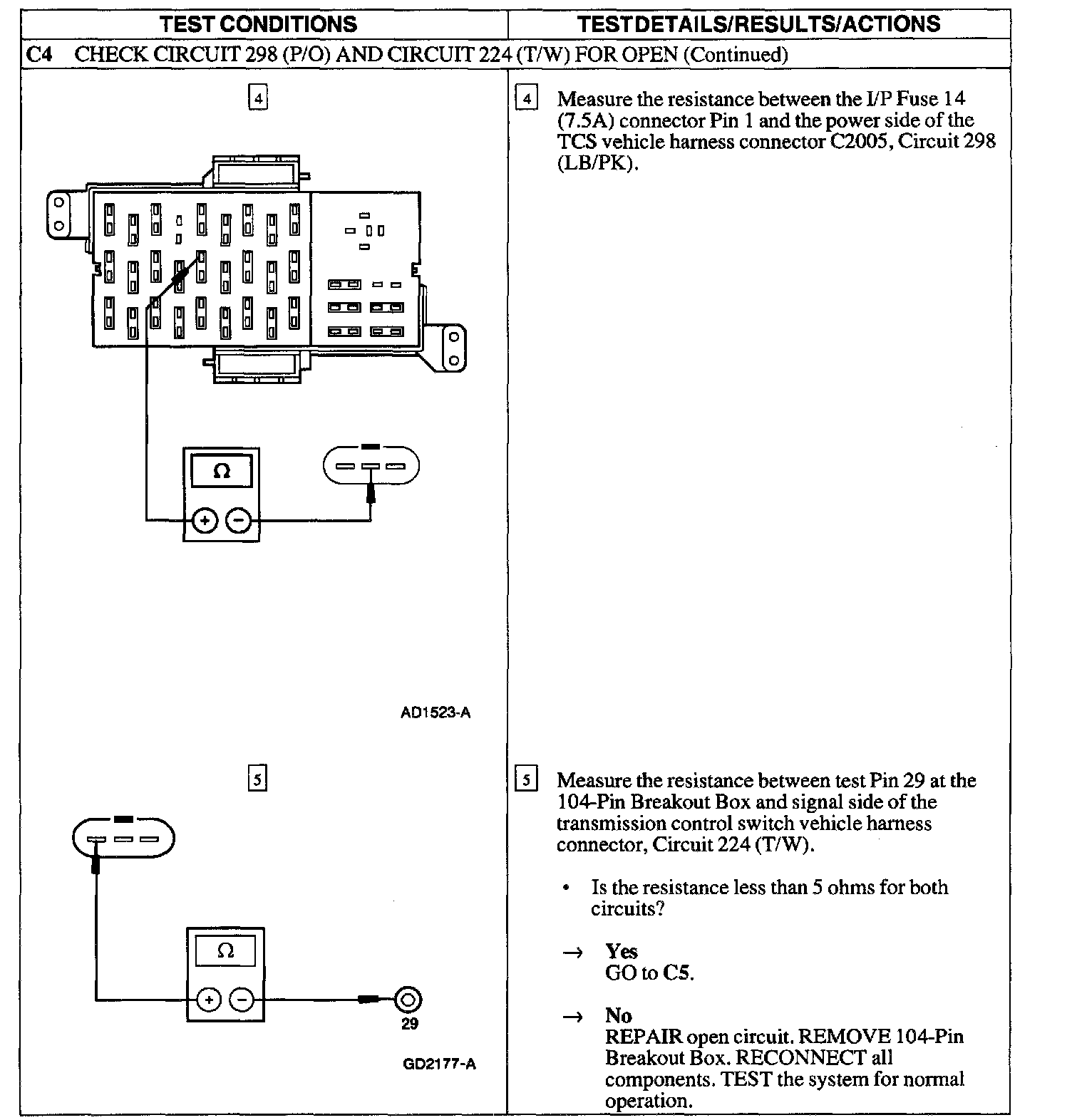

C4:

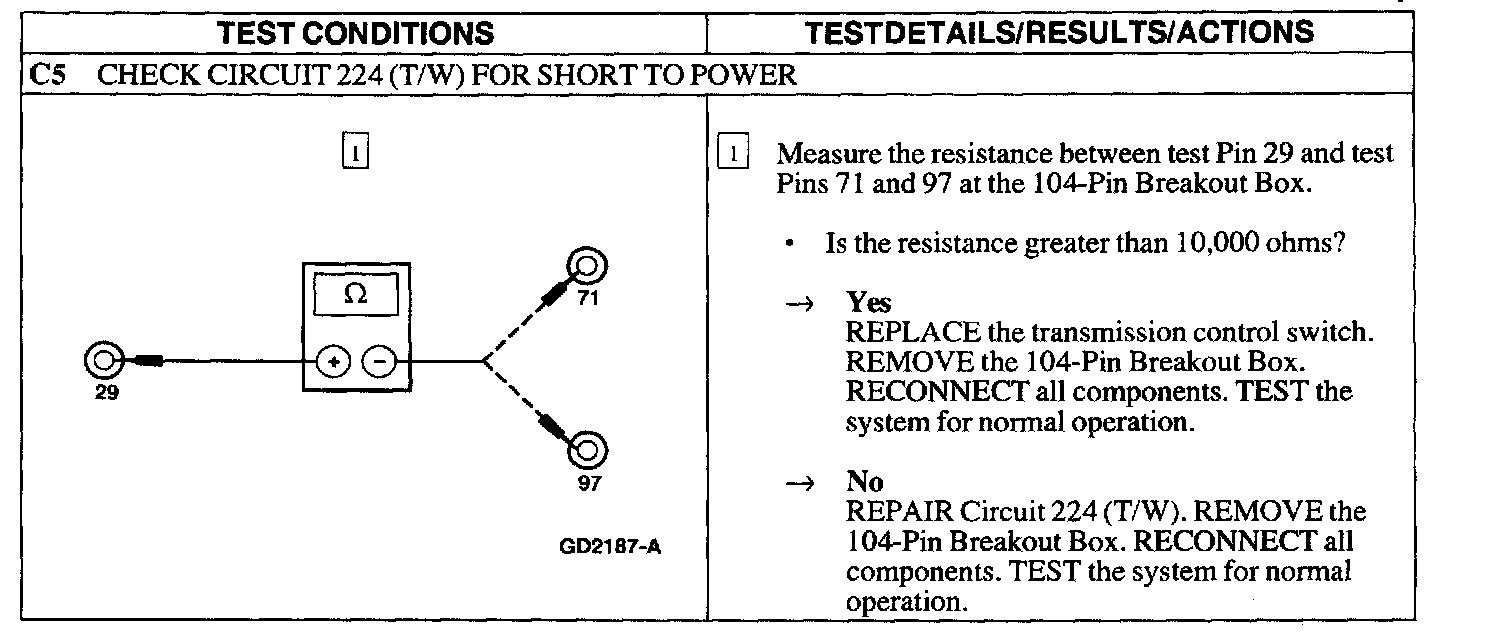

C5:
Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative
