Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> A: Shift Interlock System Does not Release/Lock Correctly

A: Shift Interlock System Does not Release/Lock Correctly

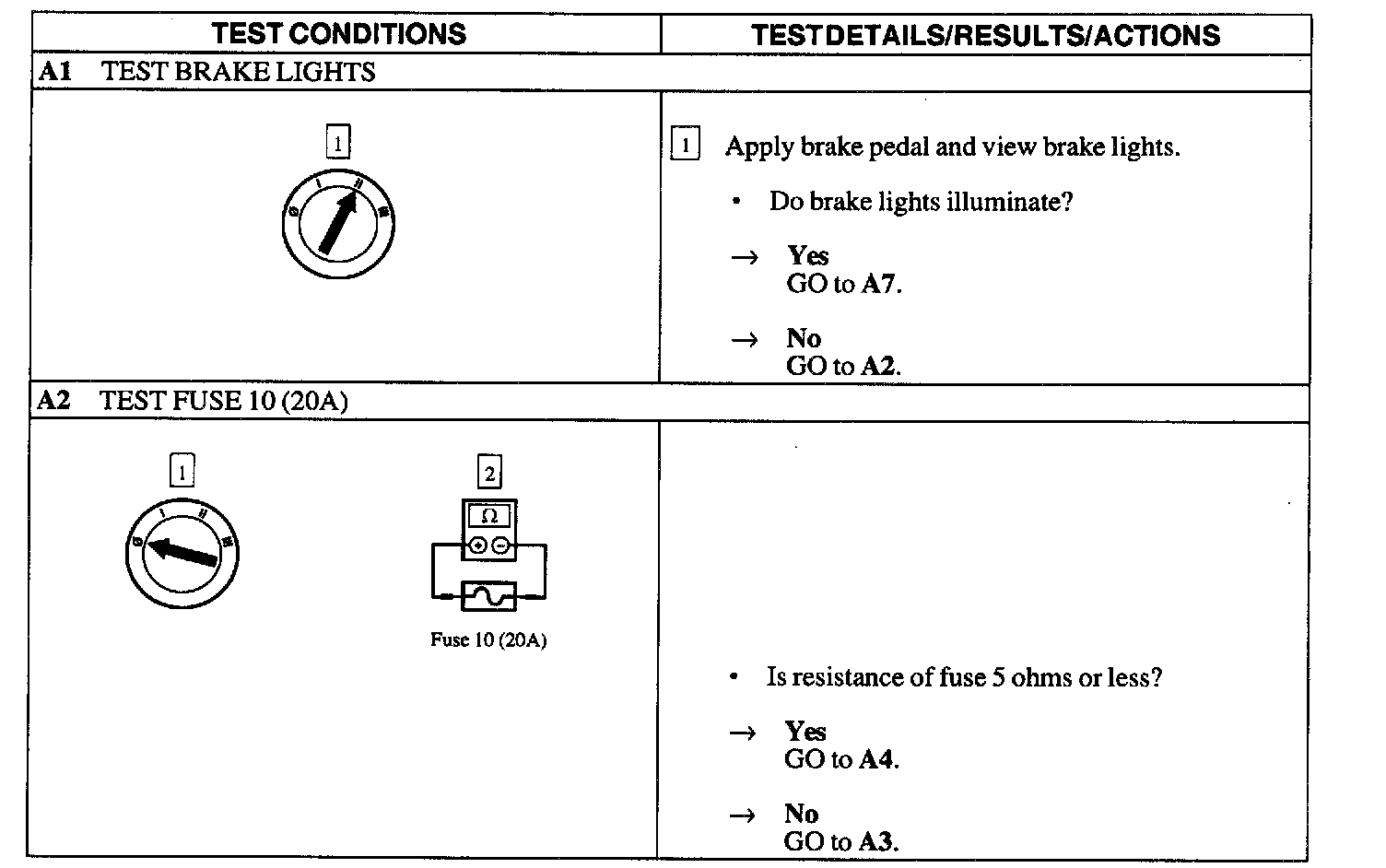

A1 - A2:

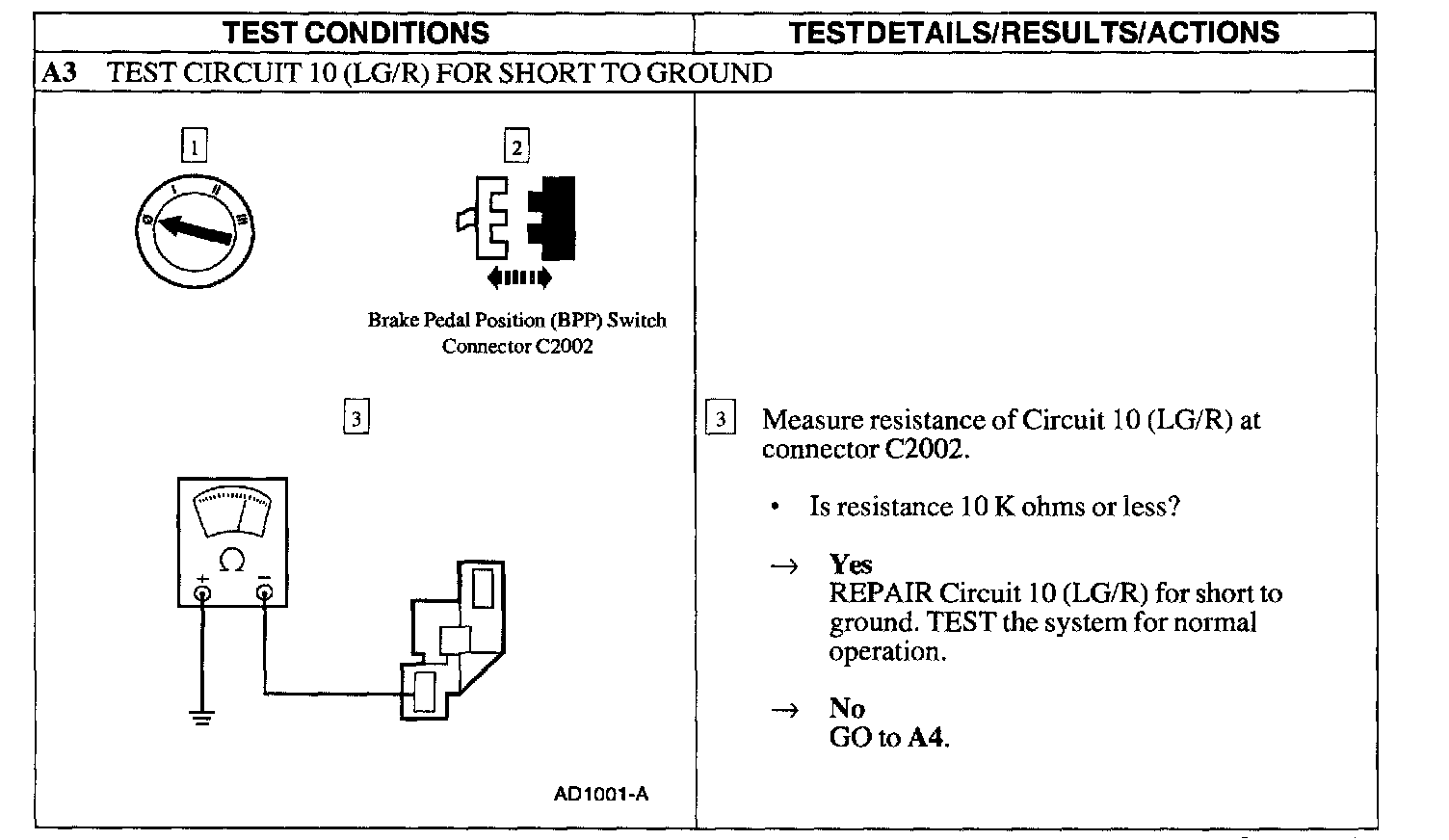

A3:

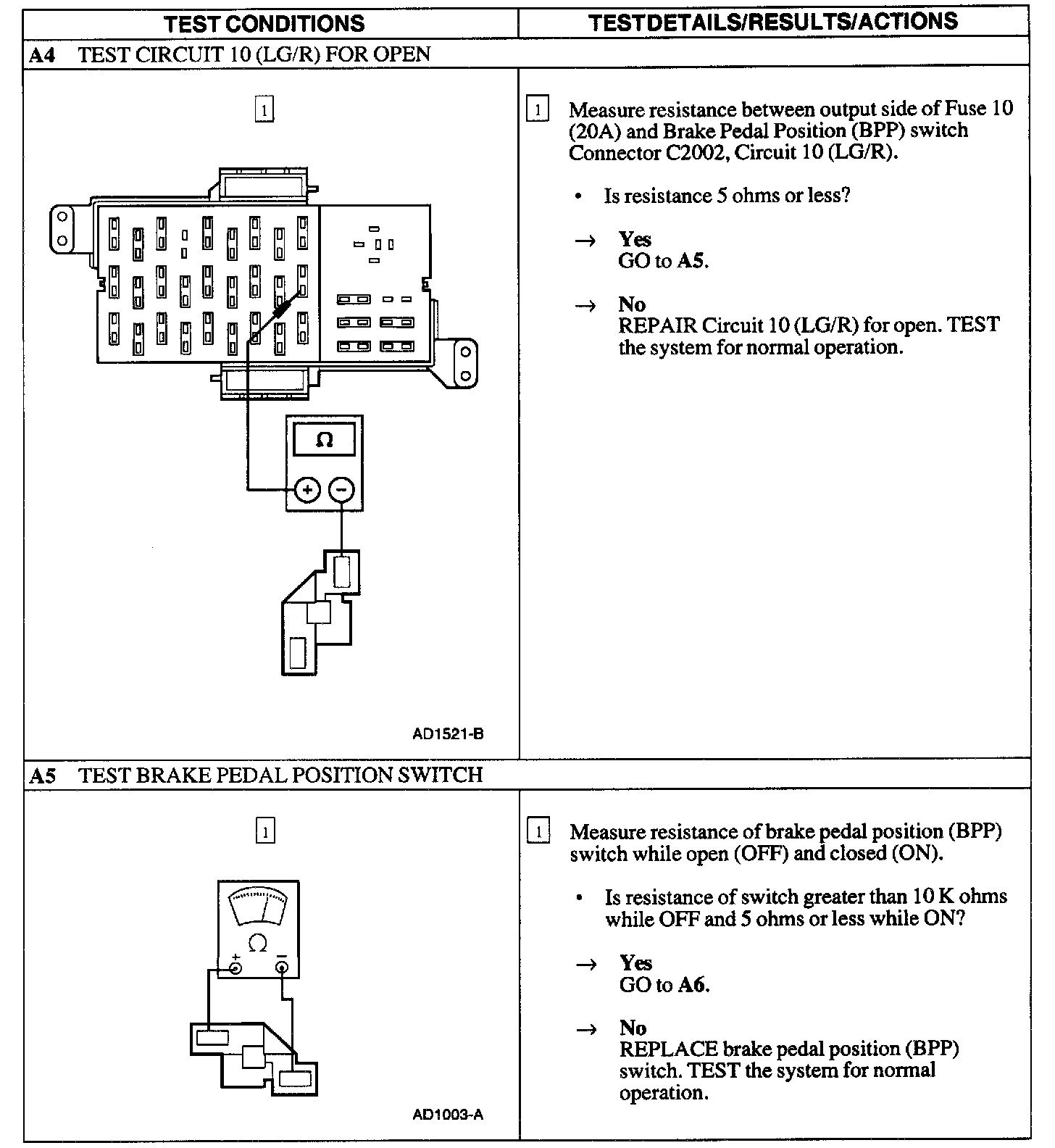

A4 - A5:

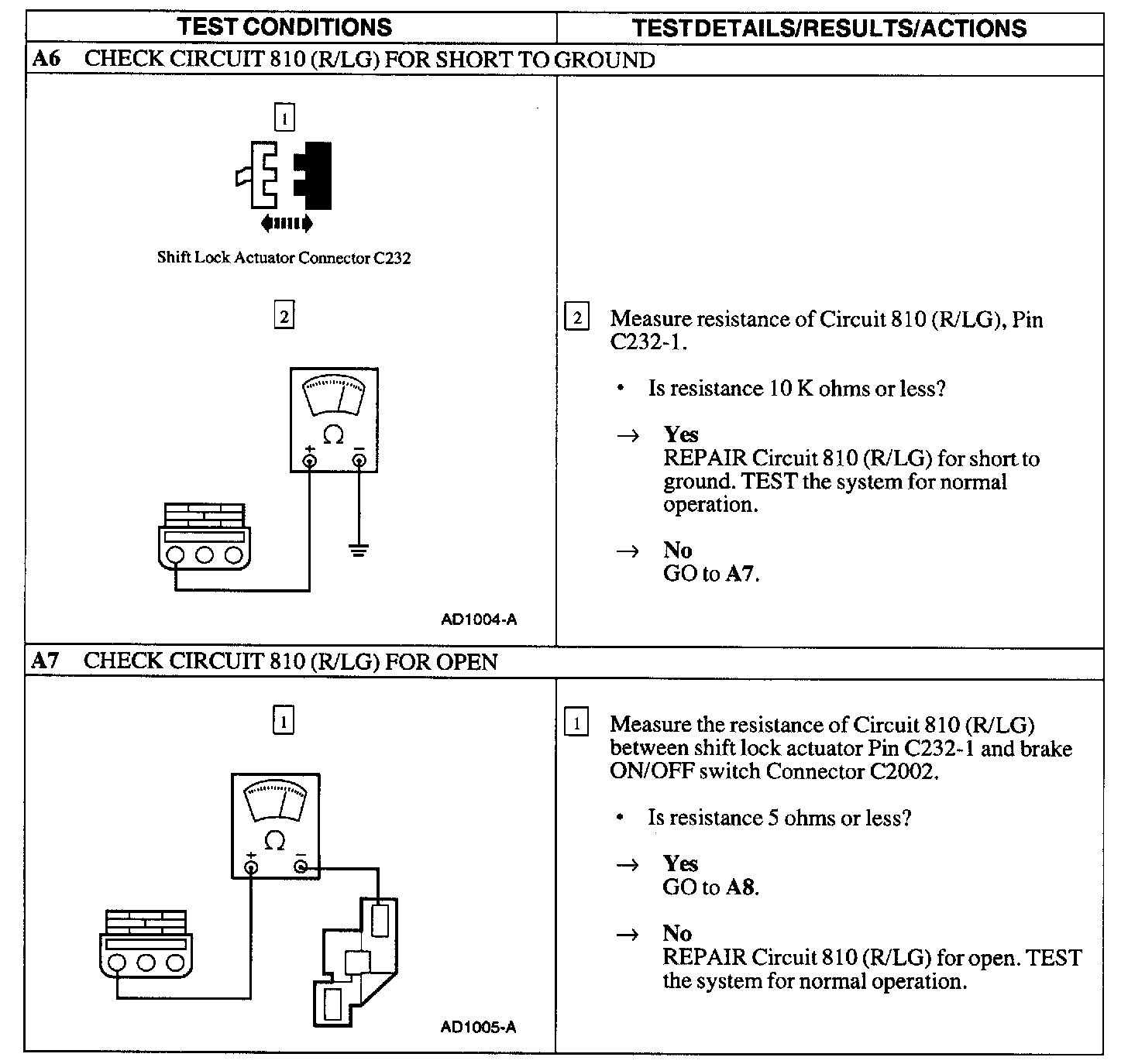

A6 - A7:

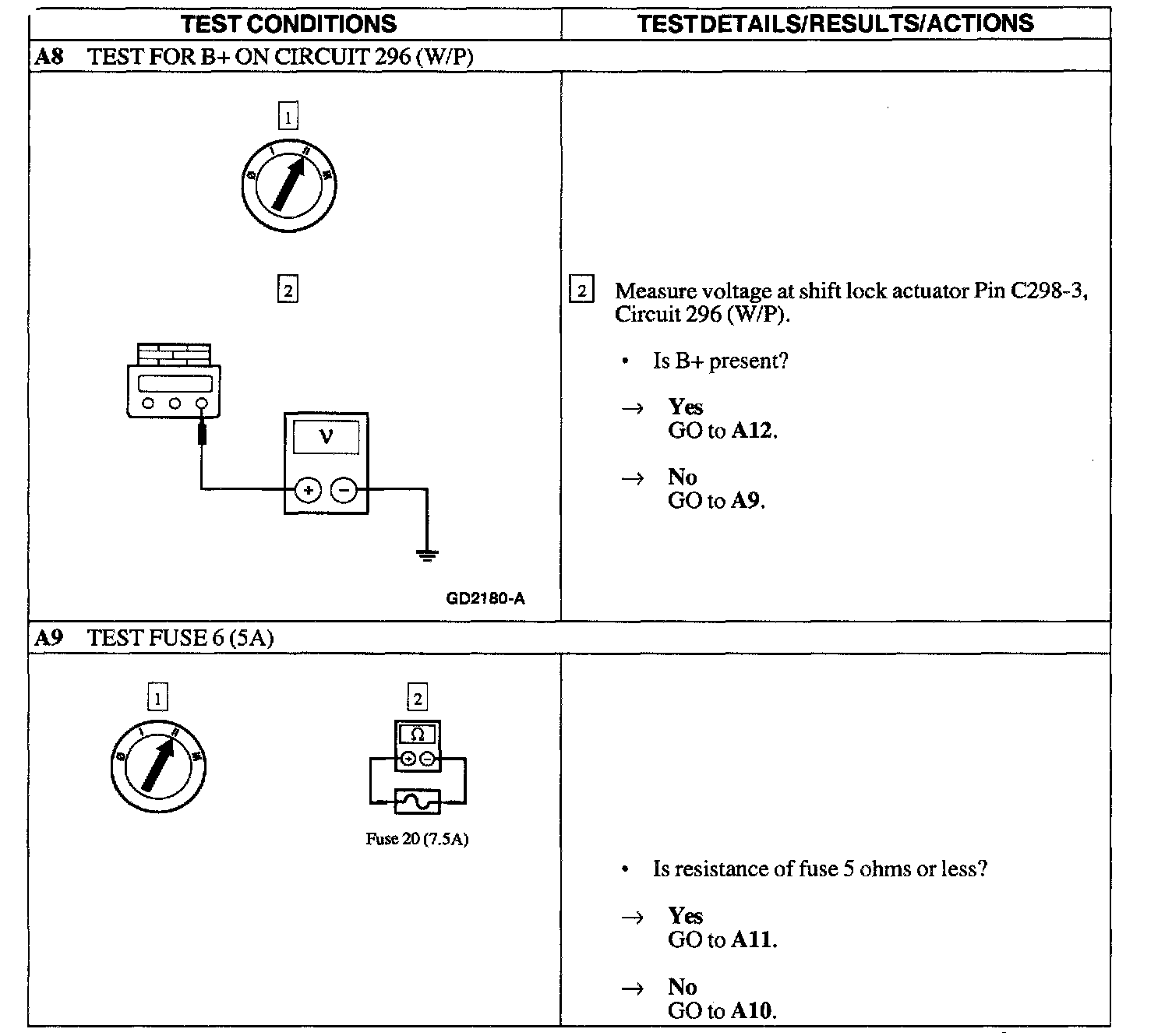

A8 - A9:

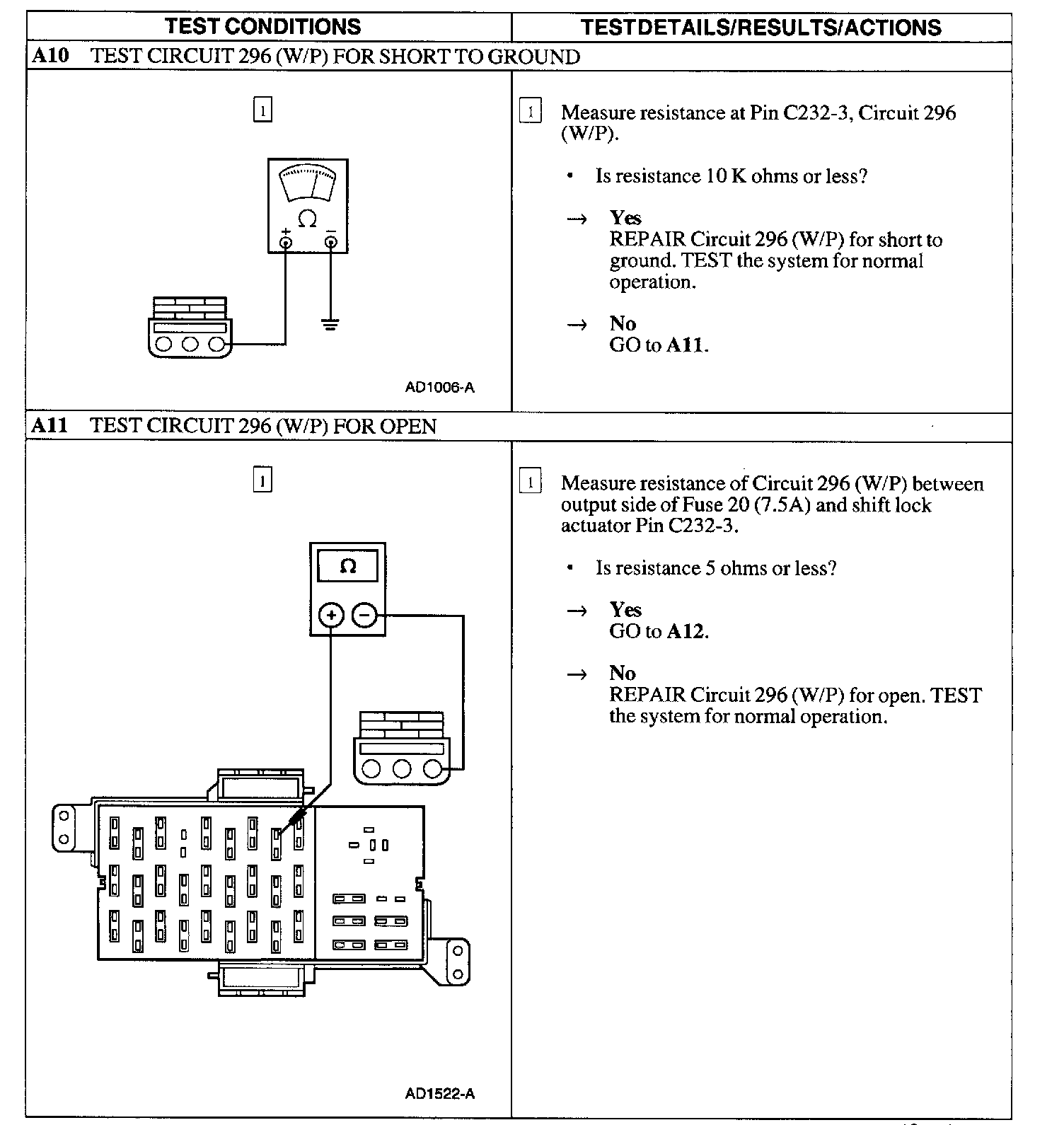

A10 - A11:

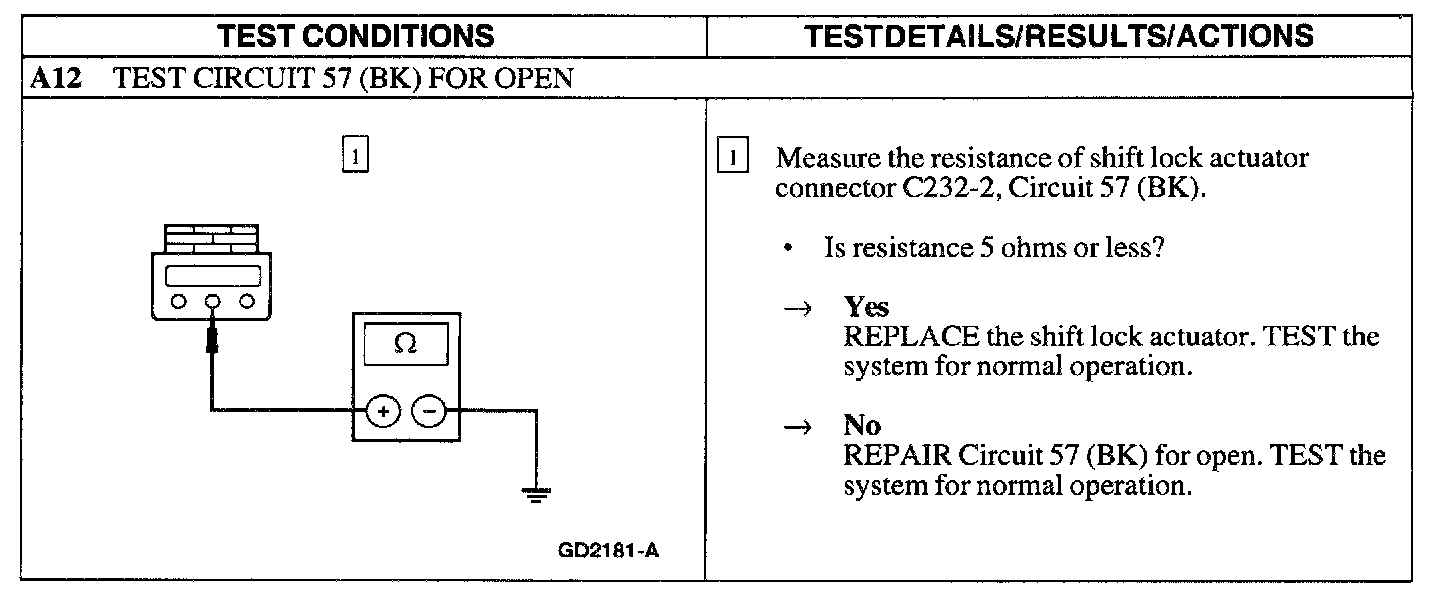

A12:





Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly
