Shift Cable: Adjustments
1. Place the selector lever in the OD position.^ Place 1.36 Kg (3 lbs.) weight on the selector lever.
2. Raise and support the vehicle.

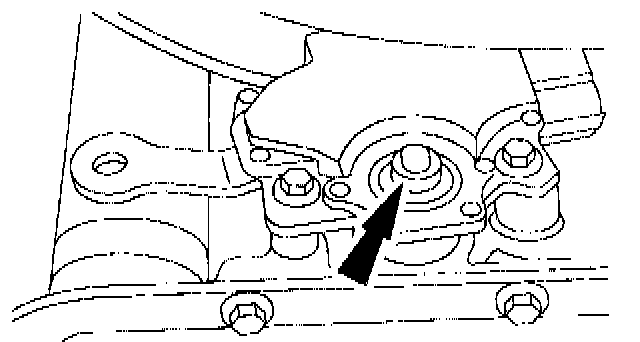

3. Disconnect the shift cable and bracket from the manual control lever.
4. Place the manual control lever in the OD position.

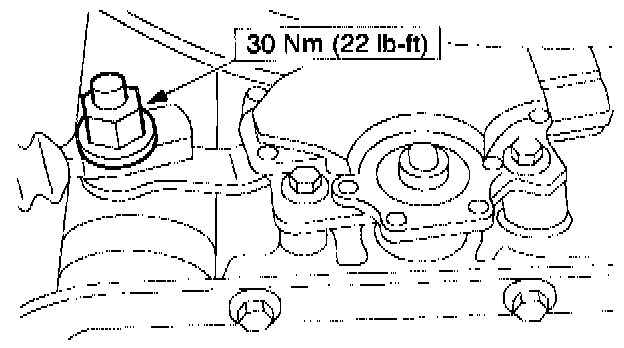

5. Connect the transmission shift cable to the manual control lever,
6. Lower the vehicle.
7. Remove the 1.36 Kg (3 lbs.) weight.
8. Carefully move the manual control lever from detent to detent and compare with transmission settings. Verify that the vehicle will start in PARK or NEUTRAL and backup lamps illuminate in REVERSE. If not, Steps 1-5 must be repeated and include Digital Transmission Range (DTR) sensor AM adjustment in NEUTRAL.
^ Re-adjust if necessary.
