Selector Shaft: Service and Repair

Special Tools:

Removal
1. If equipped turn the air suspension switch OFF.
2. Disconnect the battery ground cable.
3. Raise the vehicle on a hoist. .
4. Drain the transmission fluid and remove the fluid pan and filter.
5. Disconnect the digital Transmission Range (TR) sensor electrical connector.





6. Disconnect the transmission shift linkage.

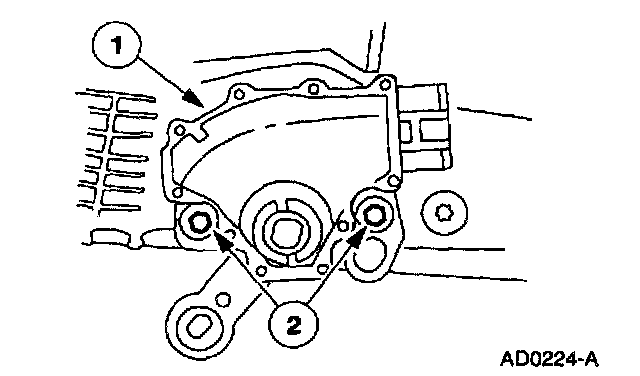

7. Remove the digital TR sensor.
^ Remove the bolts.
^ Remove the digital TR sensor.

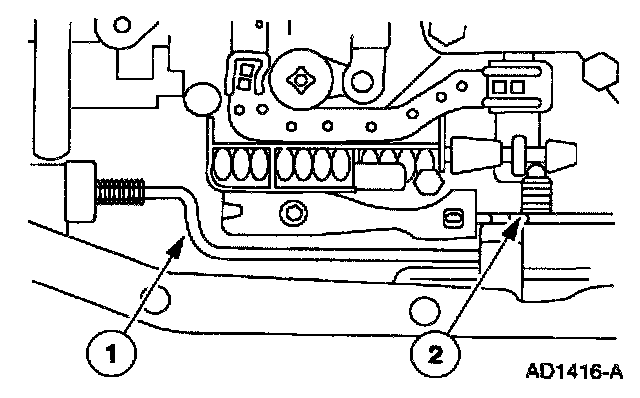

8. Remove the manual control valve detent lever spring.
1. Remove the bolt.
2. Remove the manual control valve detent lever spring.

NOTE: Use a shop cloth to protect the transmission case surface.

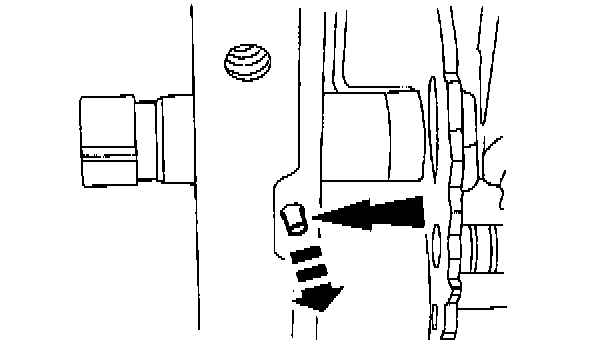

9. Remove the manual lever shaft retaining pin.

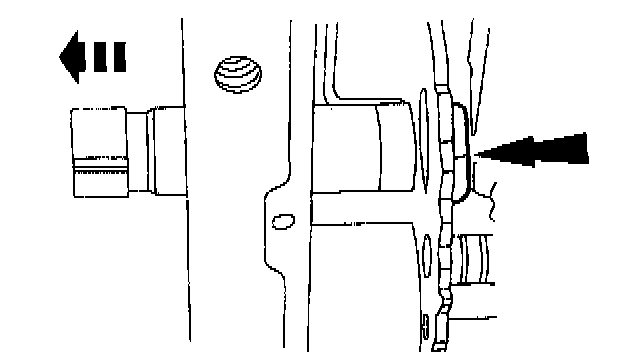

10. Remove the nut and slide the manual control lever shaft out of the case.

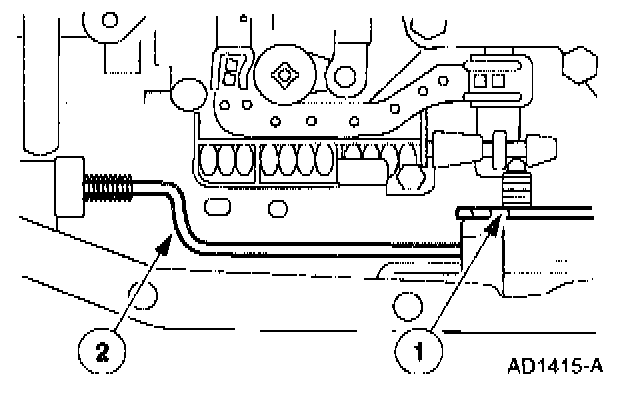

11. Remove the parking lever actuating rod.
1. Remove the manual valve detent lever.
2. Remove the parking lever actuating rod.

CAUTION: Use care not to damage the manual control lever shaft bore. New seal may leak due to damage to the bore.

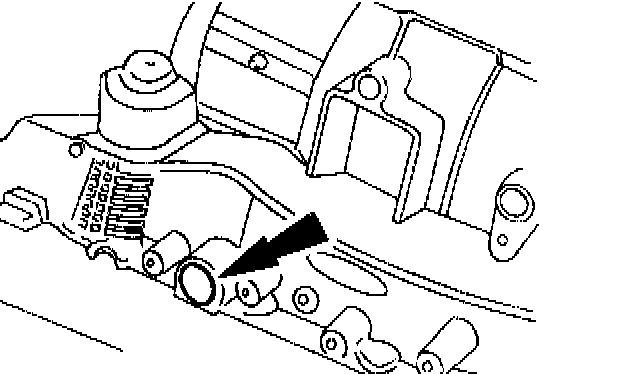

12. Remove the manual control lever shaft seal.

Installation

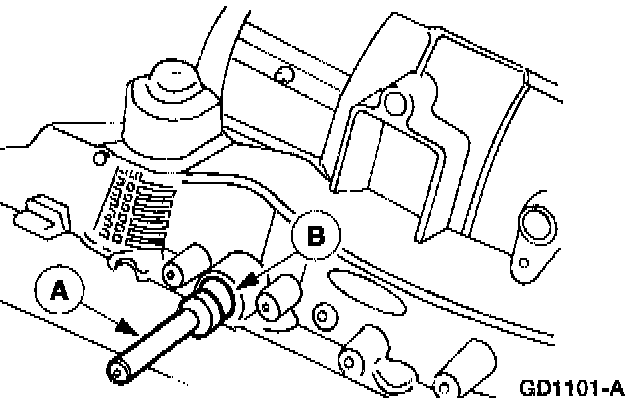

1. Use (A) Shift Lever Seal Replacer to install the (B) manual control lever seal.





2. Install the parking lever actuating rod.
1. Install the parking lever actuating rod.
2. Install the manual valve detent lever.

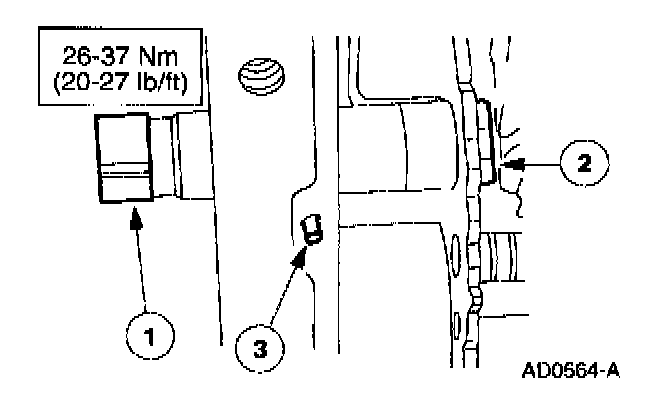

3. Install the manual control lever shaft.
1. Install the manual control lever shaft.
2. Install the nut.
3. Install the manual lever shaft retaining pin.





4. Install the manual valve detent lever spring.
1. Position the manual valve detent lever spring.
2. Install the bolt.





5. Install the digital TR sensor.
1. Install the digital TR sensor.
2. Loosely install the bolts.

NOTE: Manual shift lever shaft must be in the neutral position.





6. Use the digital TR Sensor Alignment Tool to align the digital TR sensor slots. The tool is designed to fit snug.





7. Tighten the bolts.





8. With manual lever in overdrive, connect the shift control cable.
9. Install the digital TR sensor electrical connector.
10. Install the filter and transmission fluid pan.
11. Lower the vehicle.
12. Connect the battery ground cable.
13. If equipped reactivate the air suspension..
14. Fill the transmission with fluid and inspect for proper operation.
