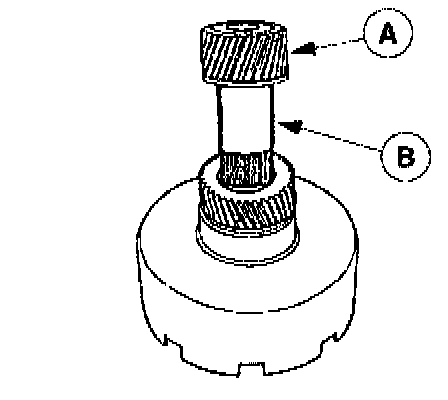

Reverse Sun Gear

Disassembly

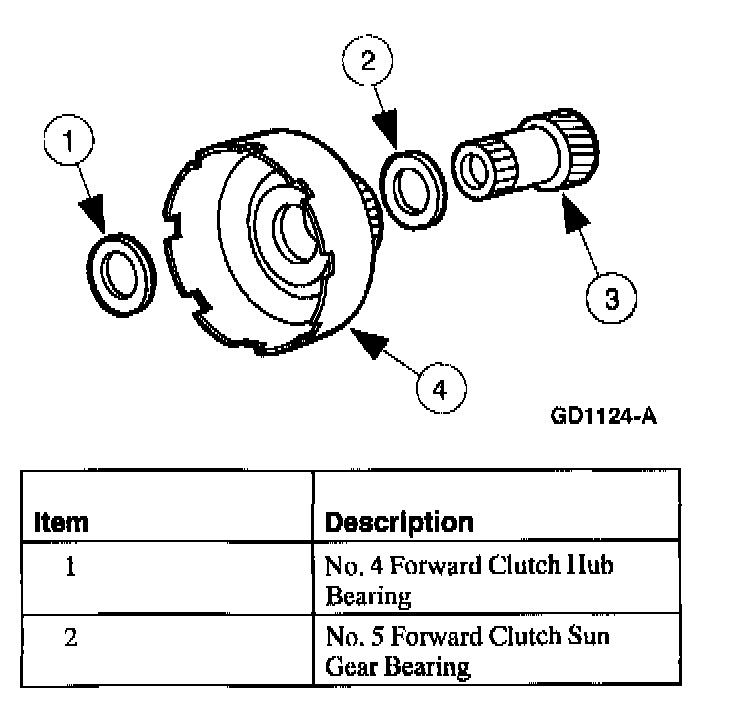

1. Remove the (A) reverse sun gear assembly and the (B) No. 4 forward clutch hub bearing.

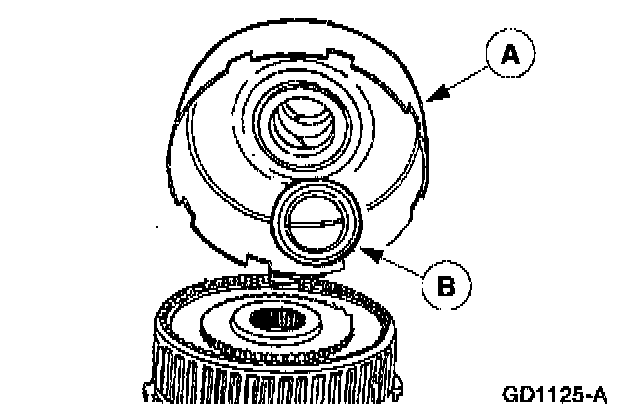

2. Remove the (A) forward clutch sun gear and the (B) No. 5 forward clutch sun gear bearing.


Assembly
1. The forward clutch sun gear and reverse sun gear assembly are assembled as part of the transmission assembly procedure.
