Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Seals, Rings and Gaskets

Seals, Rings and Gaskets

1 Of 2:




2 Of 2:

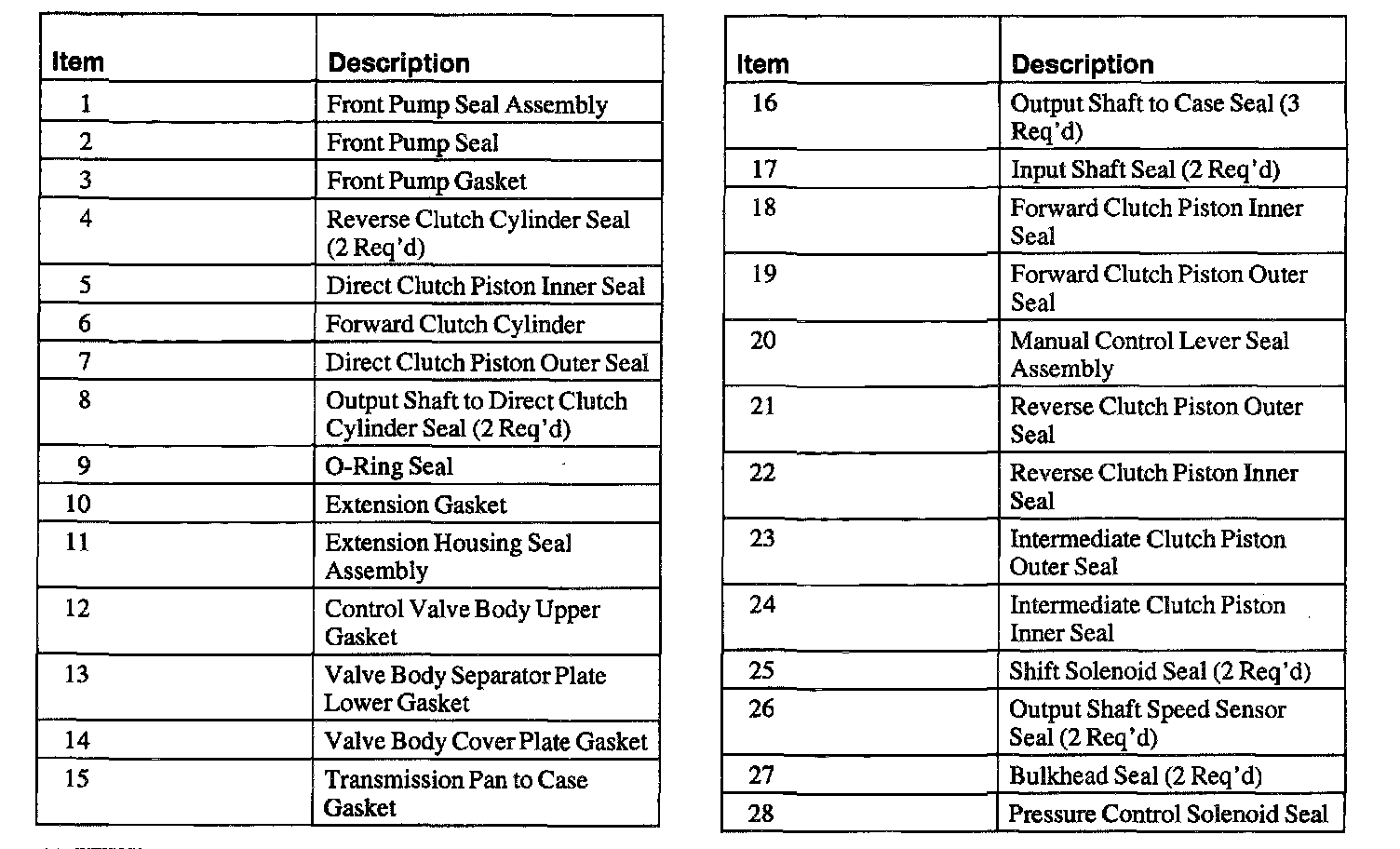

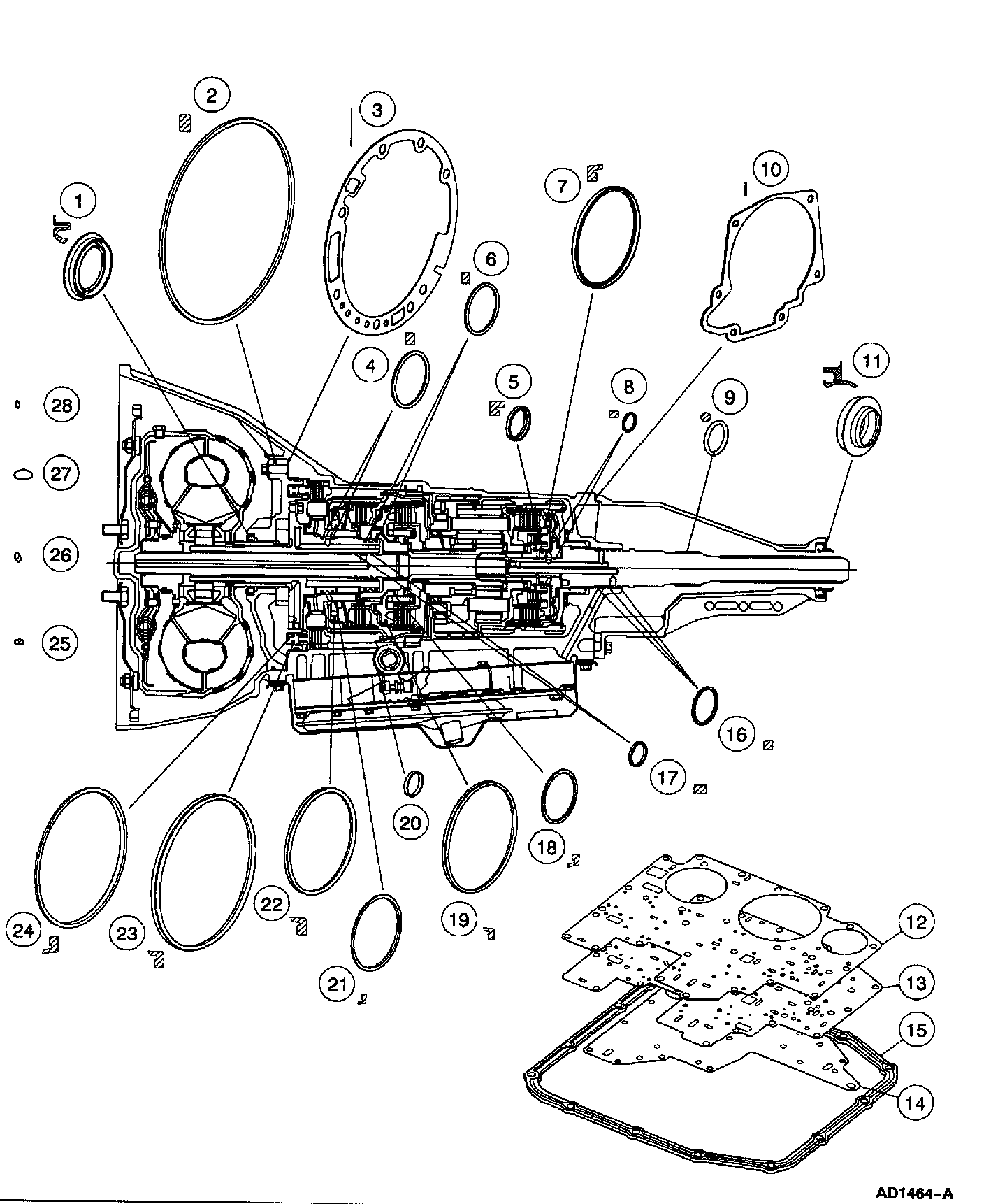

Seals, Rings and Gasket Locator
