1-2 Accumulator

Special Tools:

Removal





1. Use (A) Servo Piston Remover Replacer to compress the 1-2 accumulator cover and remove the (B) accumulator piston retaining ring.

NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.





2.
1. Remove the 1-2 accumulator cover.
2. Remove the lower 1-2 accumulator spring.
3. Remove the accumulator piston.
4. Remove the upper 1-2 accumulator spring.

Installation

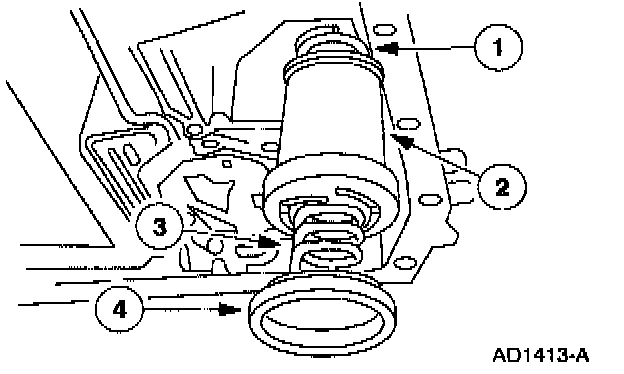

1. Install the 1-2 accumulator.
1. Install the 1-2 accumulator upper spring.
2. Install the accumulator piston.
3. Install the 1-2 accumulator lower spring.
4. Install the cover and seal assembly.





2. Use (A) Servo Piston Remover Replacer to install the (B) accumulator piston retaining ring.
