Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> R DTC 72 Did Not Detect Four Open or Closed Door Signals

R DTC 72 Did Not Detect Four Open or Closed Door Signals

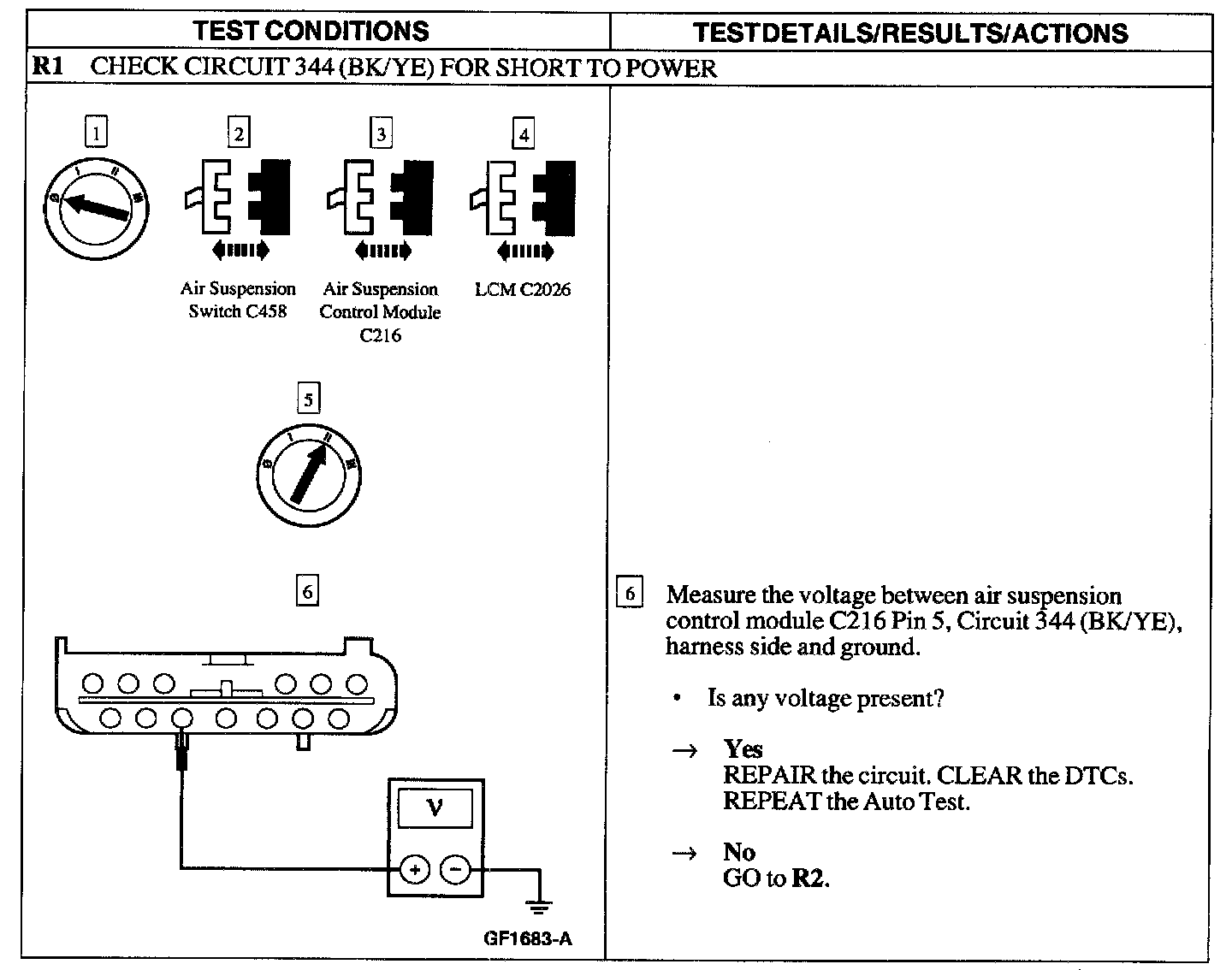

Test R1:

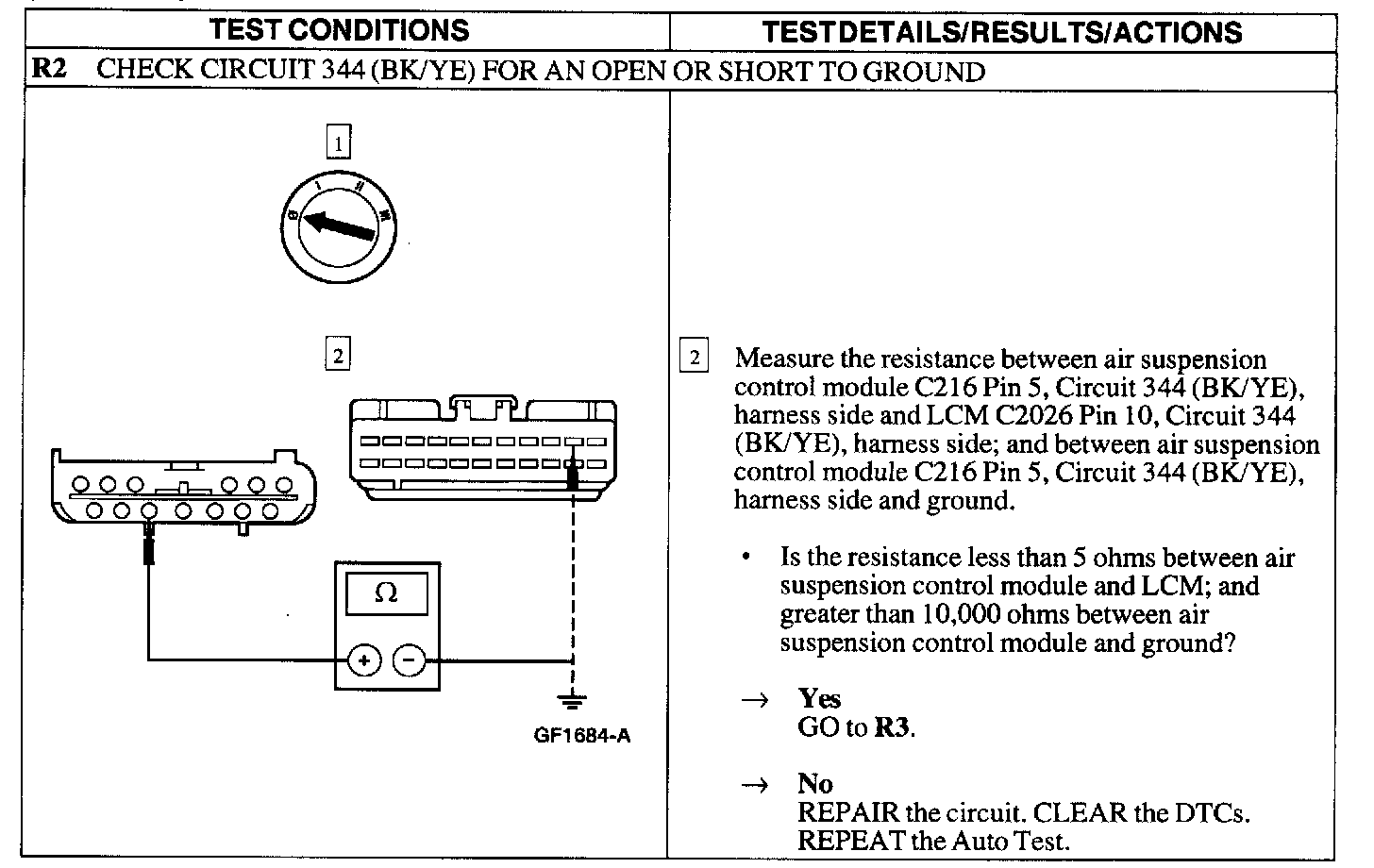

Test R2:

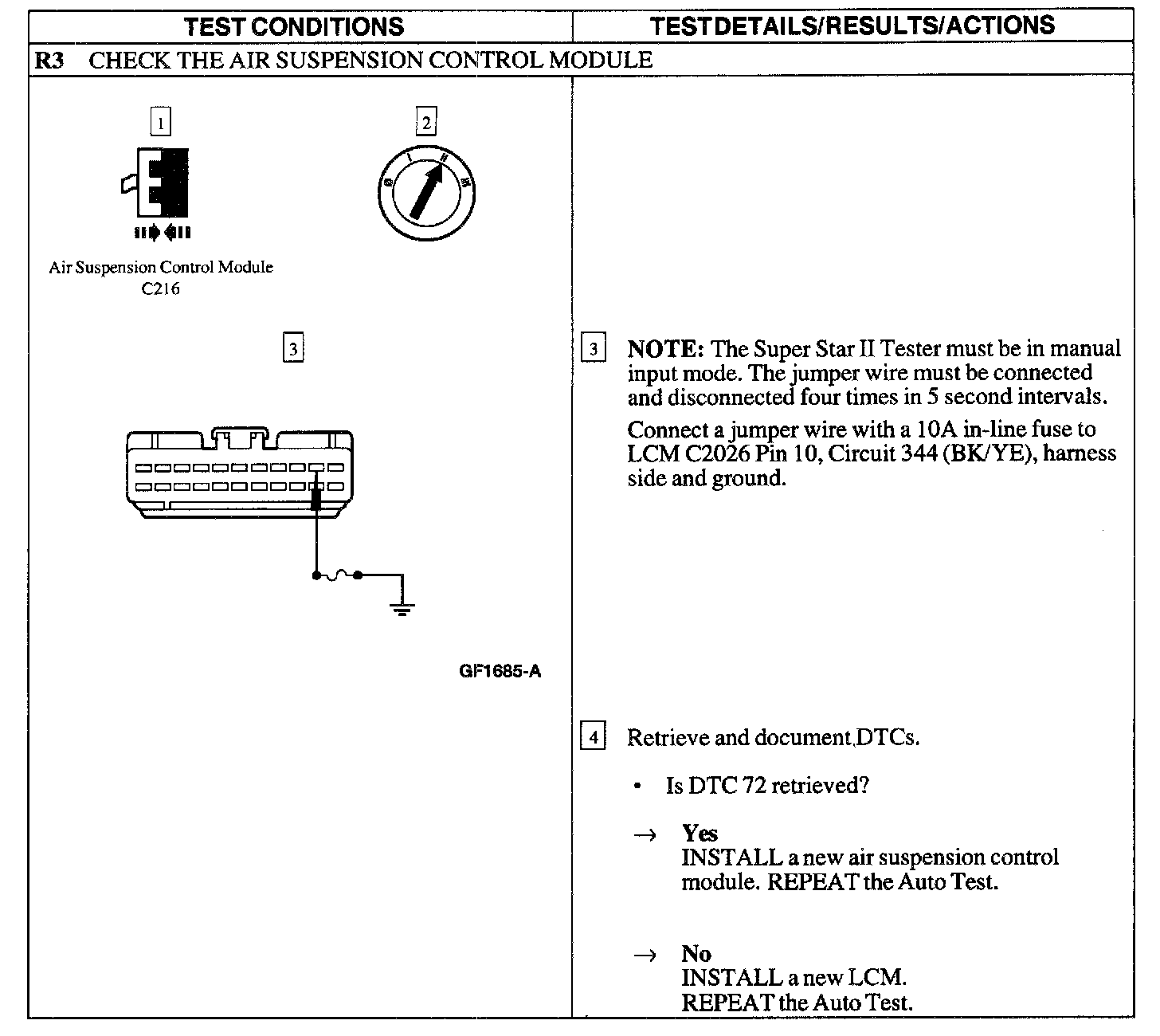

Test R3:
