Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> Q DTC 71 Height Sensor Circuit Open

Q DTC 71 Height Sensor Circuit Open

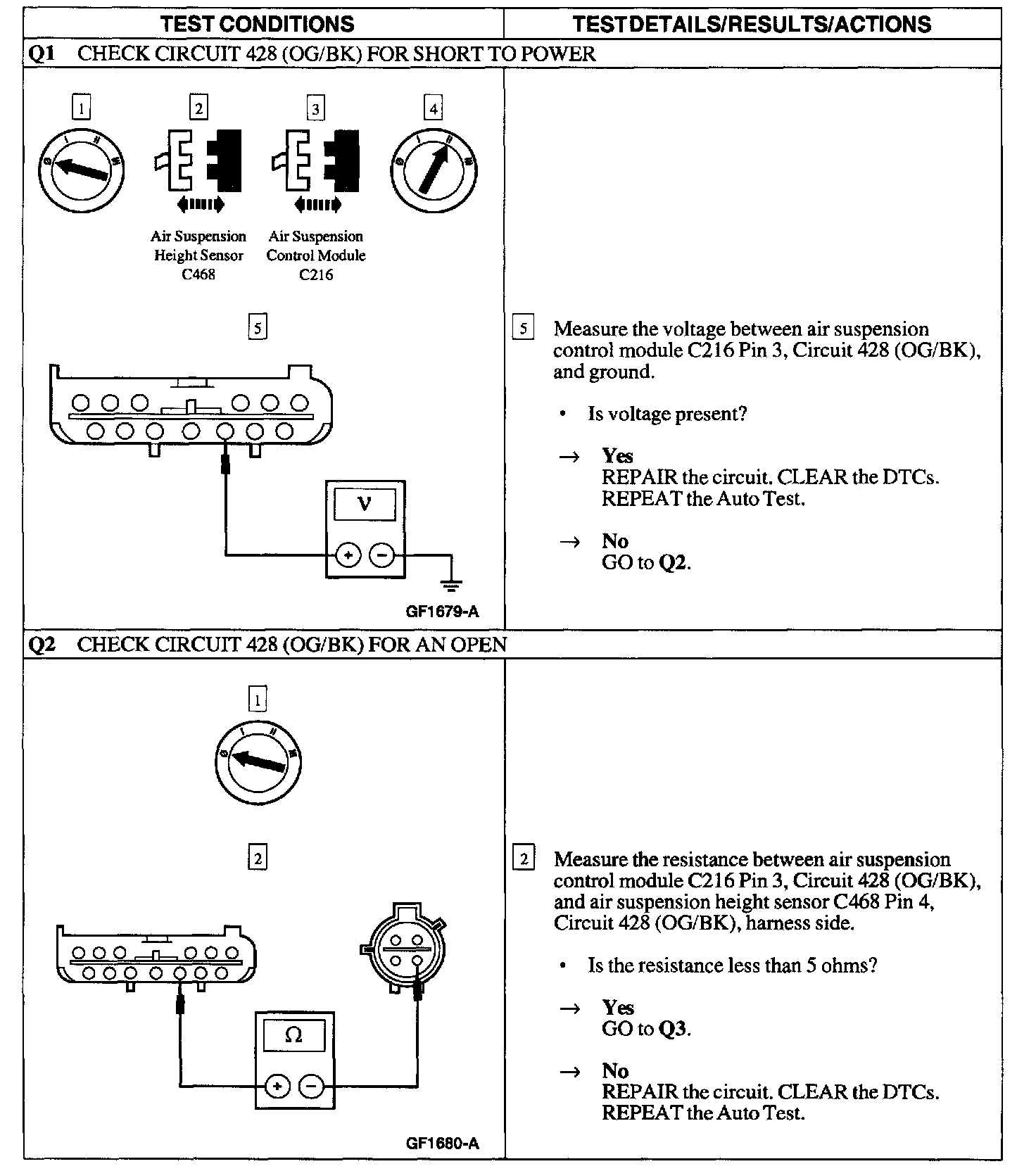

Test Q1 - Q2:

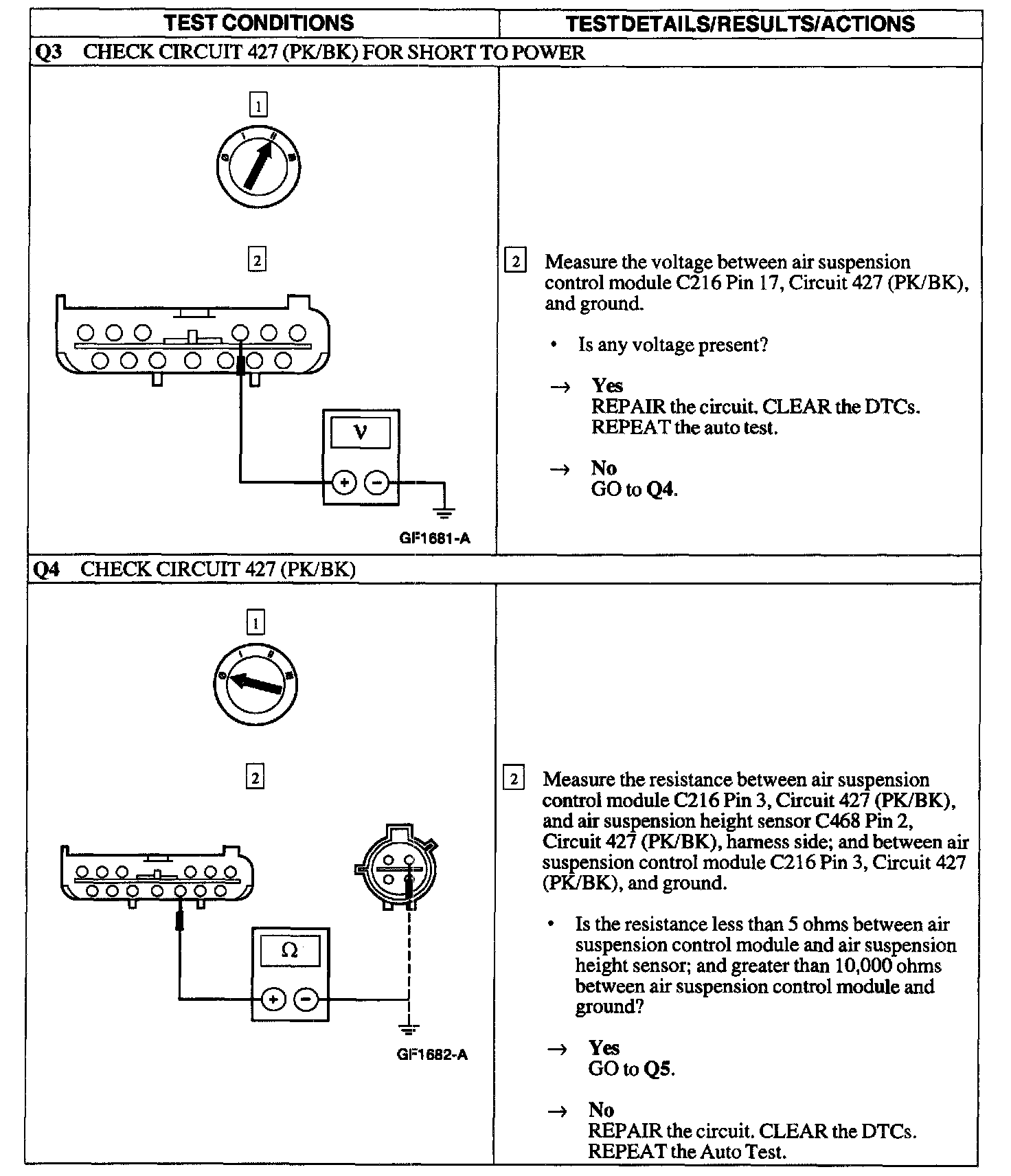

Test Q3 - Q4:

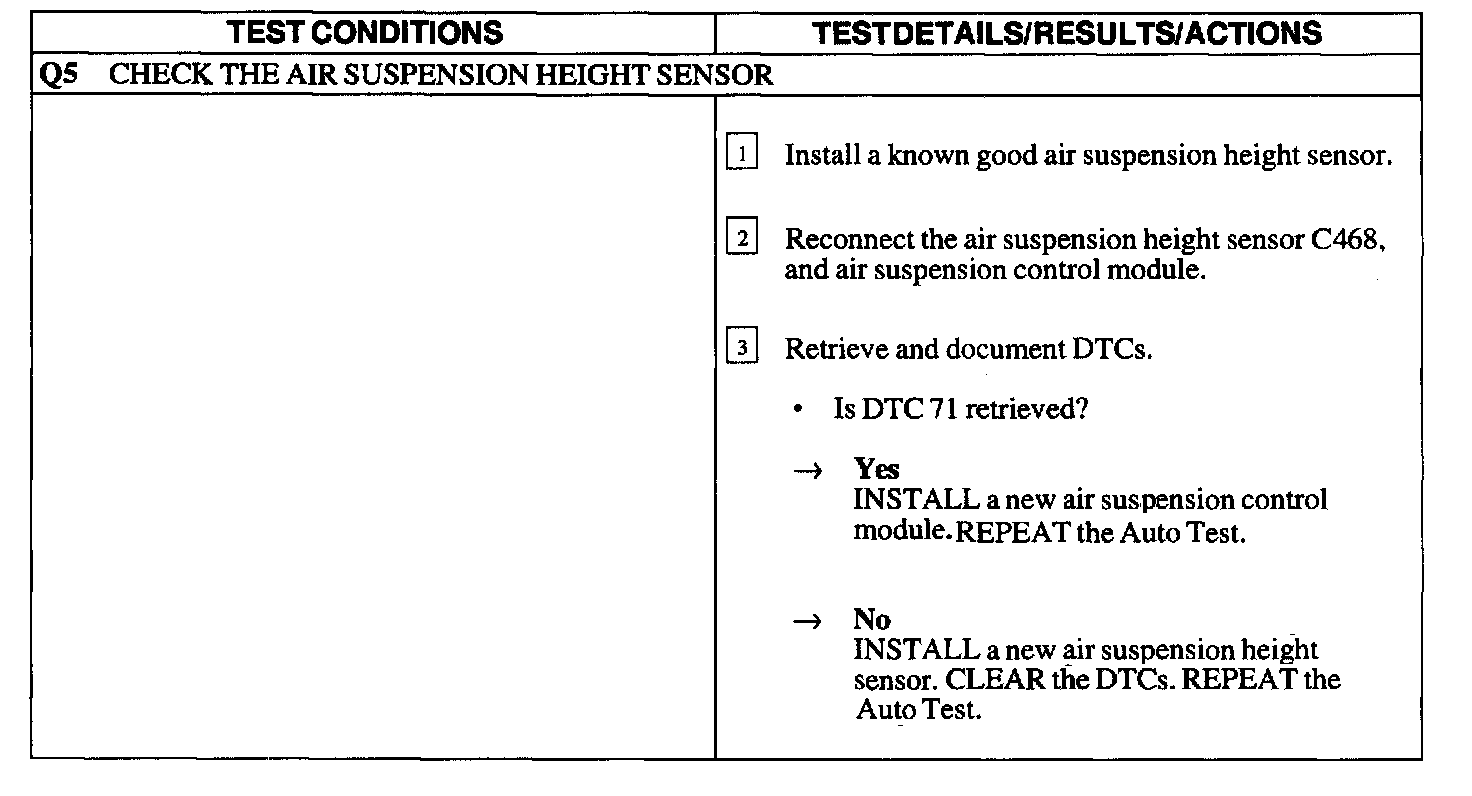

Test Q5:
