N DTC 60 Air Suspension Switch Short to Power
N DTC 60 Air Suspension Switch Short to Power

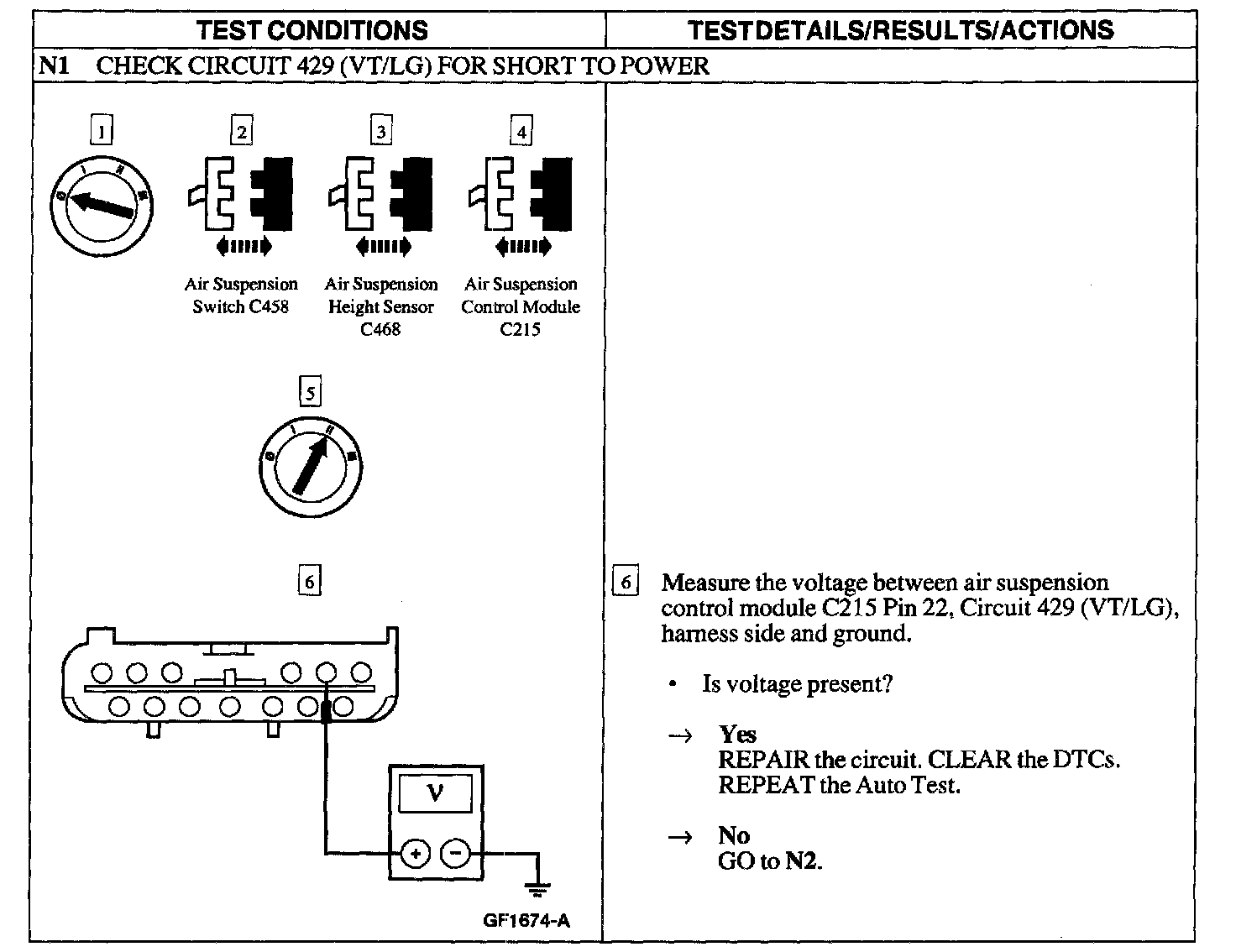

Test N1:

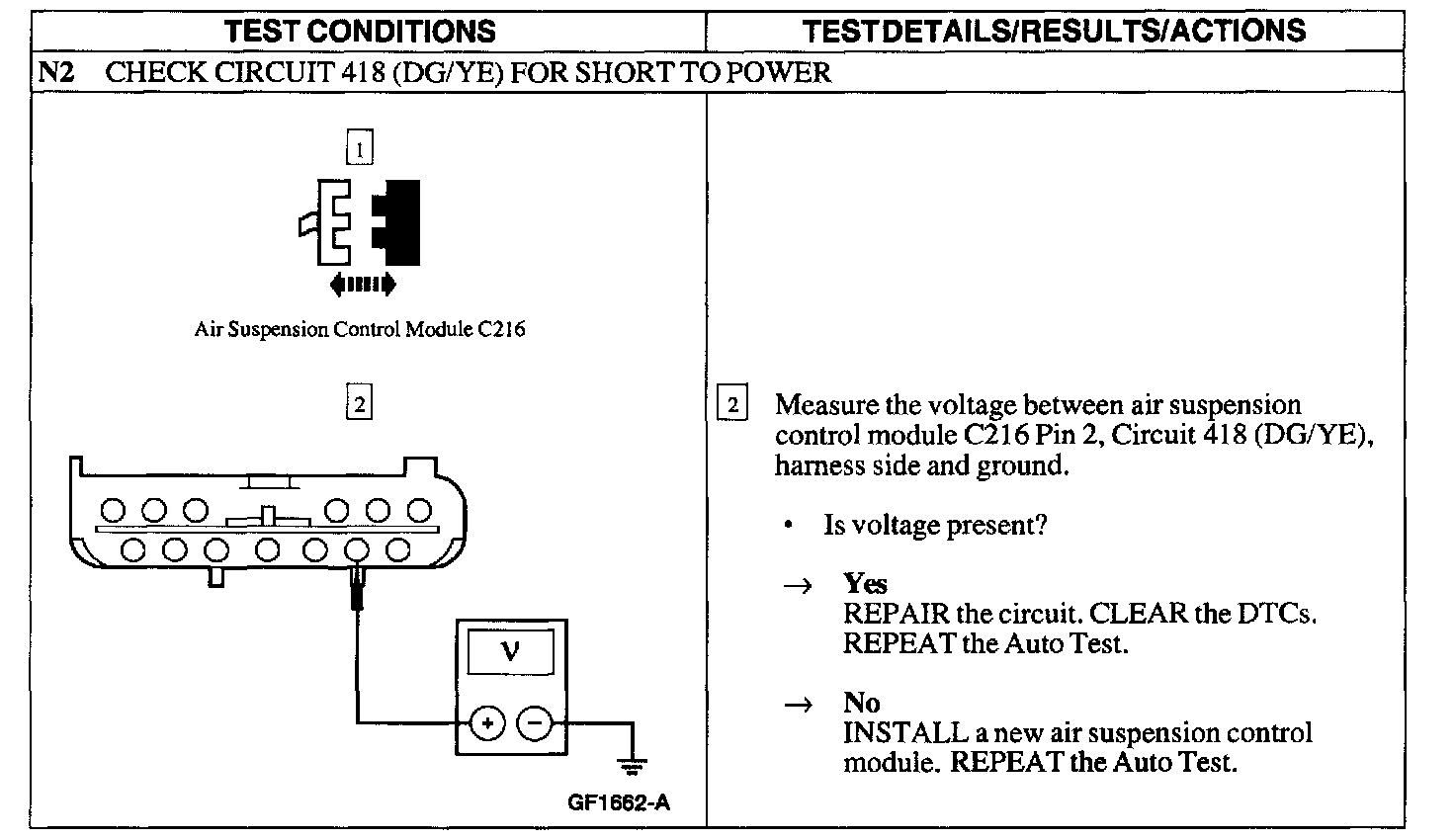

Test N2:
NOTE:
Vehicle must be driven over 24 km/h (15 mph) before proceeding.
