K DTC 51 Unable to Detect Lowering of Rear

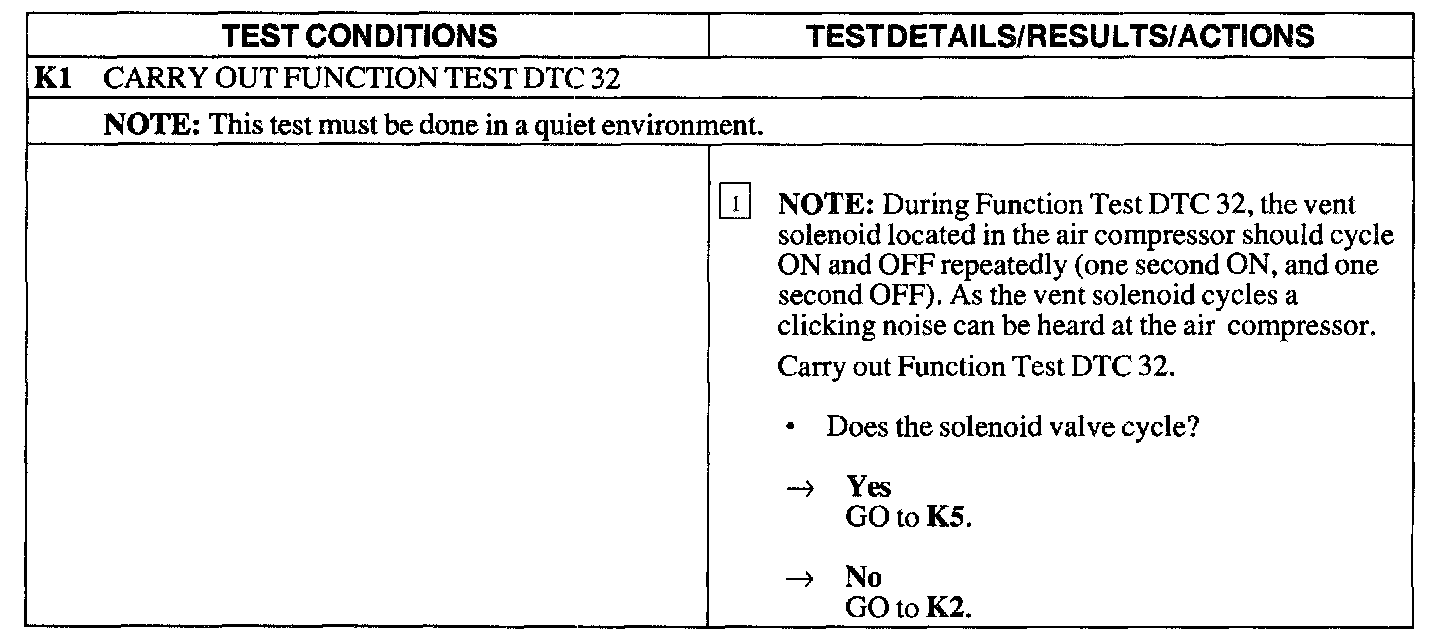

Test K1:

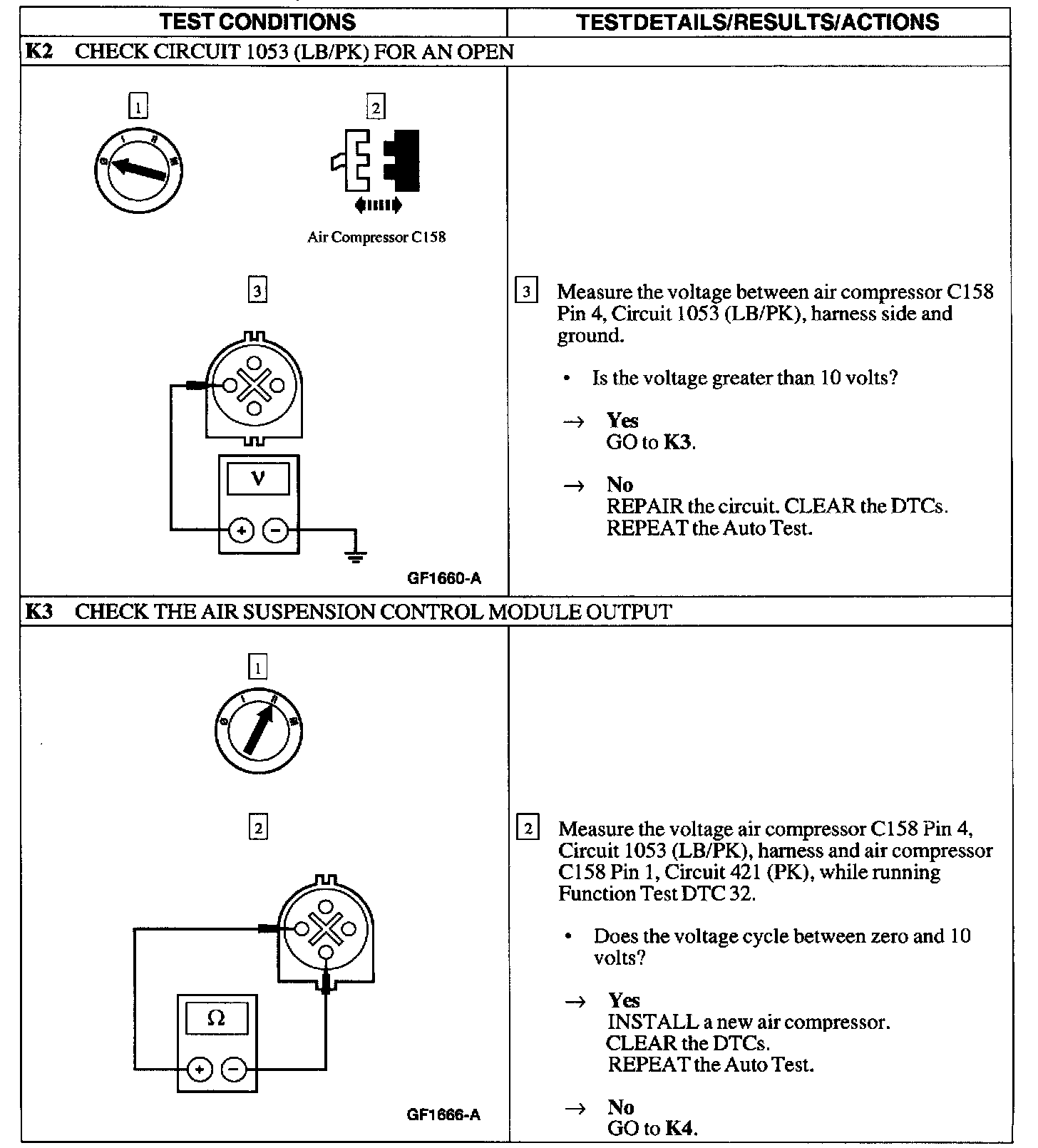

Test K2 - K3:

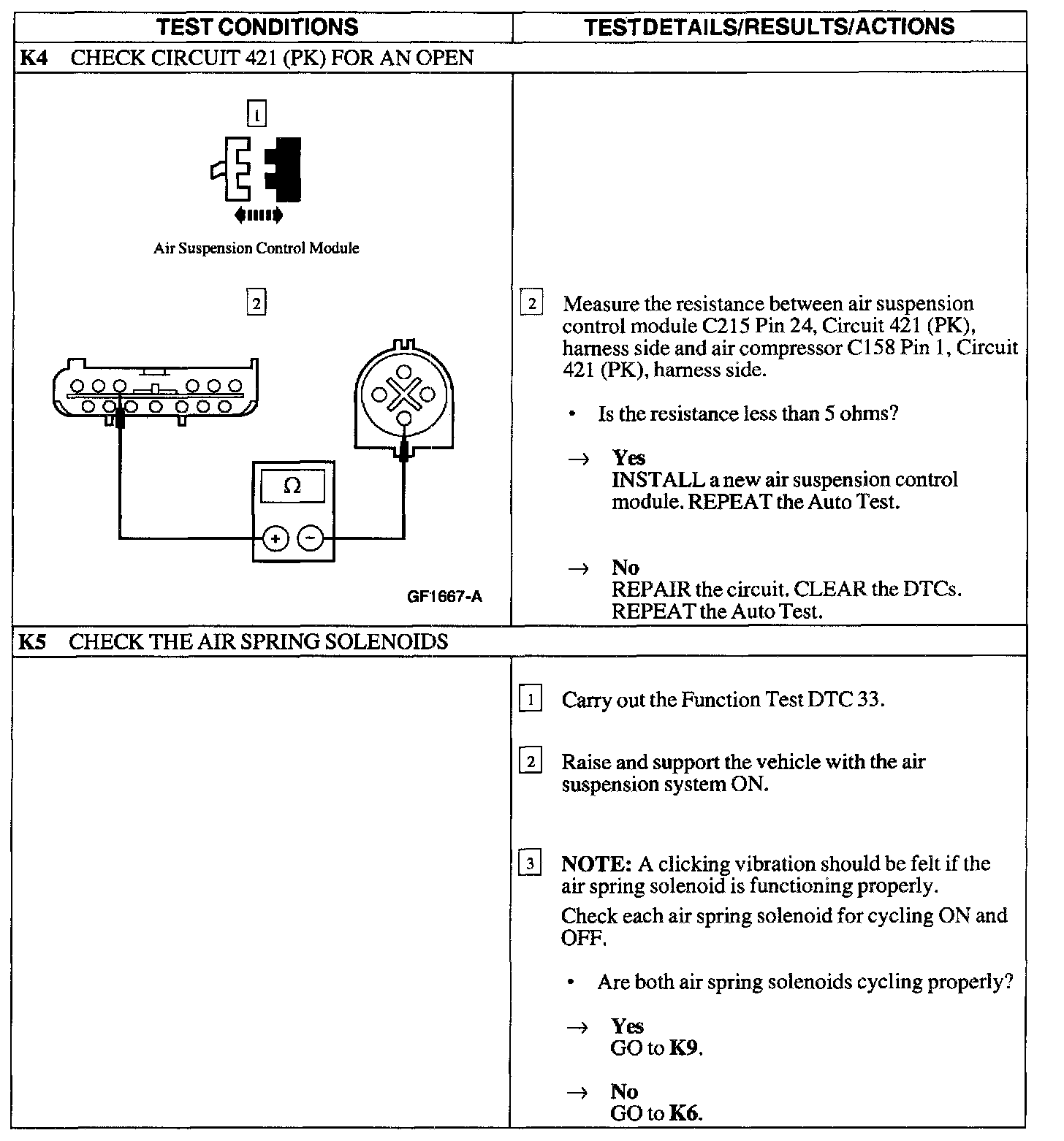

Test K4 - K5:

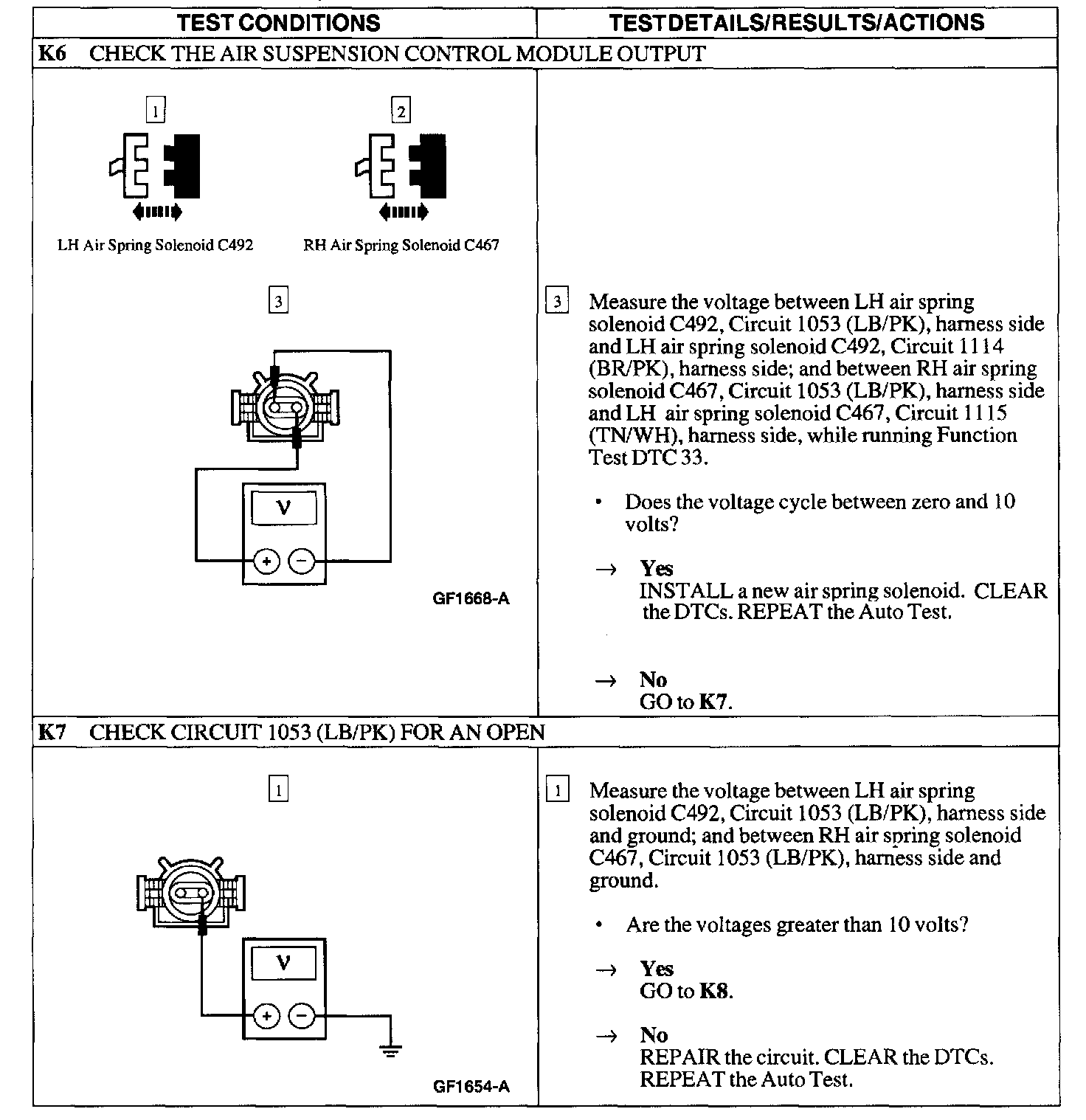

Test K6 - K7:

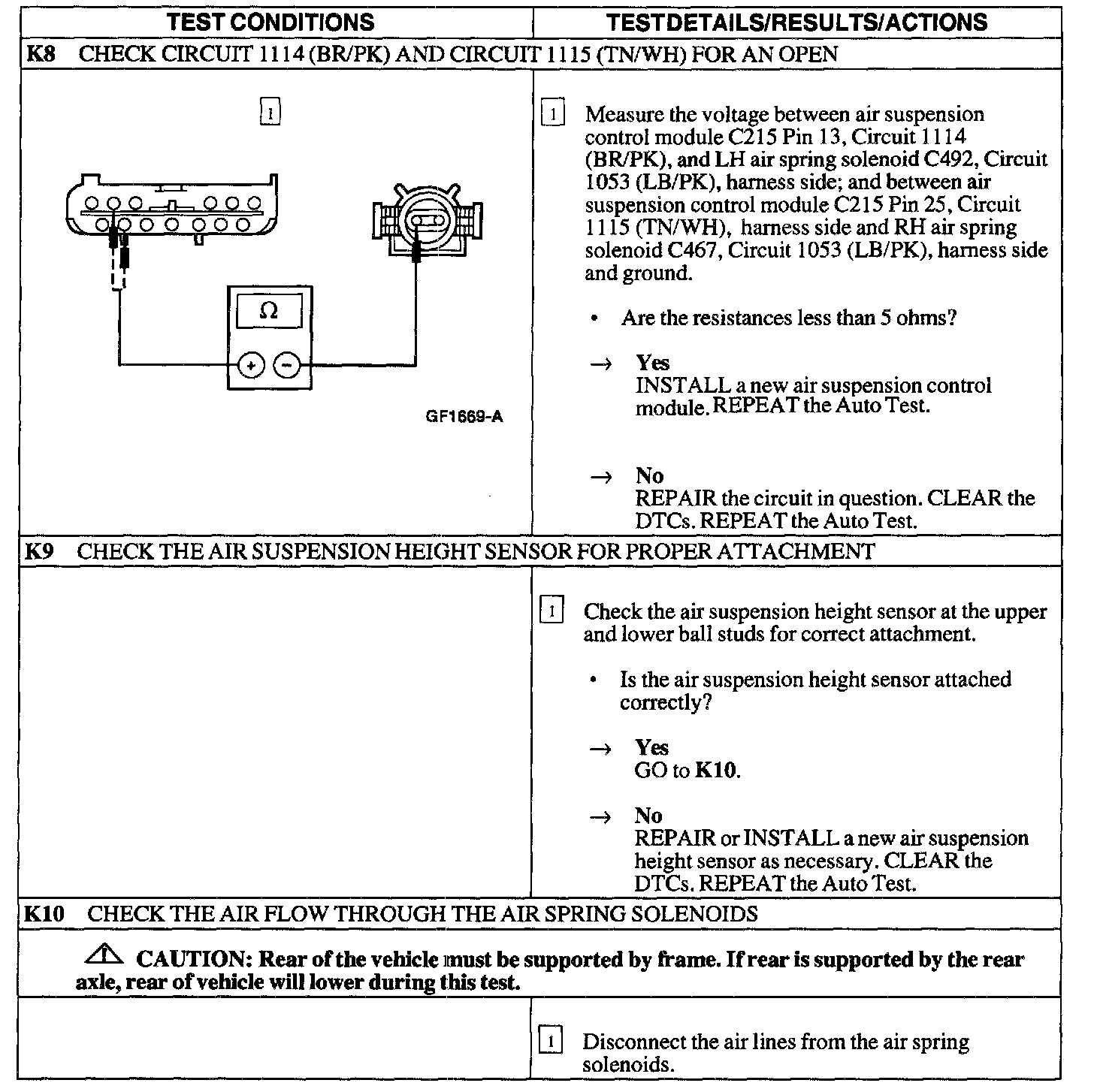

Test K8 - K10:

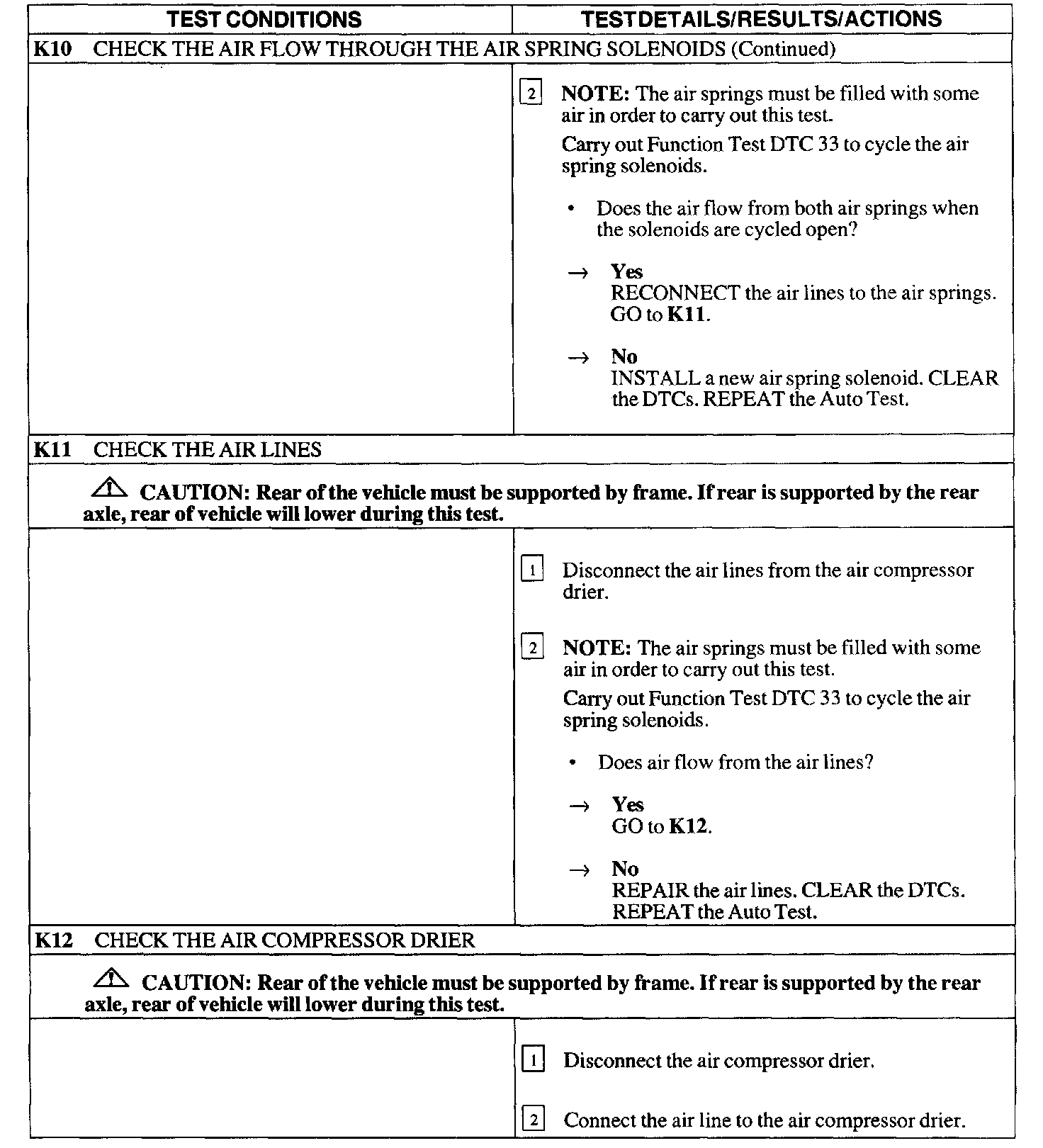

Test K10 - K12:

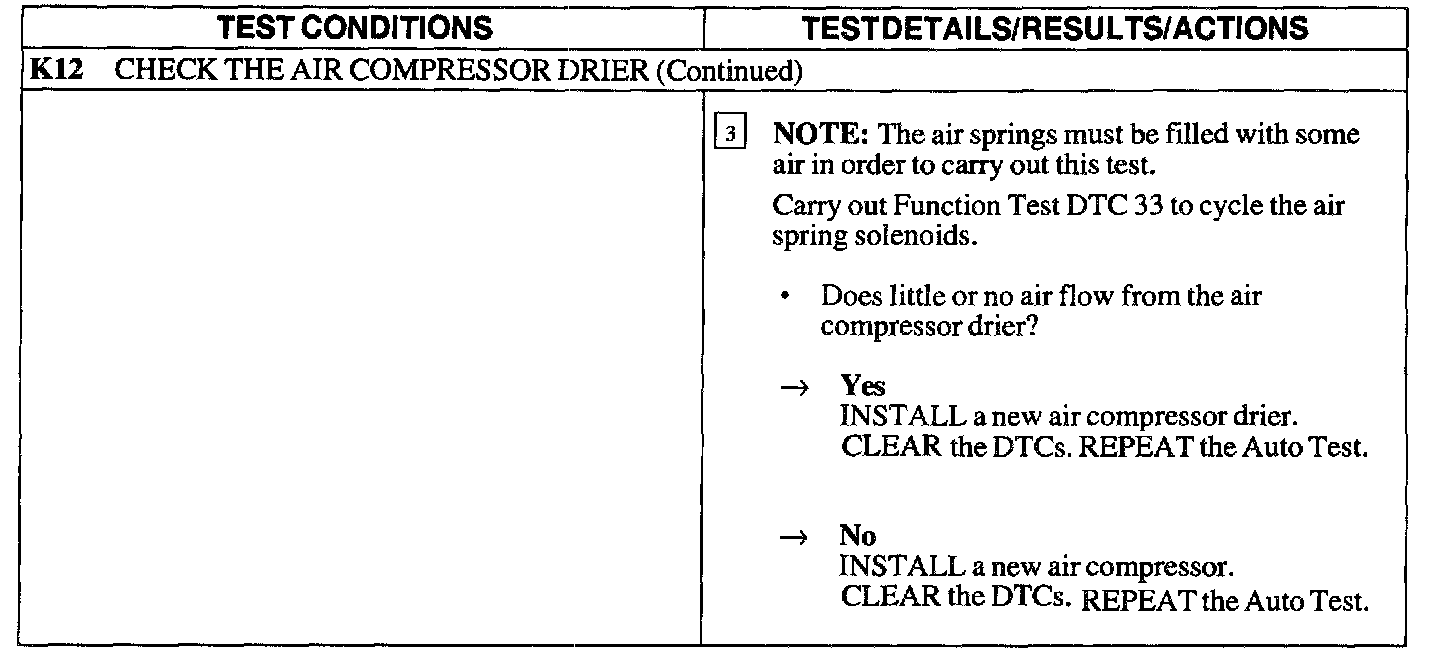

Test K12:
