Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> I DTC 45 Vent Solenoid Circuit Failure

I DTC 45 Vent Solenoid Circuit Failure

Test I1:

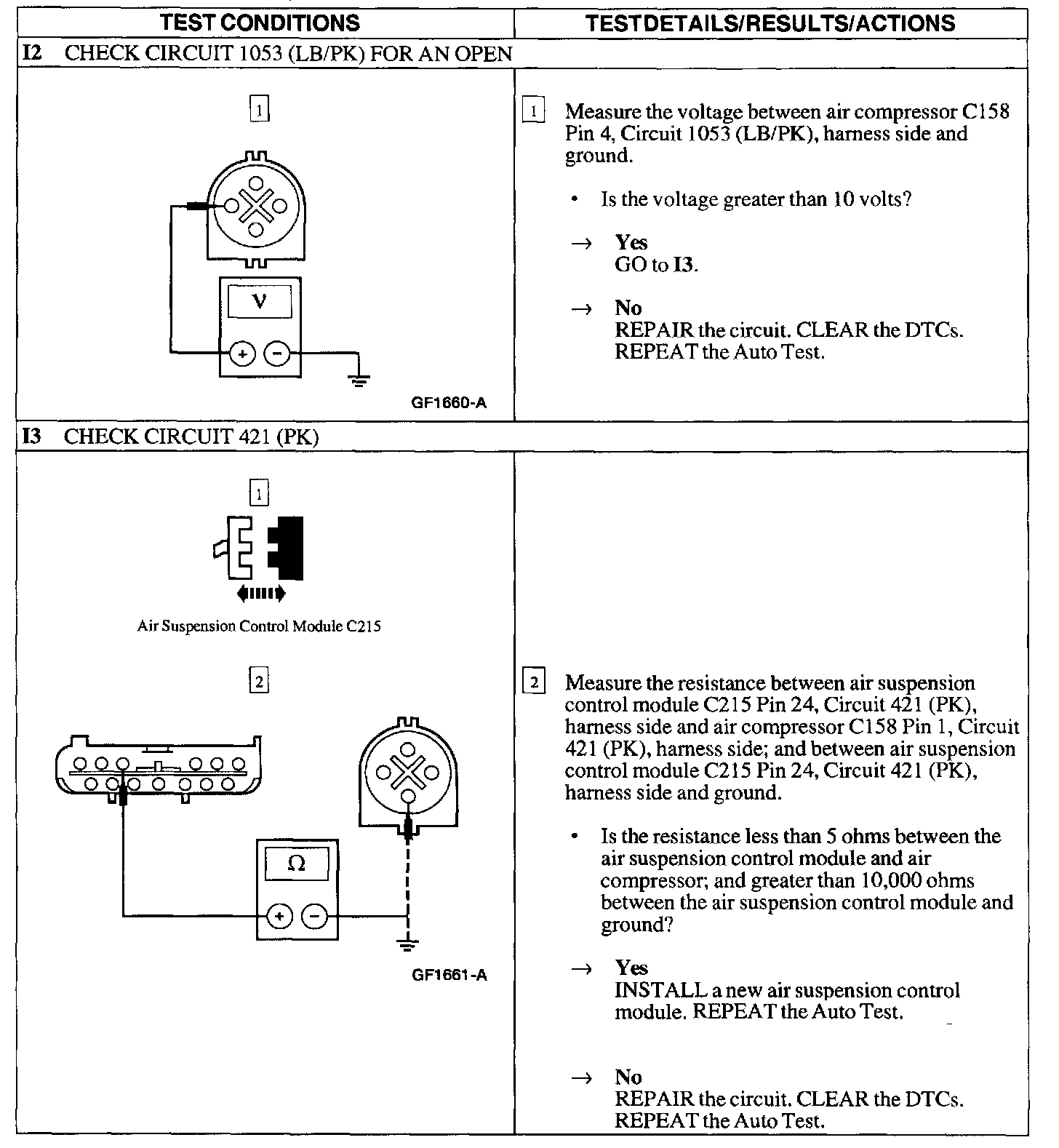

Test I2 - I3:
