Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> H DTC 44 Vent Solenoid Circuit Short to Power

H DTC 44 Vent Solenoid Circuit Short to Power

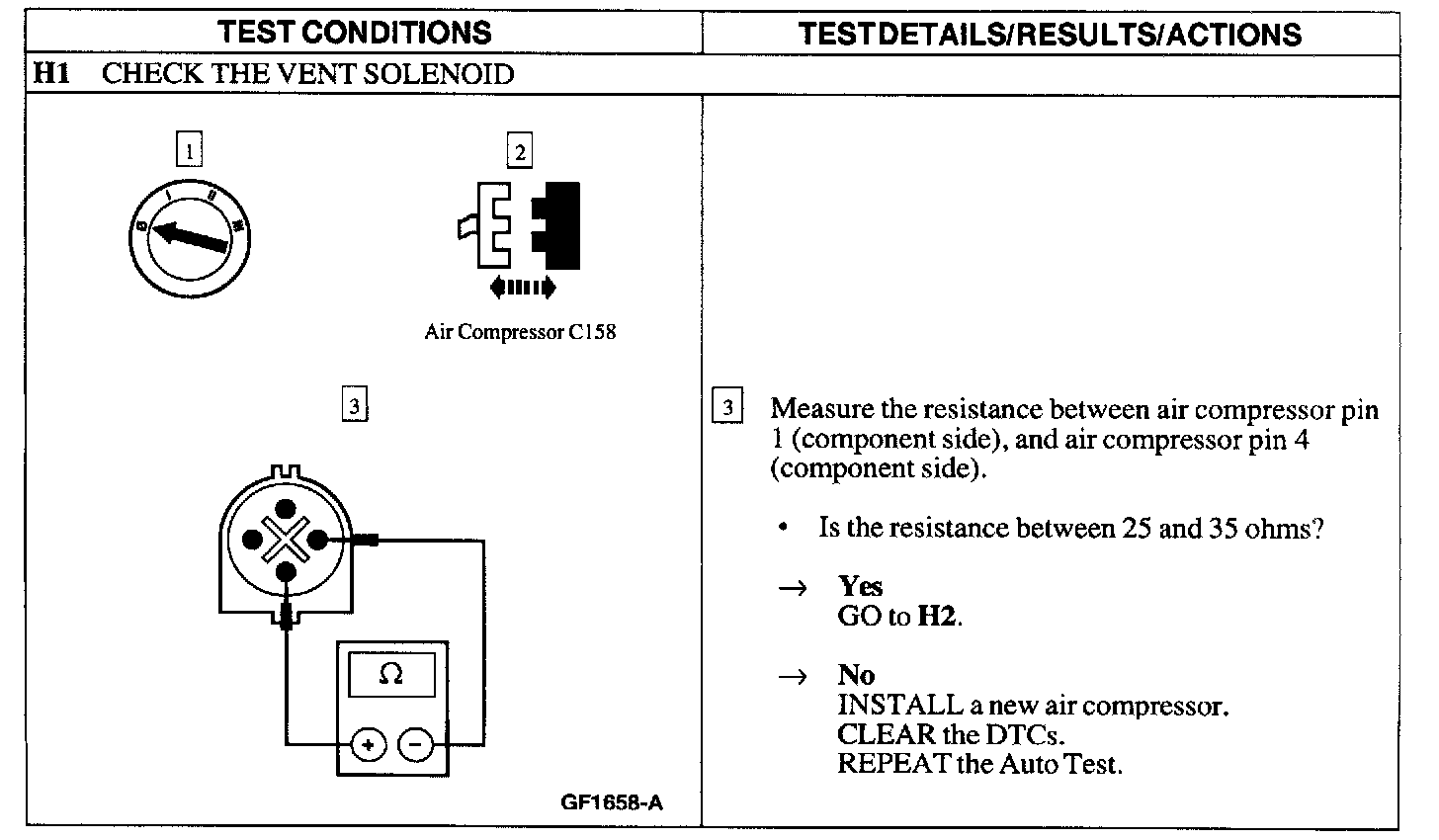

Test H1:

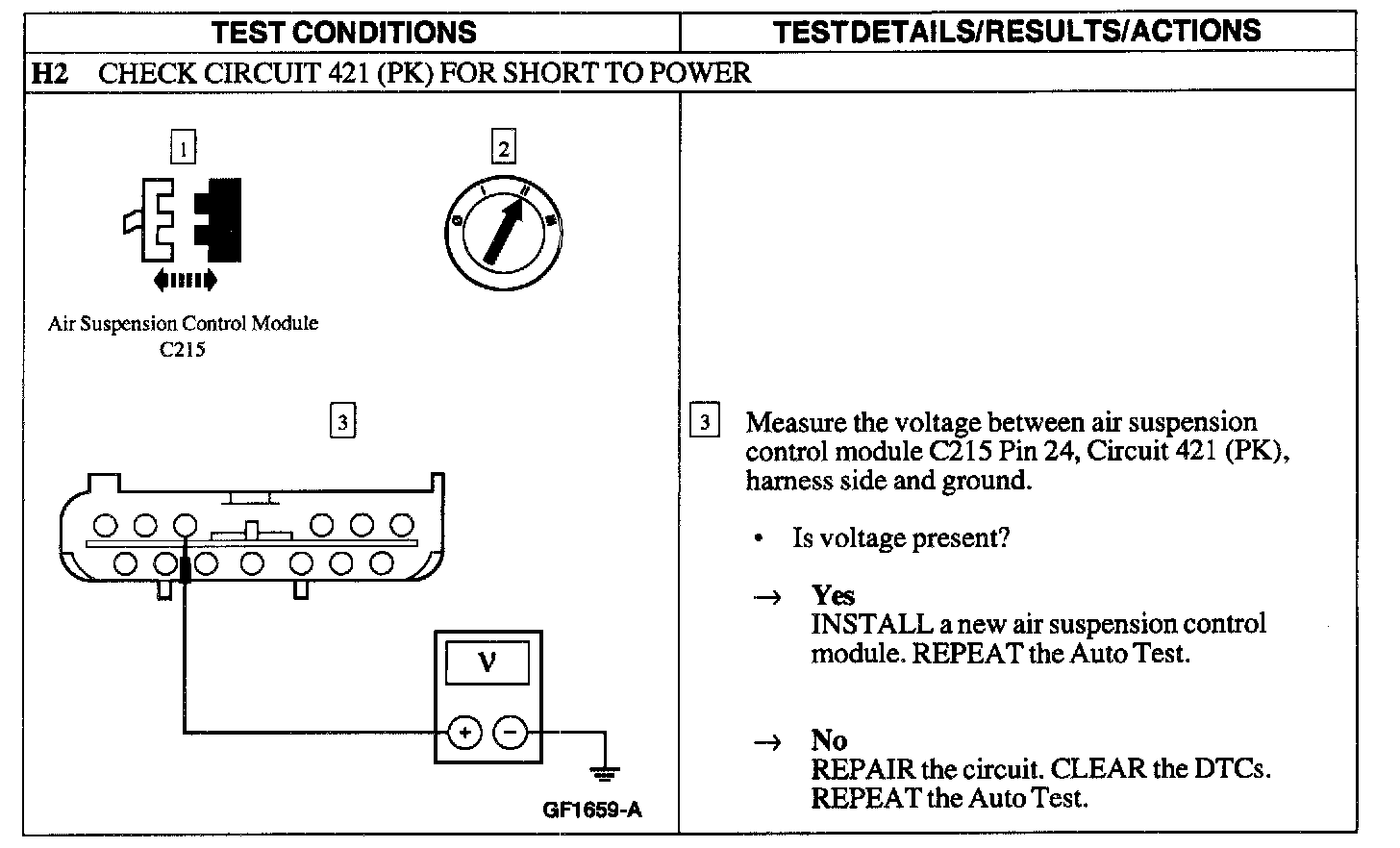

Test H2:
