Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> F DTC 42 Air Spring Solenoid Circuit Short to Ground

F DTC 42 Air Spring Solenoid Circuit Short to Ground

Test F1 - F2:

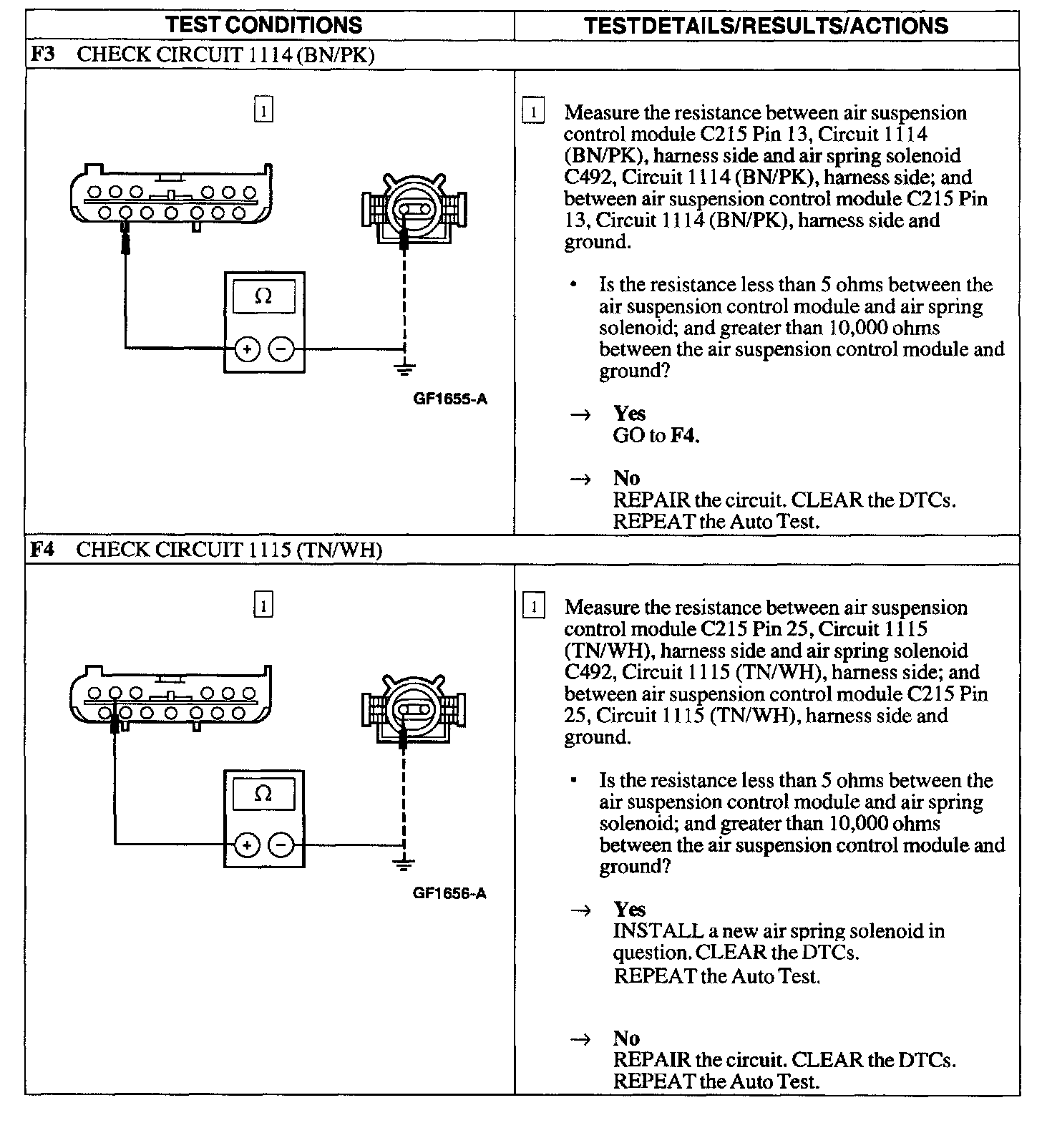

Test F3 - F4:
