Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> E DTC40 Compressor Relay Control Circuit Failure

E DTC40 Compressor Relay Control Circuit Failure

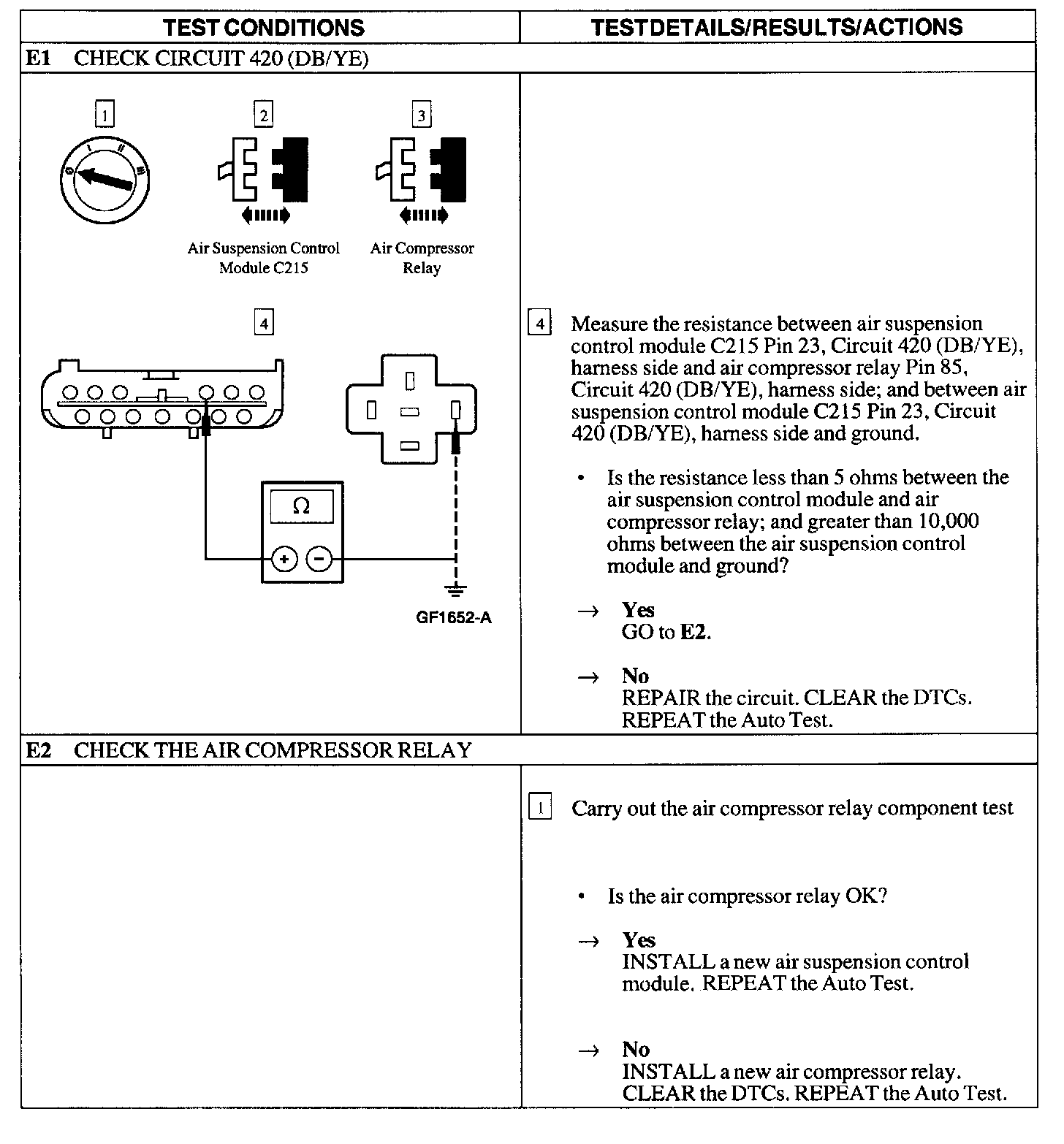

Test E1 - E2:
