Air Spring Filling or Refolding

AIR SPRING FILL - REFOLD

WARNING: Do not remove an air spring under any circumstances when there is pressure in the air spring. Do not remove any components supporting an air spring without either exhausting the air or providing support for the air spring to prevent vehicle damage or personal injury.

CAUTION: Do not clamp any portion of the air spring piston.

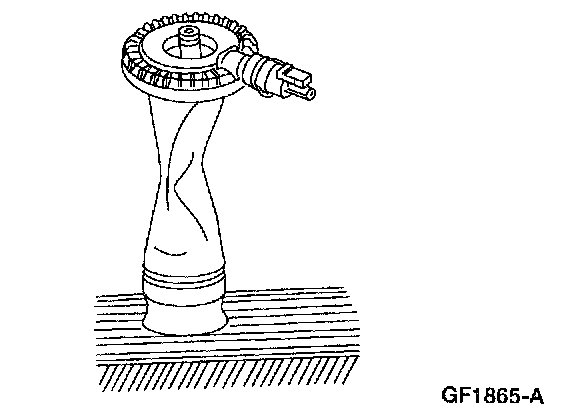

1. Place air spring on flat surface.

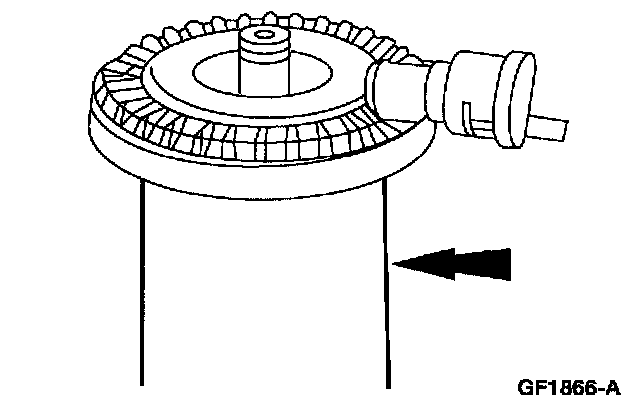

2. Remove air spring solenoid to expand collapsed air bag.

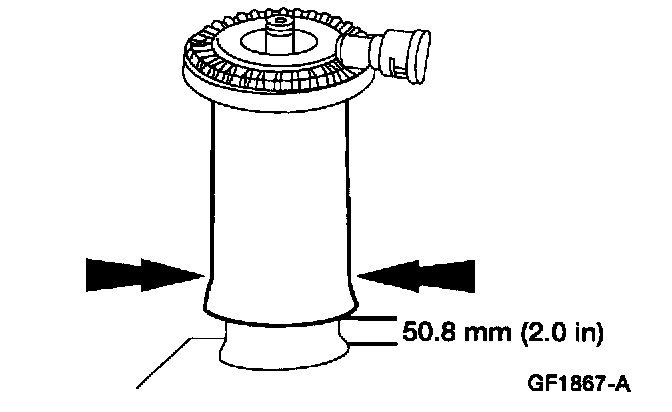

3. Push membrane down over piston to correct height.

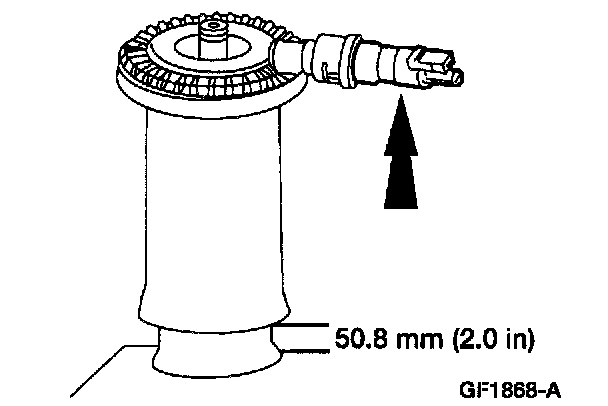

4. Install air spring solenoid to help maintain correct height.
