Home >> Mercury >> 1999 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Pinpoint Tests >> J: DTC31 EVO Actuator Circuit Low Side Shorted to Ground

J: DTC31 EVO Actuator Circuit Low Side Shorted to Ground

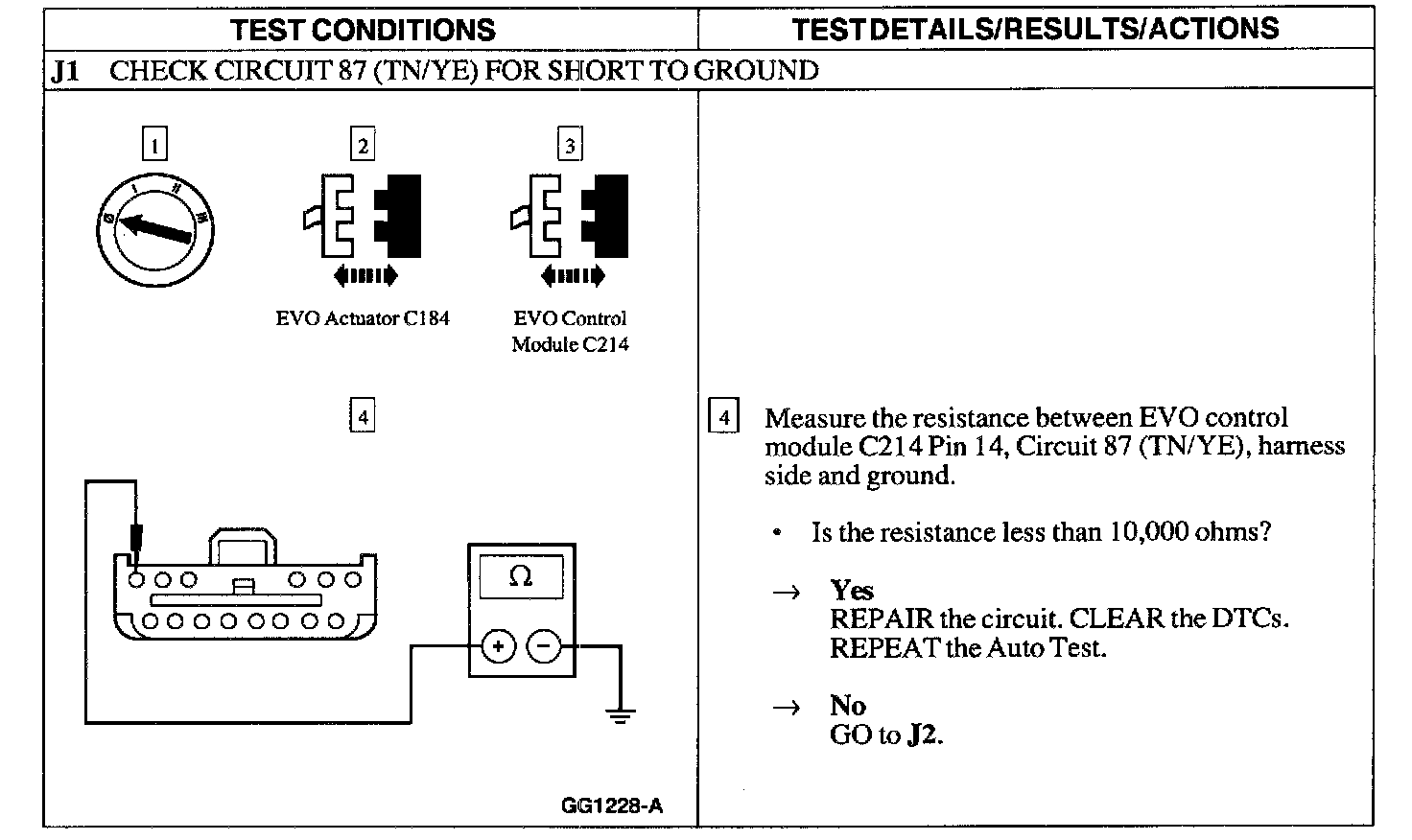

Test J1:




Test J2:
