FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Testing and Inspection
>>
Pinpoint Tests
>>
E: DTC16/17/18 EVO Actuator Shorted/Open/Resistance Concerns
E: DTC16/17/18 EVO Actuator Shorted/Open/Resistance Concerns

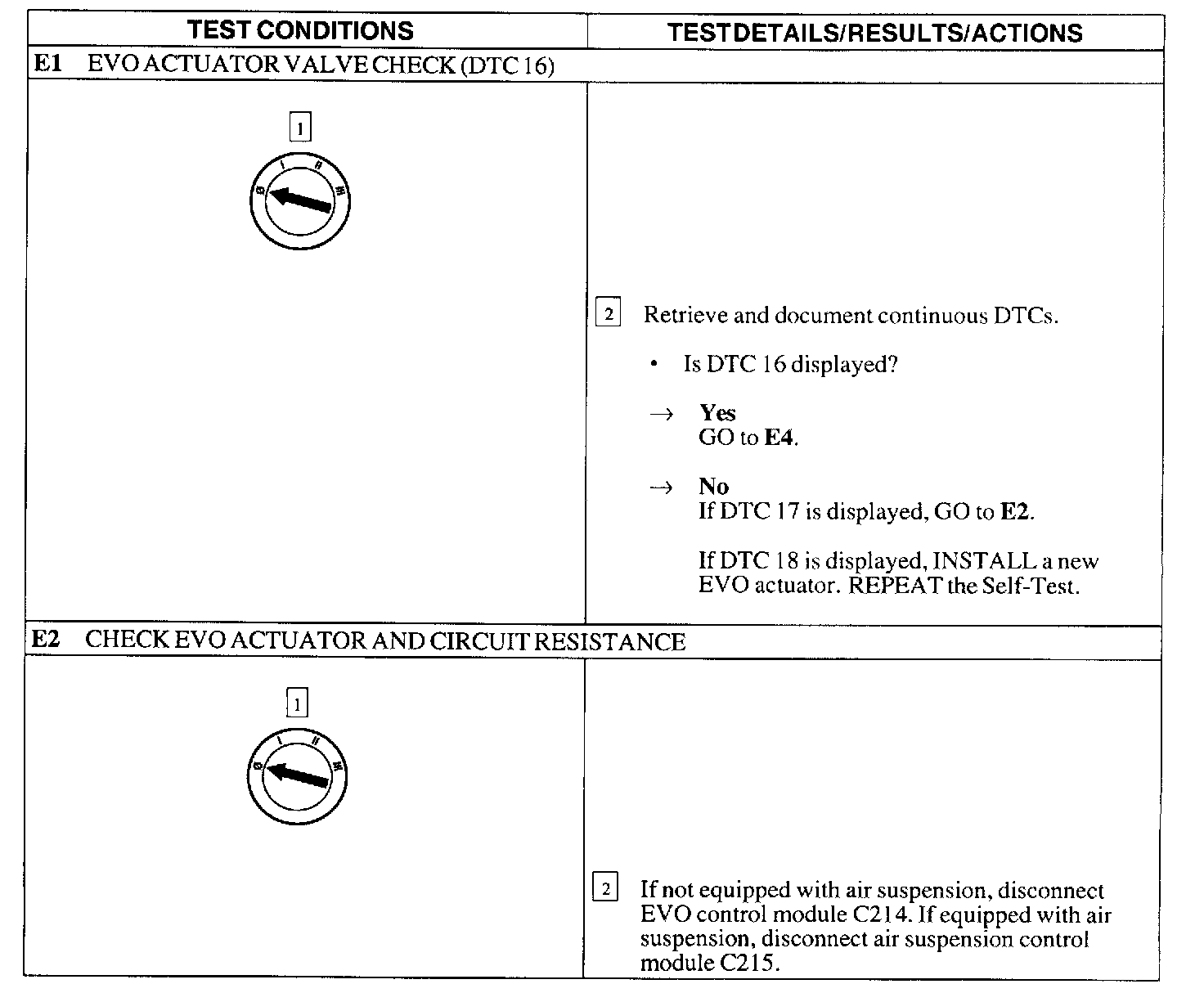

Test E1 - E2:

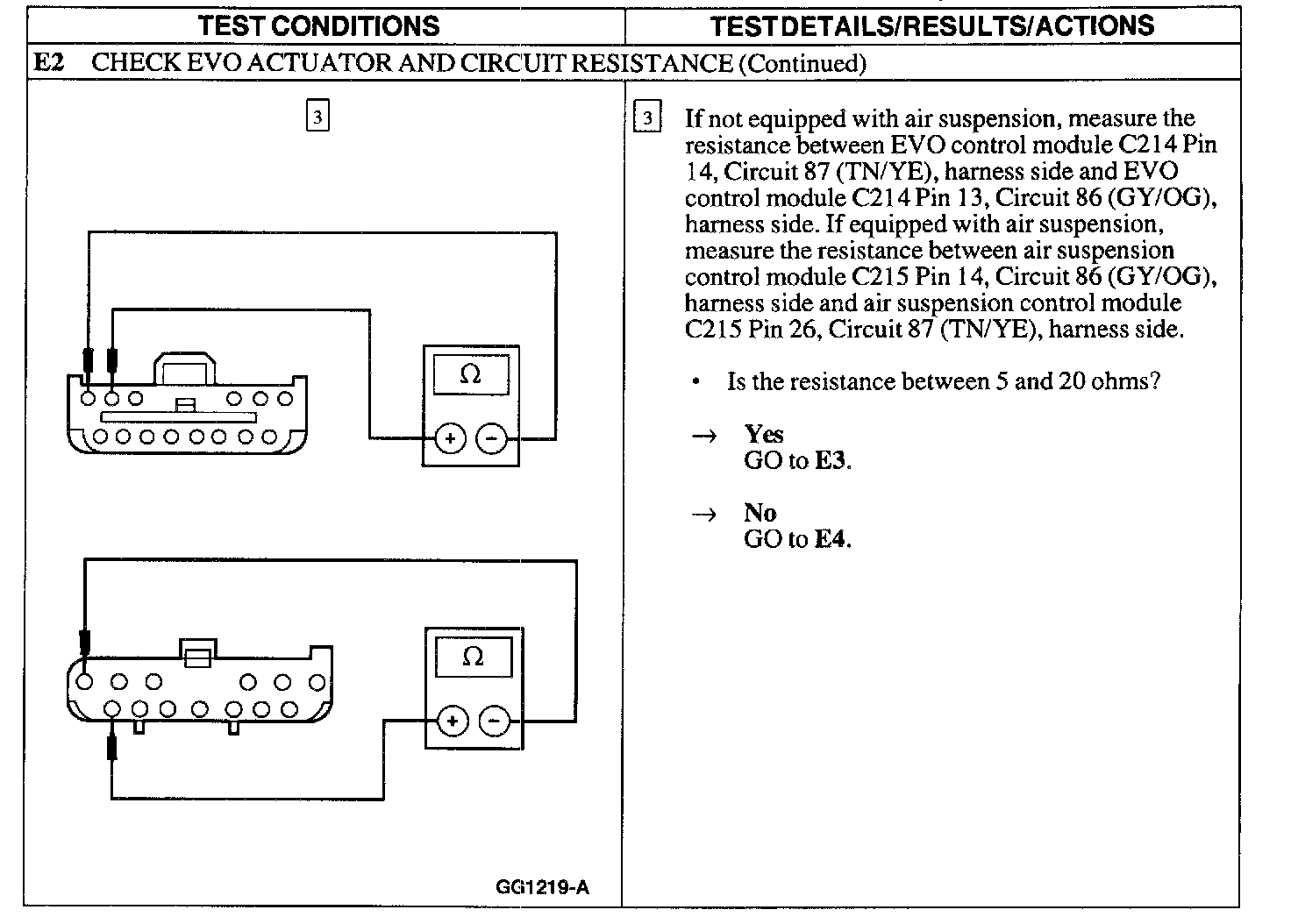

Test E2:

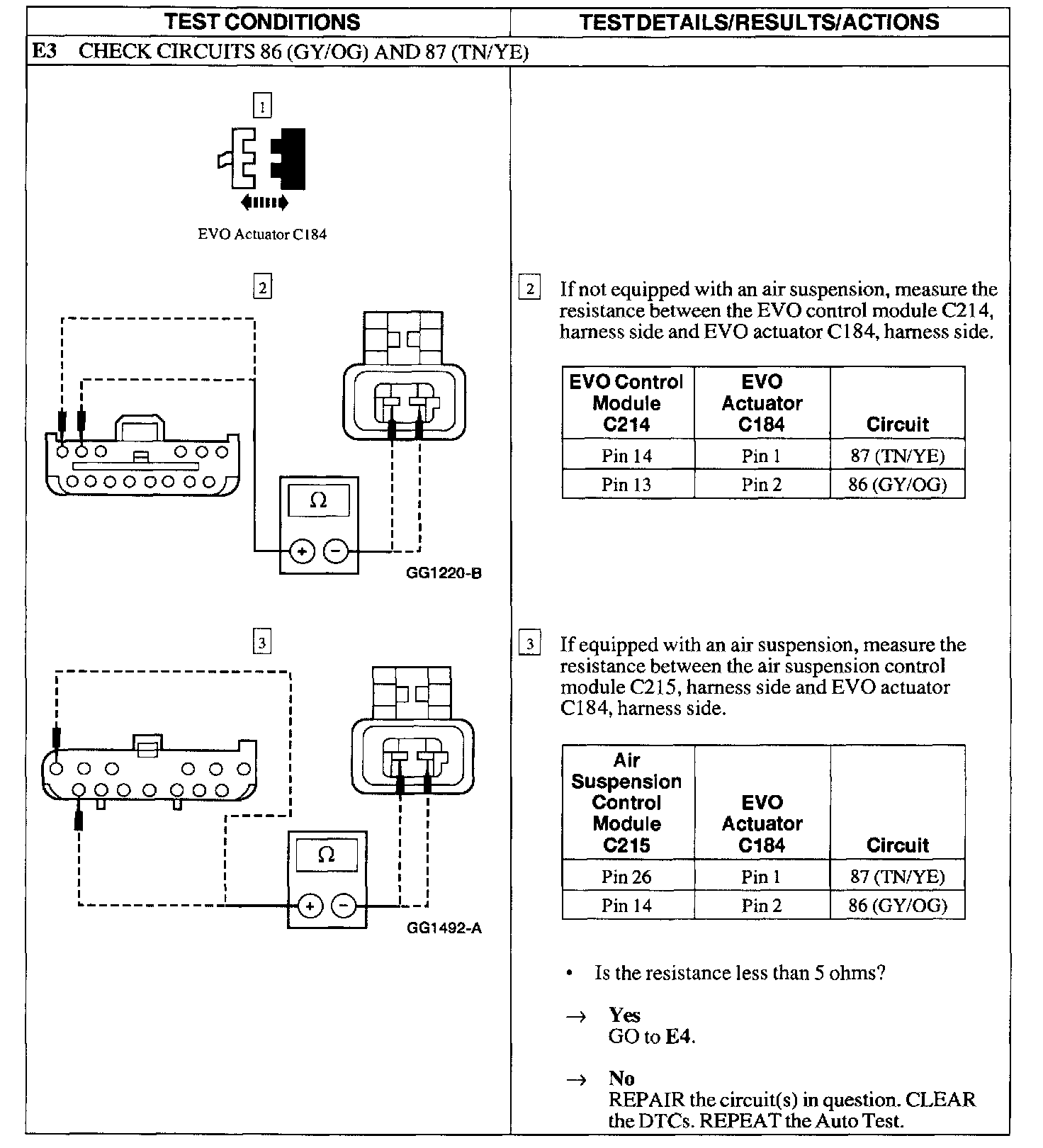

Test E3:

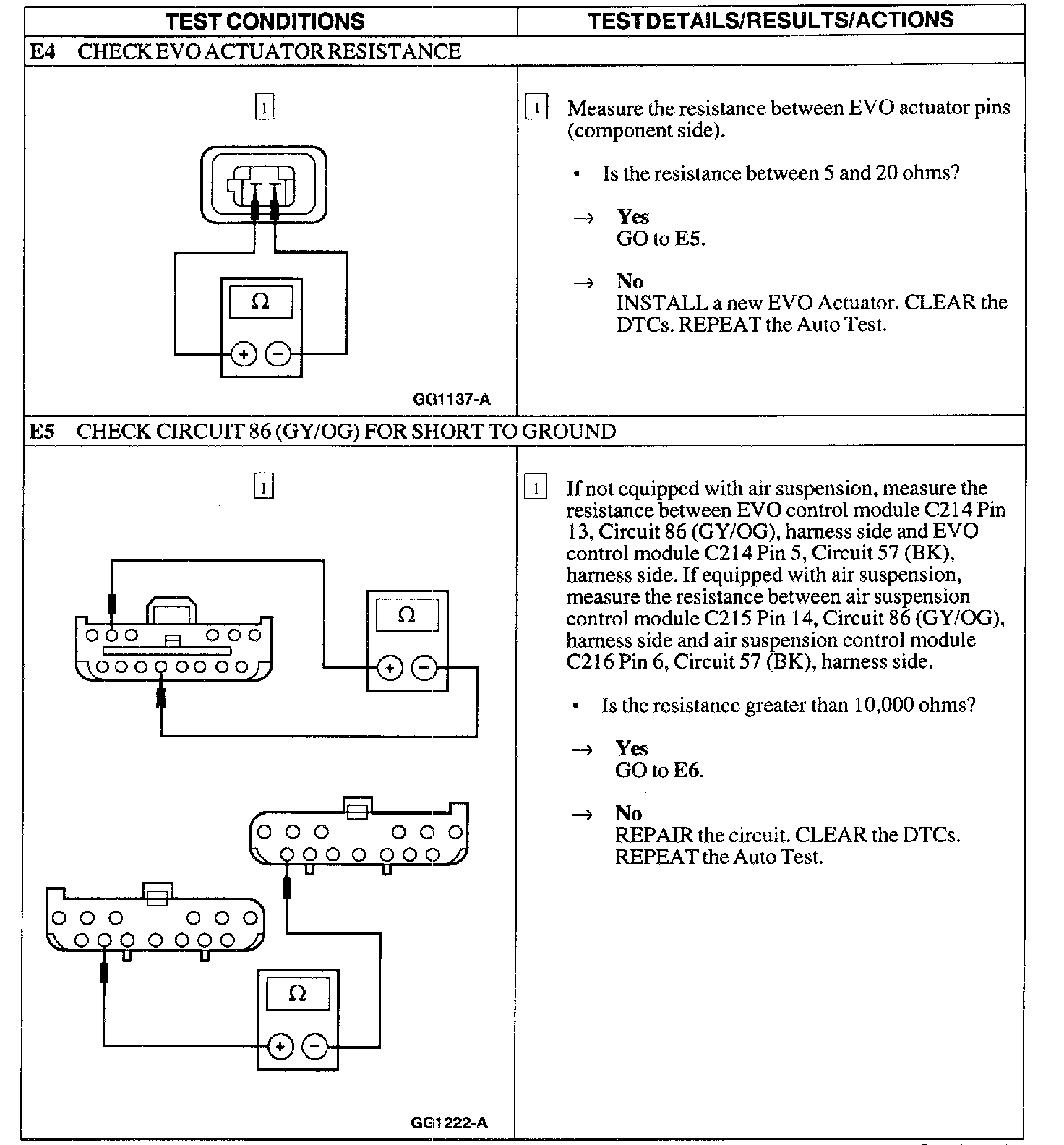

Test E4 - E5:

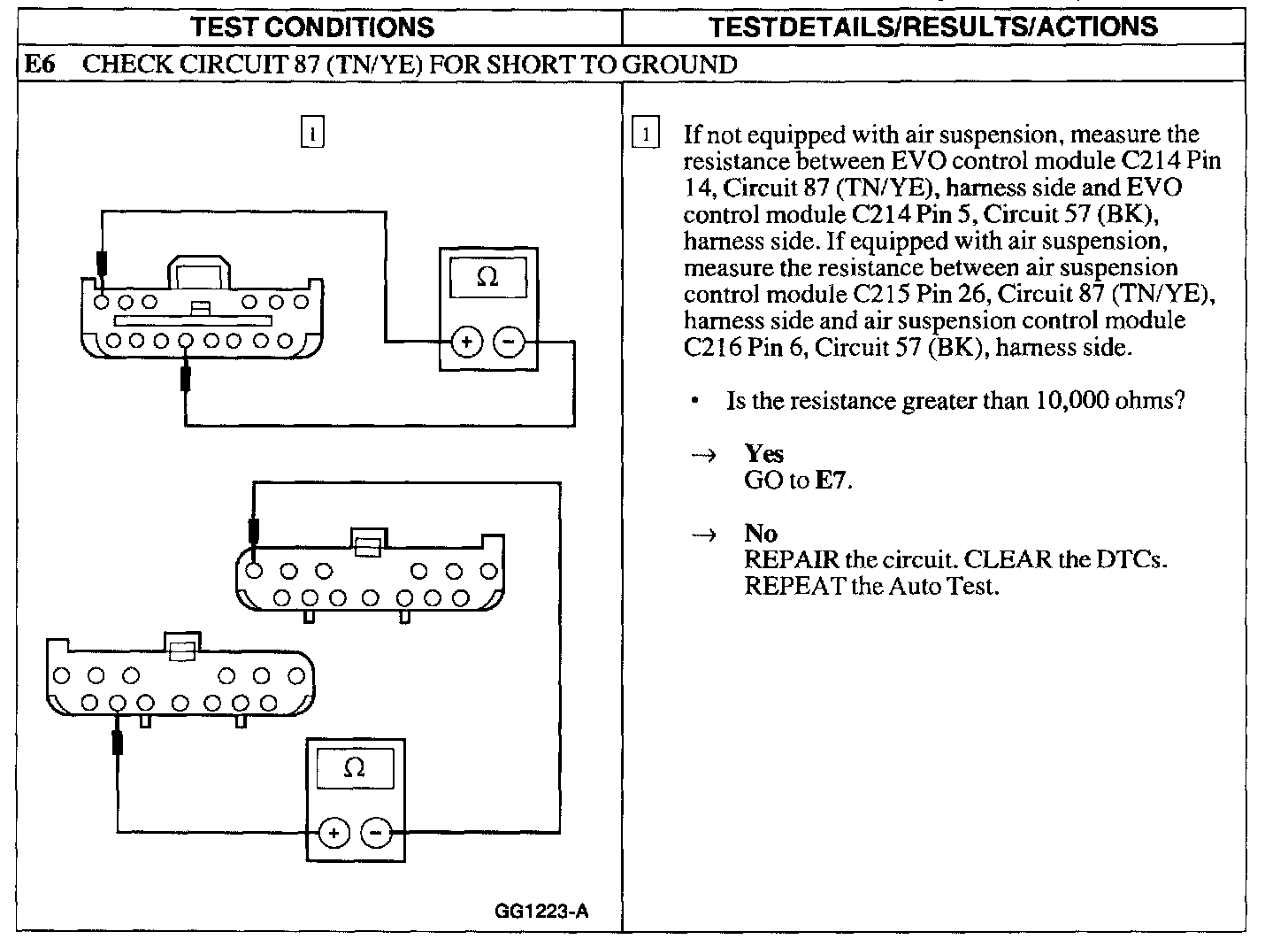

Test E6:

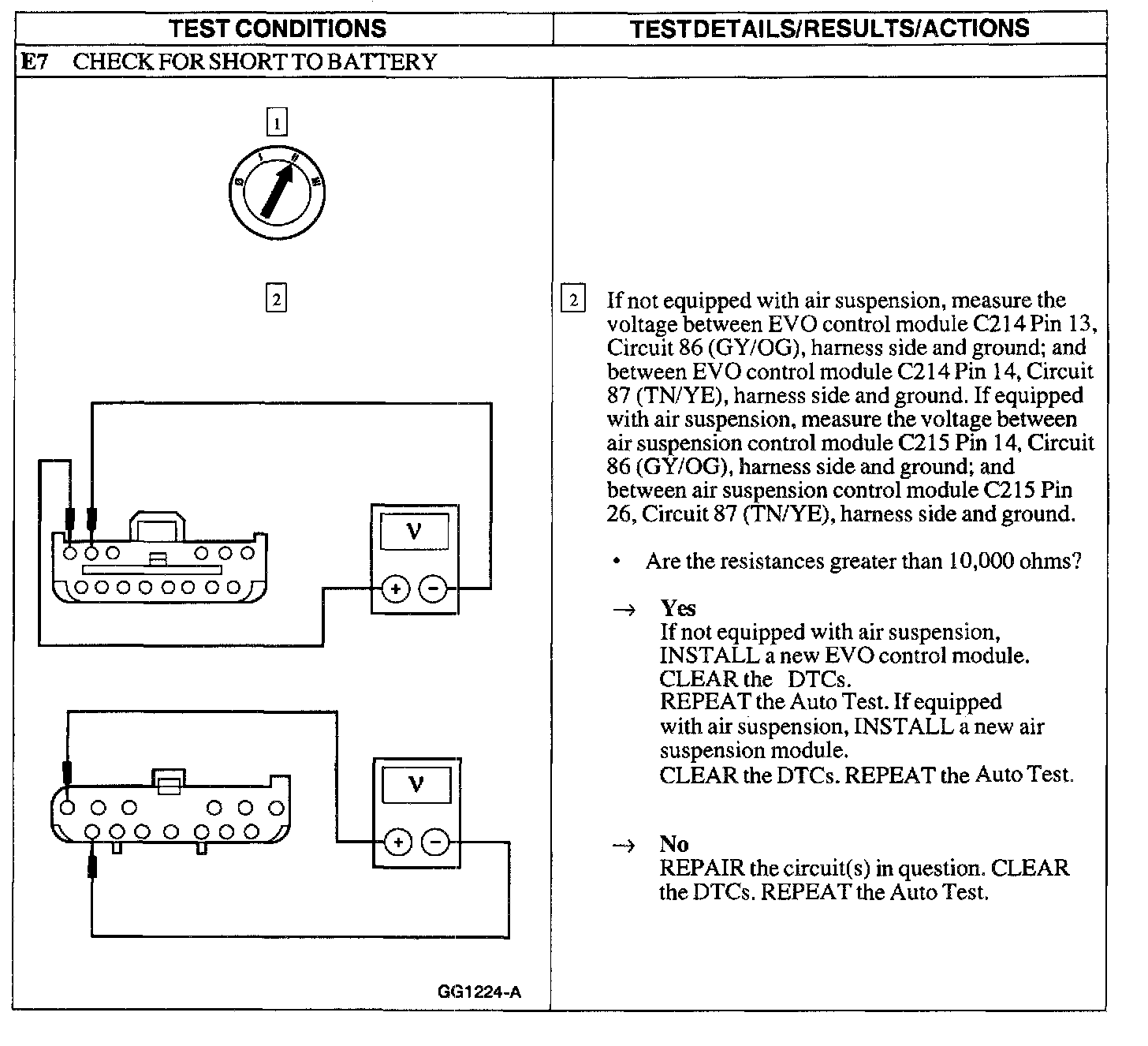

Test E7:
