B: No Communication With Air Suspension Control Module

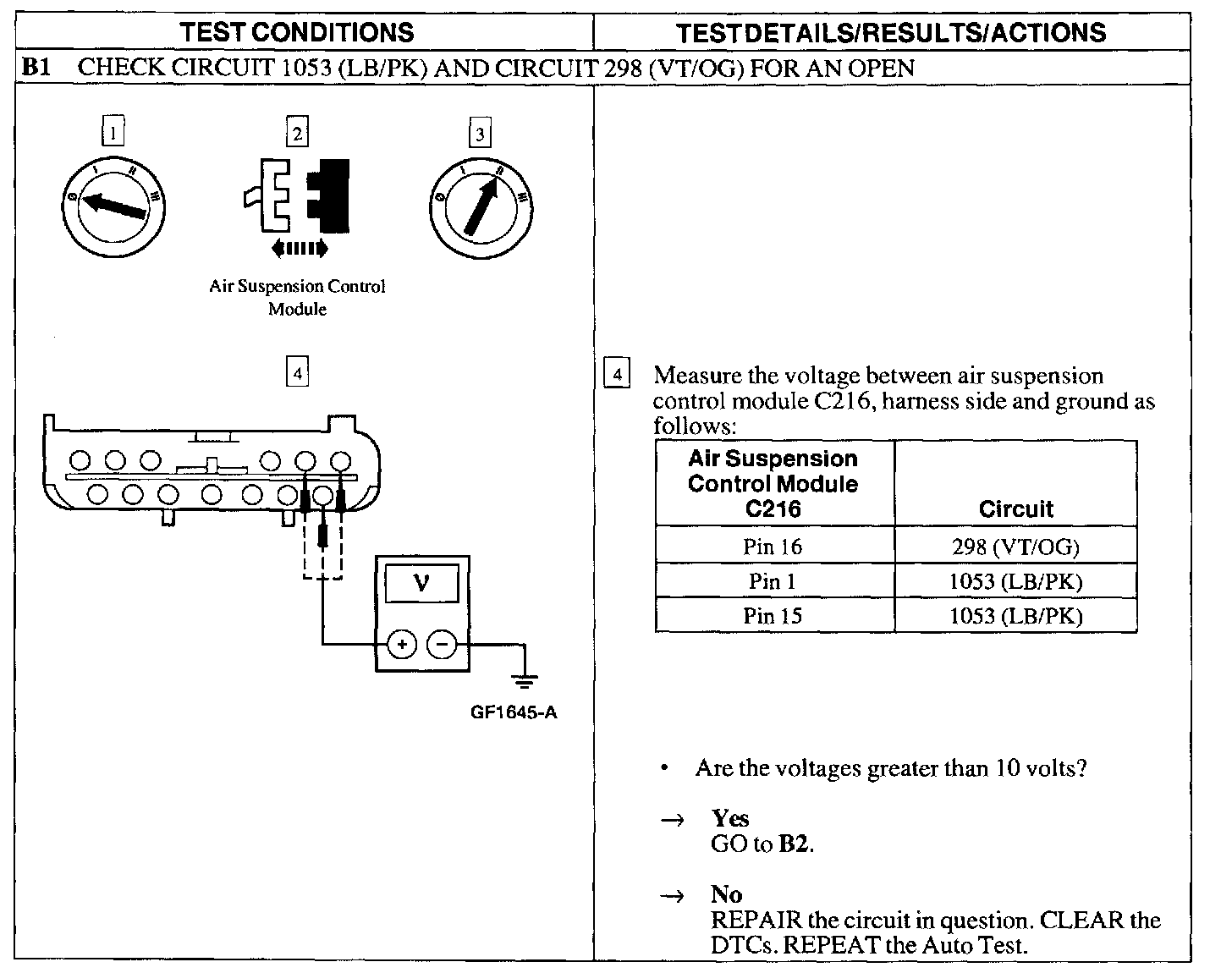

Test B1:

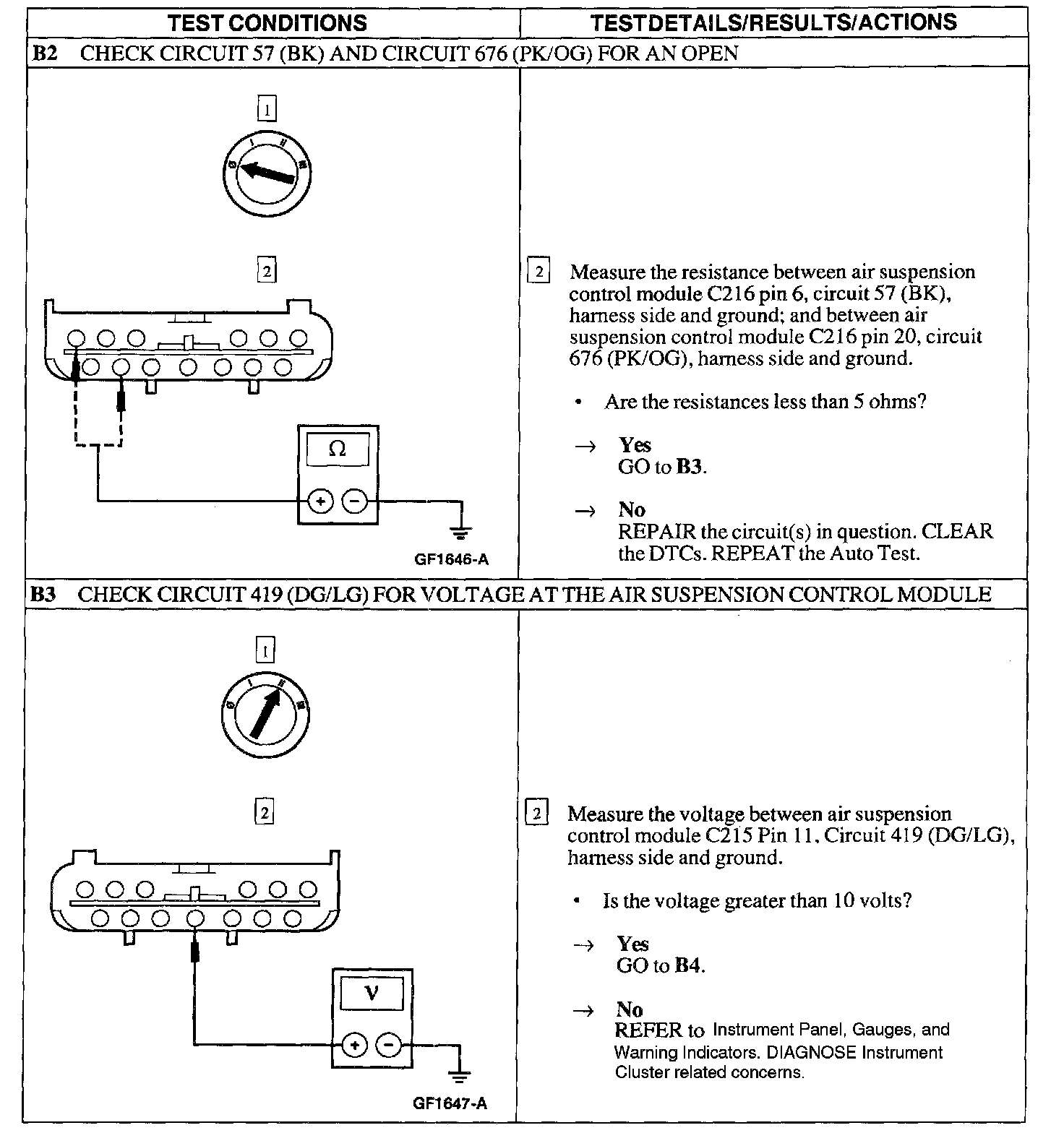

Test B2 - B3:

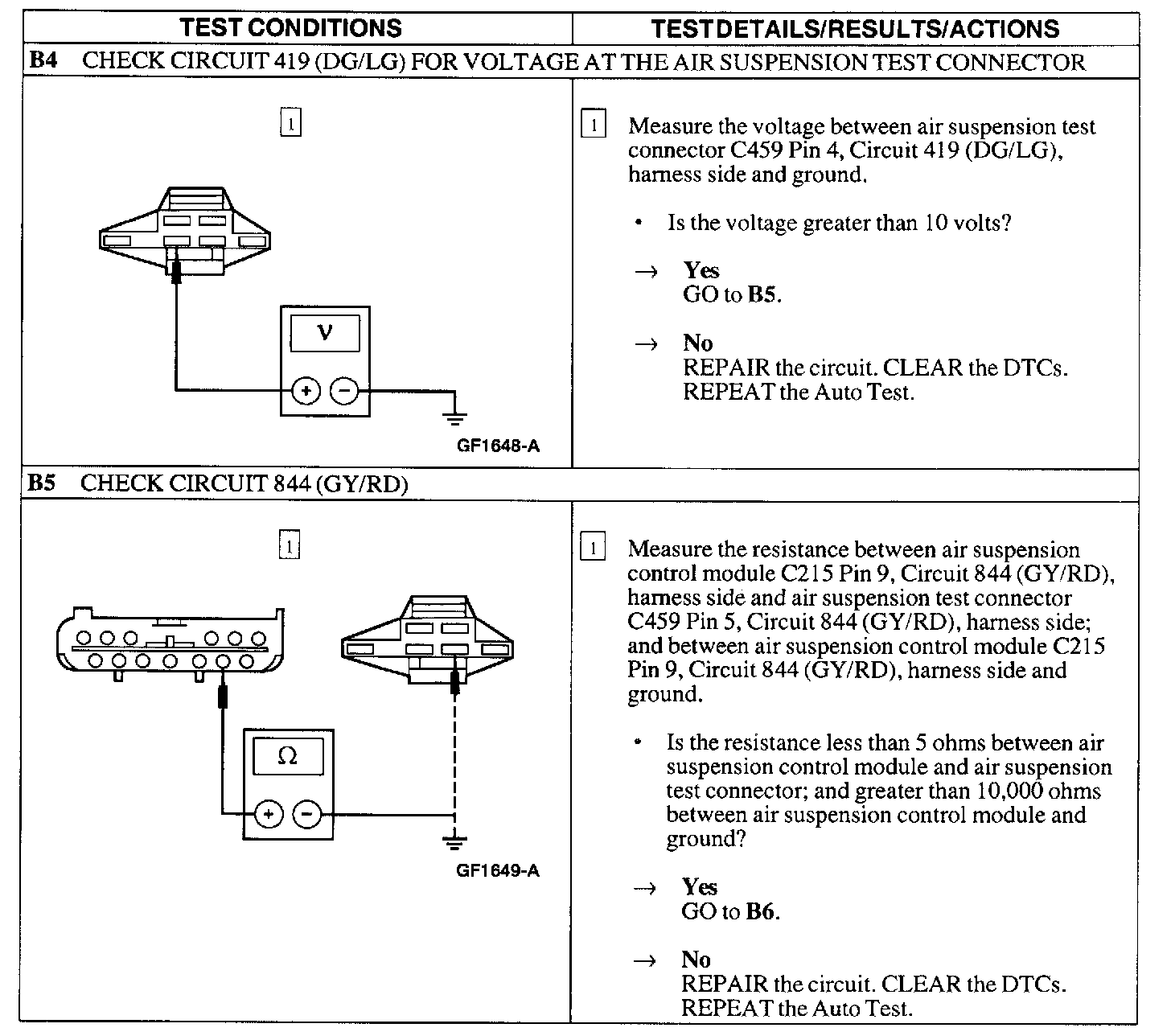

Test B4 - B5:

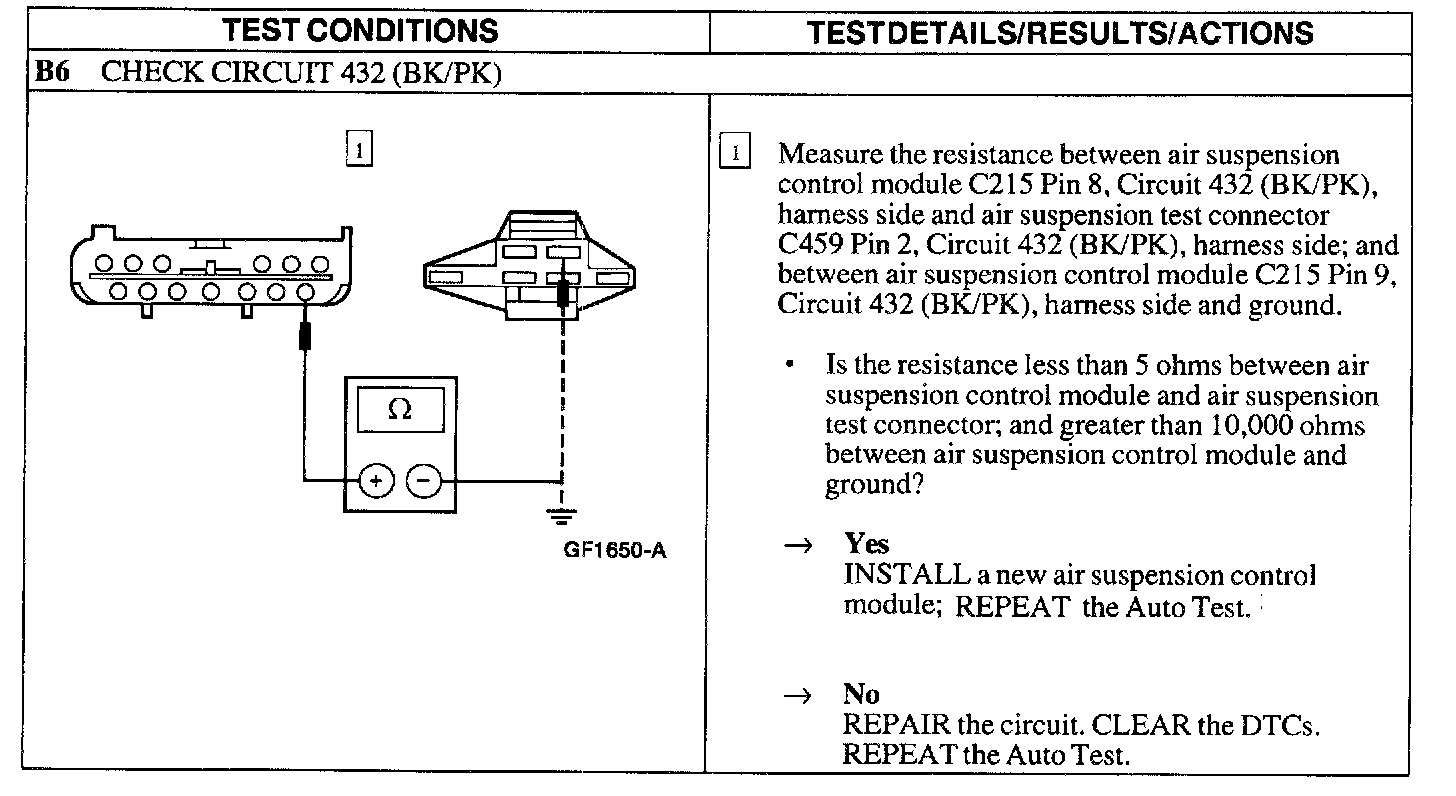

Test B6:
