Steering Angle Sensor: Service and Repair

Removal

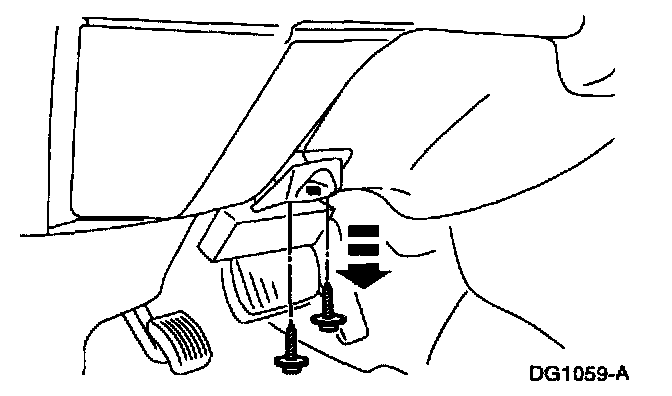

1. Remove the screws.

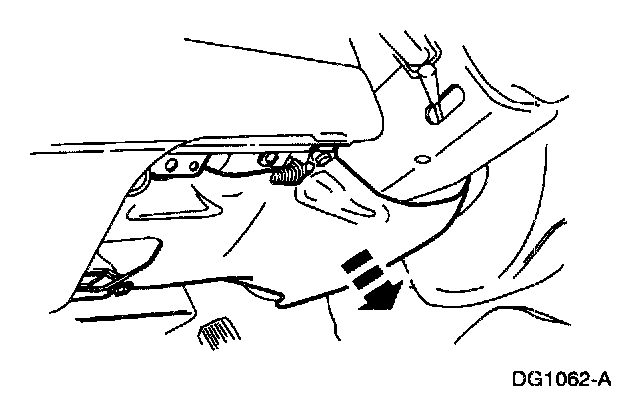

2. Remove the sound panel.

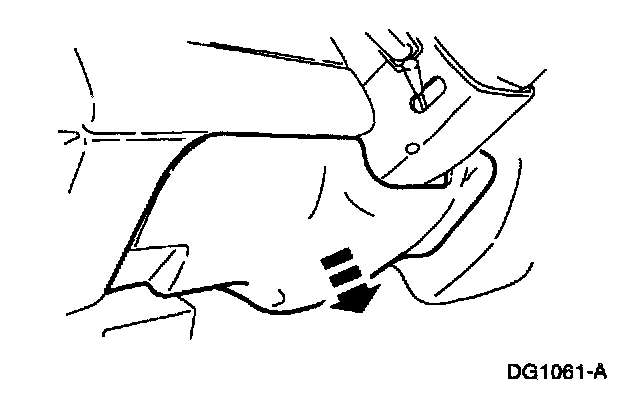

3. Remove the finish panel.





4. Remove the knee bolster.

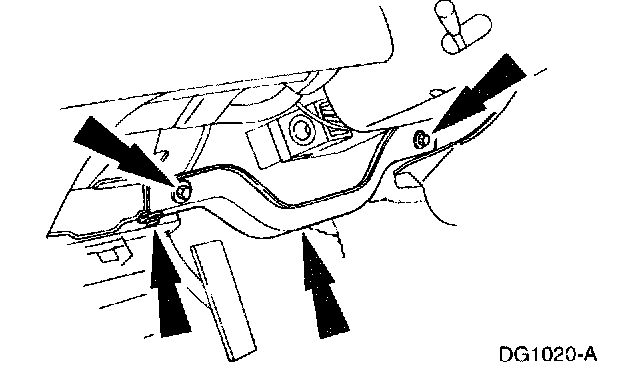

5. Remove the bracket.

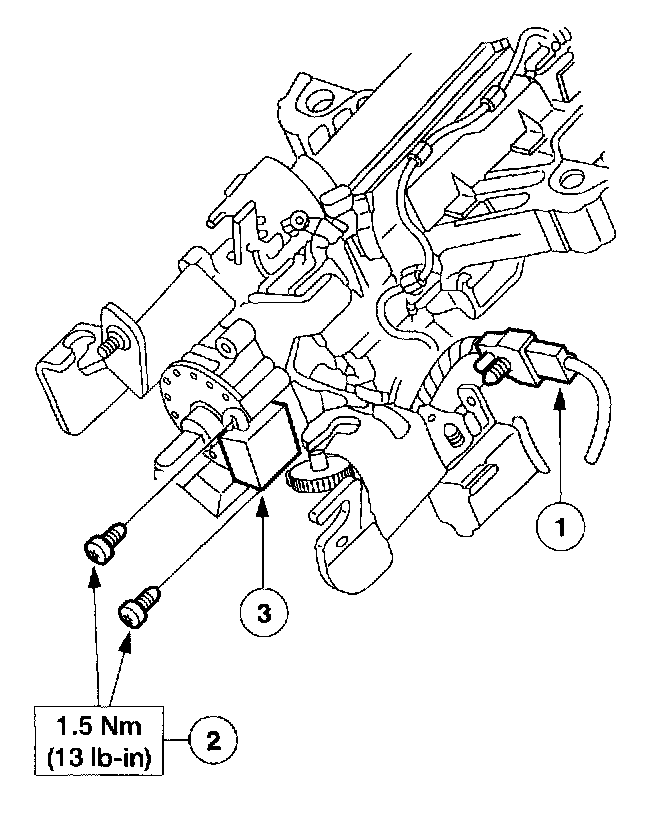

6. Remove the sensor.
1 Disconnect the wiring.
2 Remove the screws.
3 Remove the sensor.

Installation
1. Follow the removal procedure in reverse order.
