G: Multifunction Switch Does Not Operate Correctly
G: Multifunction Switch Does Not Operate Correctly

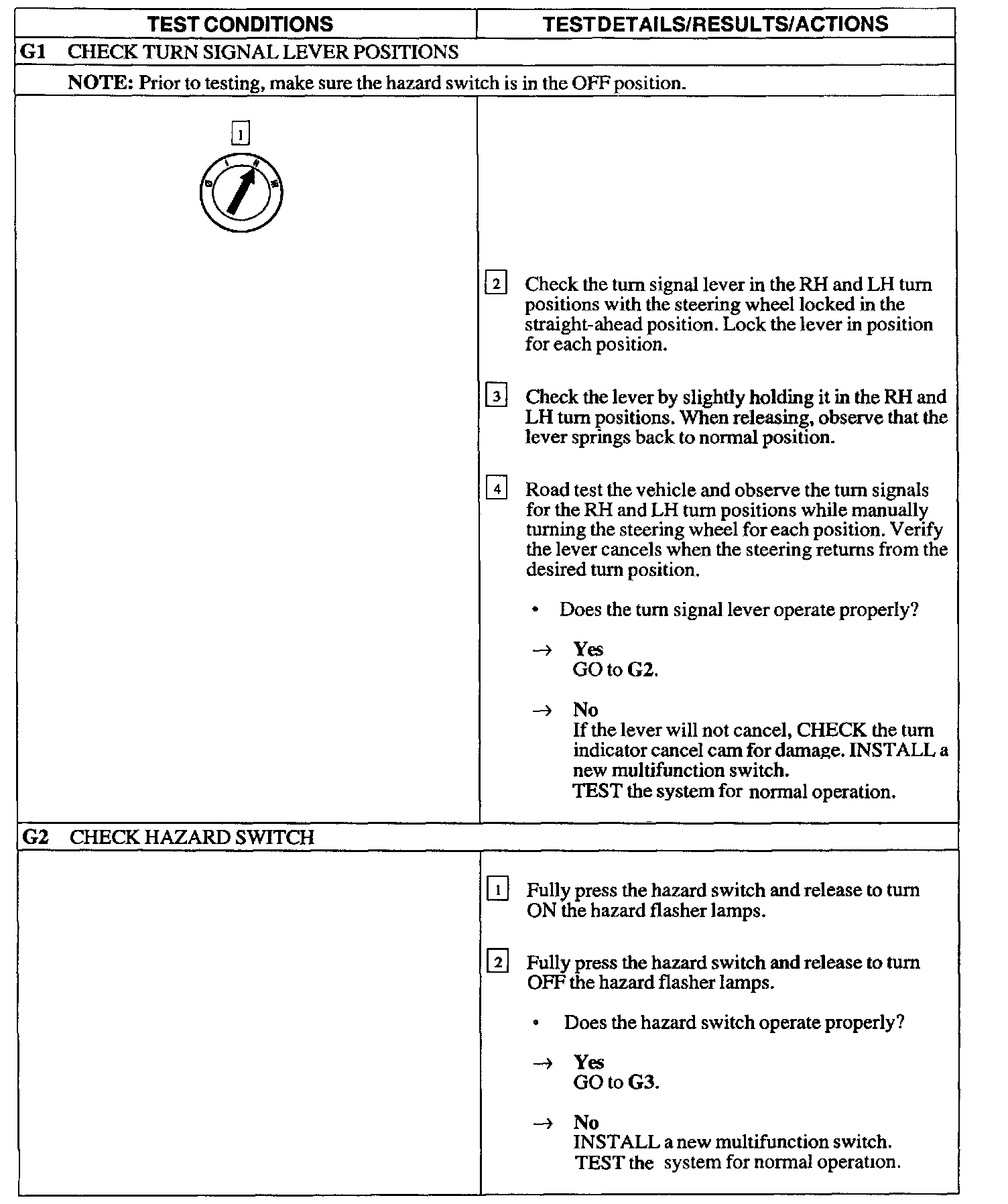

Test G1 - G2:

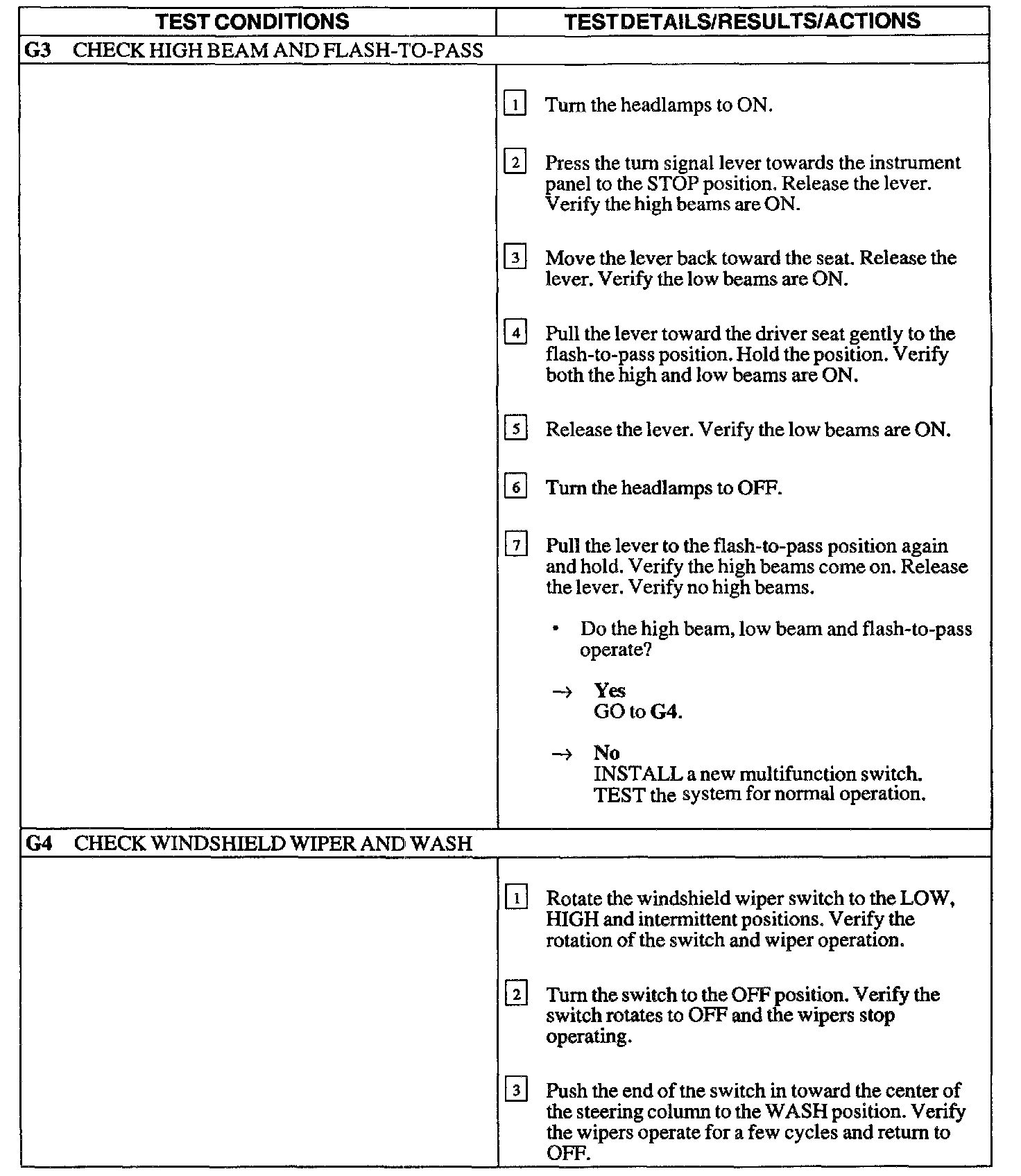

Test G3 - G4:

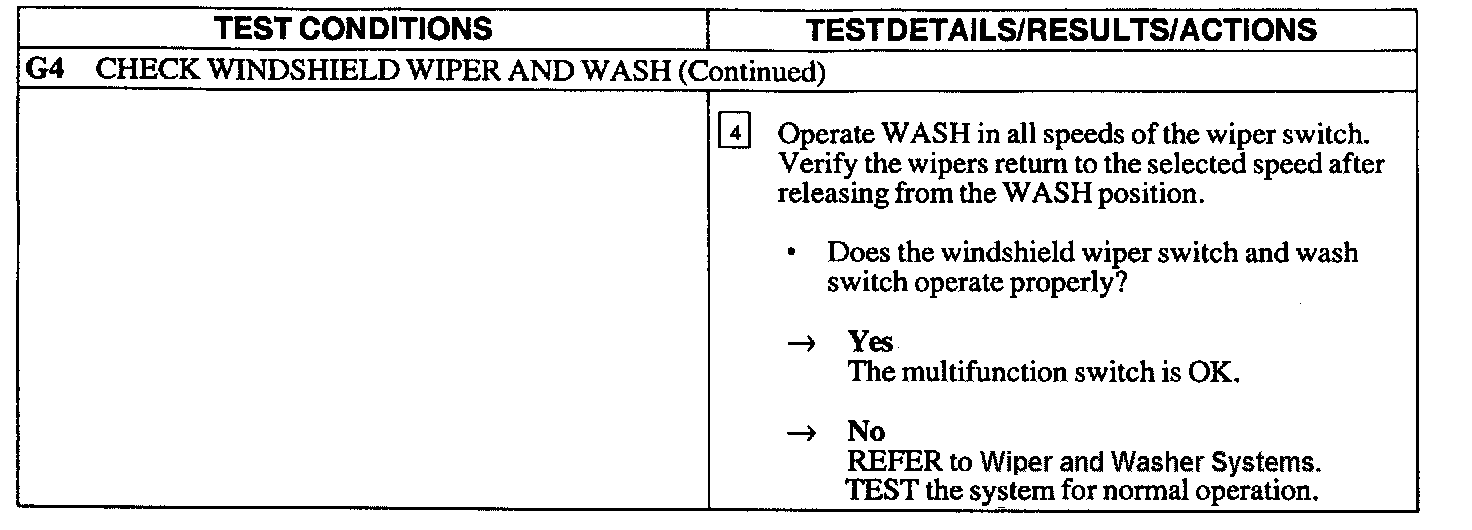

Test G4:
